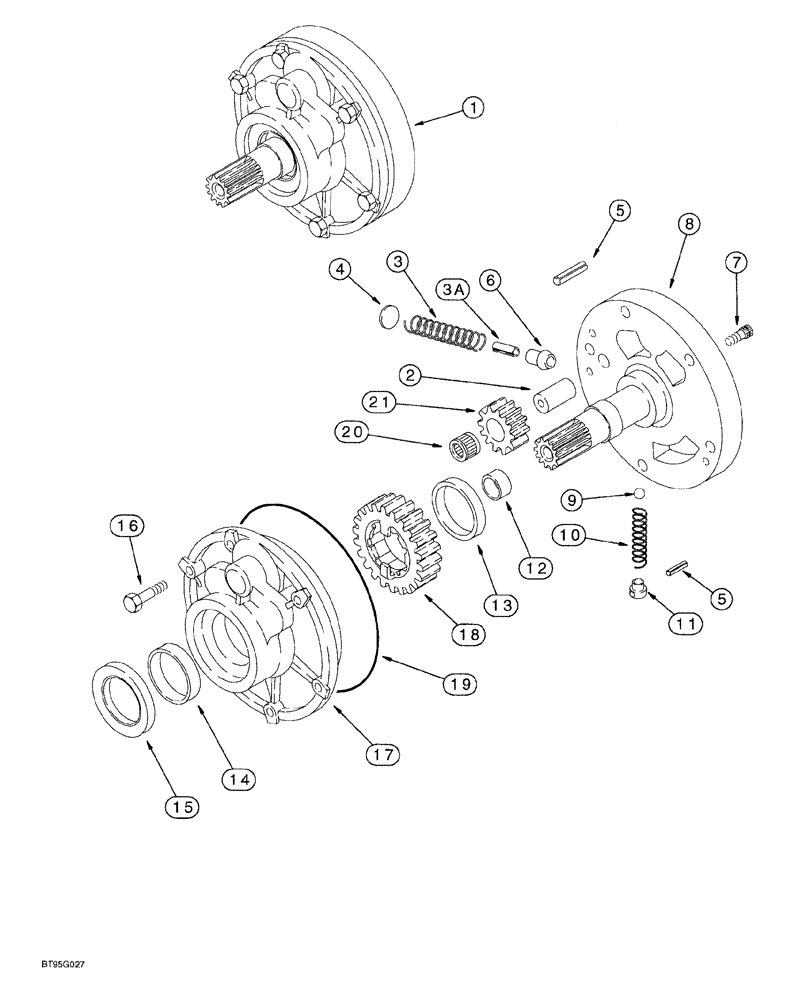

Запчасти Case 580SL (6-068) - CARRARO TRANSMISSION ASSEMBLY, OIL PUMP, 2 OR 4 WHEEL DRIVE, MODELS W/OUT POWERSHIFT TRANSMISSION (06) - POWER TRAIN

329076A1

TRANSMISSION

ASSEMBLY, two wheel drive, new, with integrated differential lock solenoid valve, See Figures 6-62 - 6-84, Includes: Refs. 1-21

1шт.

329079A3

TRANSMISSION

ASSEMBLY, four wheel drive, new, with integrated differential lock solenoid valve, See Figures 6-62 - 6-86, Includes: Refs. 1-21; Replaces 329079A1, 329079A2

1шт.

329079A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

329079A3C

CORE-TRANSMISSION

Return Part Number

1шт.

1

181199A4

PUMP

ASSEMBLY, oil, transmission, Carraro No. CA134725, Includes: Refs. 1-21

1шт.

1

181199A4R

REMAN-HYD PUMP

580SL Series 2, w/o Powershift

1шт.

1

181199A4C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

2

247744A1

SHAFT

small, not available for service, order P/N 181199A4 pump

1шт.

3

181270A1

SPRING

detent, not available for service, order P/N 181199A4 pump

1шт.

3a

NSS

NOT SOLD SEPARAT

PIN valve, order P/N 247749A1 piston valve kit below

1шт.

KIT piston valve, not available for service, order 181199A4 pump

1шт.

4

198713A1

WASHER

STOP spring, not available for service, order P/N 181199A4 pump

1шт.

5

181109A1

SPLIT PIN

roll, 5 x 22 mm , not available for service, order P/N 181199A4 pump

2шт.

6

NSS

NOT SOLD SEPARAT

VALVE piston, order P/N 247749A1 piston valve kit below

1шт.

KIT piston valve, not available for service, order 181199A4 pump

1шт.

7

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

Not available for service, Order P/N 181199A4 pump

2шт.

8

NSS

NOT SOLD SEPARAT

SUPPORT pump

1шт.

9

181145A1

BALL

check, not available for service, order P/N 181199A4 pump

1шт.

10

181214A1

SPRING

detent, not available for service, order P/N 181199A4 pump

1шт.

11

198712A1

SPLIT PIN/SAFETY PIN

GUIDE spring, not available for service, order P/N 181199A4 pump

1шт.

12

181215A1

BUSHING

pump support, small, not available for service, order P/N 181199A4

1шт.

13

247746A1

BUSHING

pump support, large, not available for service, order P/N 181199A4 pump

1шт.

14

181216A1

BUSHING

pump housing

1шт.

15

181205A1

OIL SEAL

pump housing

1шт.

16

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

6шт.

17

NSS

NOT SOLD SEPARAT

HOUSING oil pump

1шт.

18

247748A1

PINION

GEAR, 23 teeth, charge pump, large, not available for service, order P/N 181199A4 pump

1шт.

19

181142A1

O-RING,2.5mm Thk x 183mm ID, 70 Duro

pump housing

1шт.

20

246767A1

BEARING, NEEDLE

not available for service, order P/N 181199A4 pump

1шт.

21

181218A1

PINION

GEAR small,12 teeth, not available for service, order P/N 181199A4 pump

1шт.

247749A1

SPARE PART SET

KIT piston valve, not available for service, order P/N 181199A4 pump

1шт.
