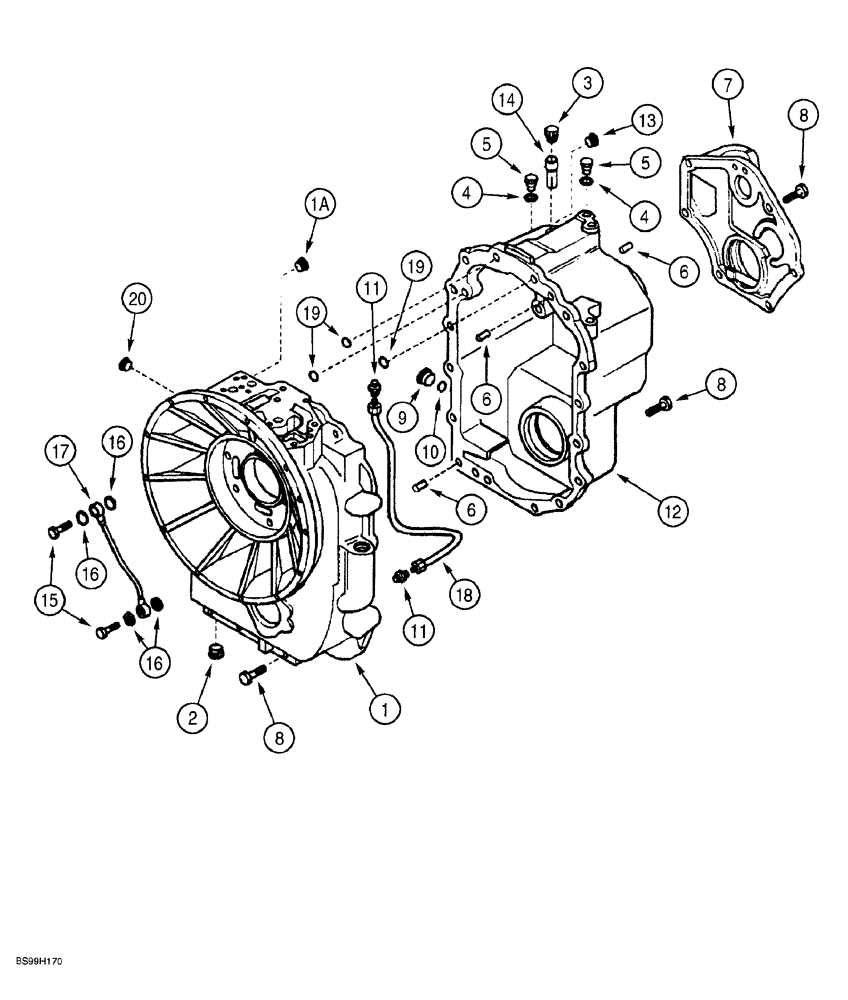

Запчасти Case 580SL (6-066) - CARRARO TRANSMISSION ASSEMBLY, TRANS HOUSING, 4 WHEEL DRIVE, MODELS WITHOUT POWERSHIFT TRANSMISSION (06) - POWER TRAIN

329079A3

TRANSMISSION

ASSEMBLY, four wheel drive, new, with integrated differential lock solenoid valve, parts list Figs. 6-62 - 6-86, Includes: Refs. 1-20; Replaces 329079A1, 329079A2

1шт.

329079A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

329079A3C

CORE-TRANSMISSION

Return Part Number

1шт.

1

310766A1

HOUSING

front half, use with Loctite 510 or 518 as a gasket eliminator, Includes: Ref. 1A

1шт.

1a

E135809

PLUG

housing

1шт.

2

239606A1

PLUG

housing, oil passage port

1шт.

3

1530028C1

BREATHER

Housing

1шт.

310772A1

VENTILATION PIPE,18 mm OD, 42 mm Length

Oil, Breather, 18 OD x 42 mm long, Not shown

1шт.

4

934667R1

SEALING RING,M10 x 14 x 1

Special

3шт.

5

181100A1

PLUG,1/8 CAS x 8

housing

3шт.

6

K260177

PIN

dowel, special, 10 x 25 mm

3шт.

7

181197A1

COVER

housing, rear half, use with Superbond 539 as a gasket elimmator

1шт.

8

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

23шт.

9

100557A1

PLUG, DRAIN,M30 x 2

Includes: Ref. 10

1шт.

10

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

11

218-1023

HYD CONNECTOR,1/2"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER straight, 1/2-20 flare x 1/4 inch PT

2шт.

12

310765A1

HOUSING

rear half, use with Superbond 539 as a gasket eliminator, Includes: Refs. 13 & 14

1шт.

13

E135809

PLUG

housing, if used

1шт.

14

310772A1

VENTILATION PIPE,18 mm OD, 42 mm Length

Oil, Breather, 18 OD x 42 mm long

1шт.

15

181179A1

BANJO BOLT

Hex, Special

2шт.

16

181105A1

SEALING WASHER,14mm ID x 20mm OD x 1.5mm Thk

flat, special, 14 x 20 x 1.5 mm

4шт.

17

181232A1

TUBE

TUBE oil lubrication

1шт.

18

181176A1

TUBE

TUBE oil

1шт.

19

181141A1

O-RING,17.12mm ID x 2.62mm Width

housing

3шт.

20

181101A1

PLUG,M14 x 1.5

M14 x 1.5

1шт.
