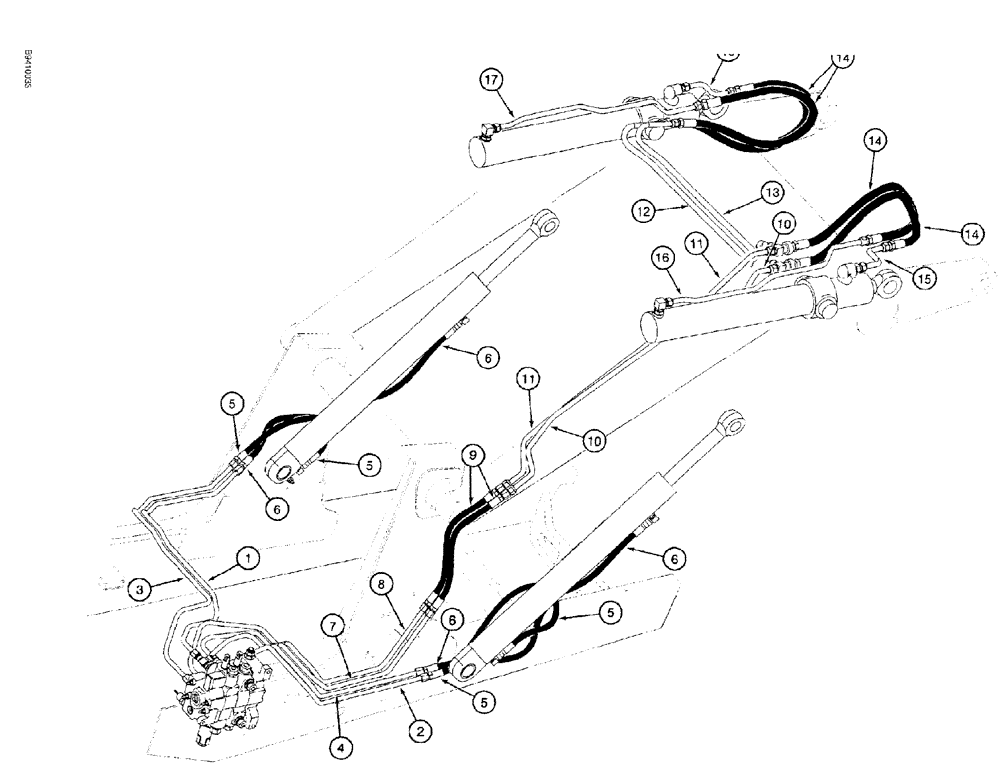

Запчасти Case 580SL (1-014) - PICTORIAL INDEX LOADER HYDRAULICS LIFT & BUCKET CYLINDERS (00) - PICTORIAL INDEX

1

Tube from upper lift port of loader control valve to rod end of left-hand lift cylinder, see Figure 8-010

1шт.

2

Tube from lower lift port of loader control valve to closed end of right-hand lift cylinder, see Figure 8-010

1шт.

3

Tube from lower lift port of loader control valve to closed end of left-hand lift cylinder, see Figure 8-010

1шт.

4

Tube from upper lift port of loader control valve to rod end of right-hand lift cylinder, see Figure 8-010

1шт.

5

Hoses at lift cylinder closed end, see Figure 8-010

1шт.

6

Hose at upper port of control valve to lift cylinder rod end, see Figure 8-010

1шт.

7

Tube at bucket section upper port, see Figure 8-012

1шт.

8

Tube at bucket section lower port, see Figure 8-012

1шт.

9

Hose at loader arm pivot, see Figure 8-012

1шт.

10

Lower tube on right-hand lift arm from bucket section upper port to closed end of bucket cylinders, see Figure 8-012

1шт.

11

Upper tube on right-hand lift arm from bucket section lower port to bucket cylinder rod end, see Figure 8-012

1шт.

12

Rear crossover tube at upper lift frame tube to rod end of bucket cylinder, see Figure 8-012

1шт.

13

Front crossover tube at lower lift frame tube to bucket cylinder closed end, see Figure 8-012

1шт.

14

Hose at bucket cylinders, see Figure 8-012

1шт.

15

Tube at bucket cylinder rod end, see Figure 8-012

1шт.

16

Tube to right-hand bucket cylinder closed end, see Figure 8-012

1шт.

17

Tube at left-hand bucket cylinder closed end, see Figure 8-012

1шт.
