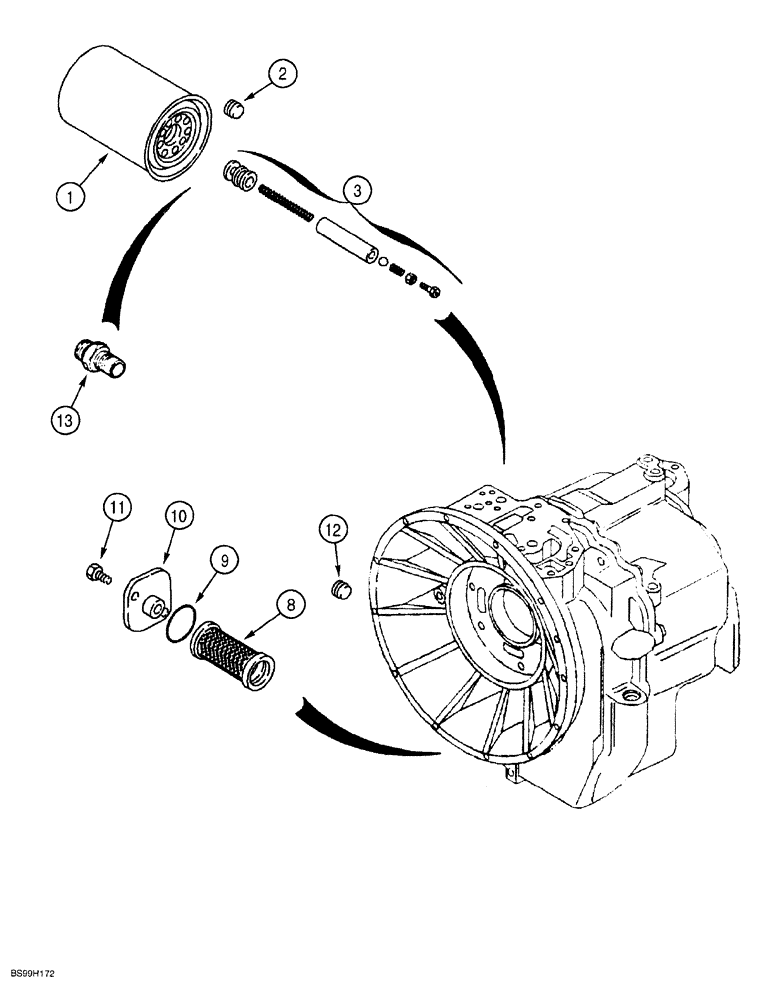

Запчасти Case 580SL (6-062) - CARRARO TRANSMISSION ASSY, OIL FILTERS, 2 AND 4 WHEEL DRIVE, MODELS WITHOUT POWERSHIFT TRANSMISSION (06) - POWER TRAIN

329076A1

TRANSMISSION

ASSY, two wheel drive, new, with integrated differential lock solenoid valve, parts list Figs. 6-62 - 6-84, Includes: Refs. 1-13

1шт.

329079A3

TRANSMISSION

ASSY, four wheel drive, new, with integrated differential lock solenoid valve, parts list Figs. 6-62 - 6-86, Includes: Refs. 1-13; Replaces 329079A1, 329079A2

1шт.

329079A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

329079A3C

CORE-TRANSMISSION

Return Part Number

1шт.

1

254686A2

FILTER,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

cartridge, transmission, 152 mm (6 inch) long; Replaces 254686A1

1шт.

2

181101A1

PLUG,M14 x 1.5

oil, 14-15 mm, used on four wheel drive models only

1шт.

3

181274A1

REPAIR KIT

KIT valve, used on four wheel drive models only

1шт.

8

278534A1

FILTER SCREEN

oil

1шт.

9

100748A1

O-RING,1.421" ID x 1.699" OD x 0.139"

sealing

1шт.

10

181219A1

COVER

access, oil filter

1шт.

11

614-8018

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

BOLT hex, full threads, 8 - 1.25 x 18 mm

2шт.

12

181102A1

PLUG

oil, used on four wheel drive models only

1шт.

13

181202A1

FITTING

CONNECTOR straight

1шт.
