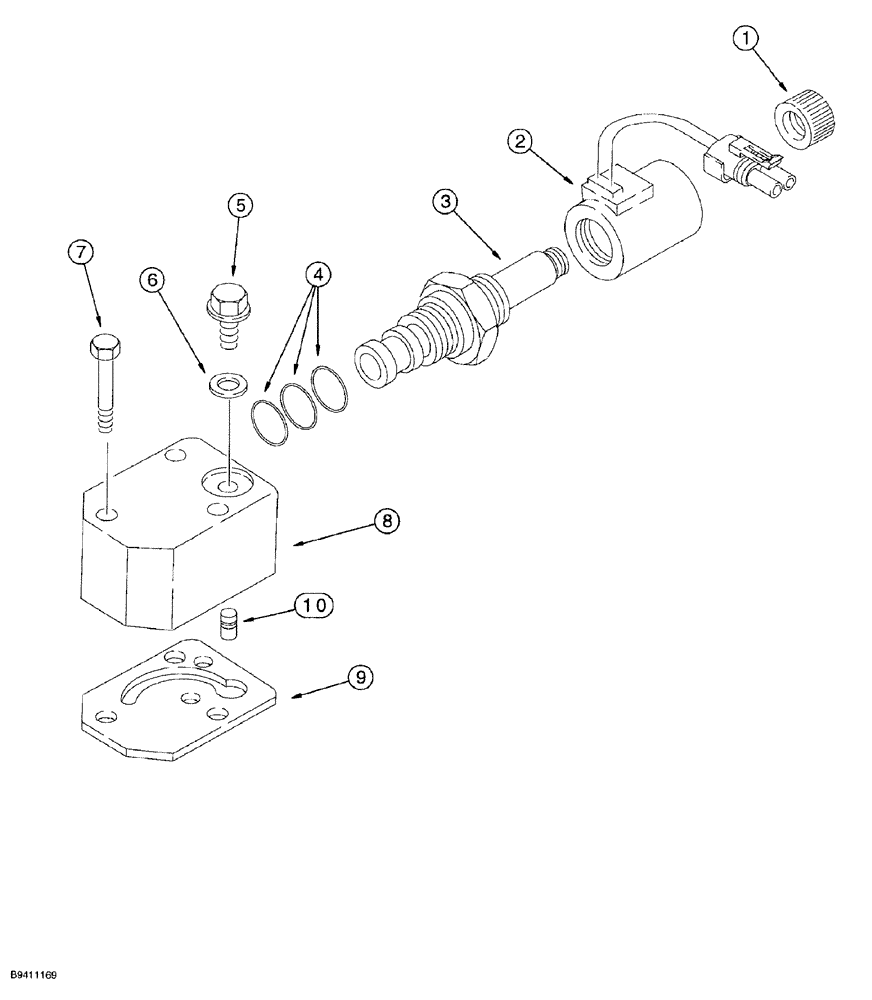

Запчасти Case 580SL (6-060) - CARRARO TRANS ASSY, SOLENOID VALVE, 4 WHEEL DRIVE, MODELS WITHOUT POWERSHIFT TRANSMISSION (06) - POWER TRAIN

123843A3

TRANSMISSION

ASSY., 4WD, new, w/integrated diff. lock solenoid valve, Includes: Ref. 1-10, See Figure 6-34 - 6-60; replaces P/N123843A3 which used the chassis mounted diff. lock solenoid valve, See Figure 6-156; no longer available, order 329079A1, See Figs. 6-62-6-86

1шт.

See Figure 6-34 for further explanation when replacing an A2 transmission with an A3 transmission

1шт.

123843A3R

REMAN-TRANSMISSION

580SL Series-2, 4 WD, Without Powershift Transmission

1шт.

123843A3C

CORE-TRANSMISSION

Return Number

1шт.

190432A1

SOLENOID

VALVE ASSEMBLY, Includes: Refs. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

NUT cap

1шт.

2

NSS

NOT SOLD SEPARAT

COIL solenoid

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE solenoid

1шт.

4

181149A1

SEAL PACKAGE

KIT, solenoid, includes (1 each) P/N's 238-5014, 238-5015 and 237-6010 O-ring, not available for service, order 190432A1

1шт.

5

181100A1

PLUG,1/8 CAS x 8

valve

2шт.

6

934667R1

SEALING RING,M10 x 14 x 1

Special

2шт.

7

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

3шт.

8

190429A1

HOUSING

BODY solenoid valve

1шт.

9

190430A1

GASKET

GASKET body to transmission housing

1шт.

10

190431A1

VALVE

solenoid, installed between Ref. 8 and Ref. 9

1шт.
