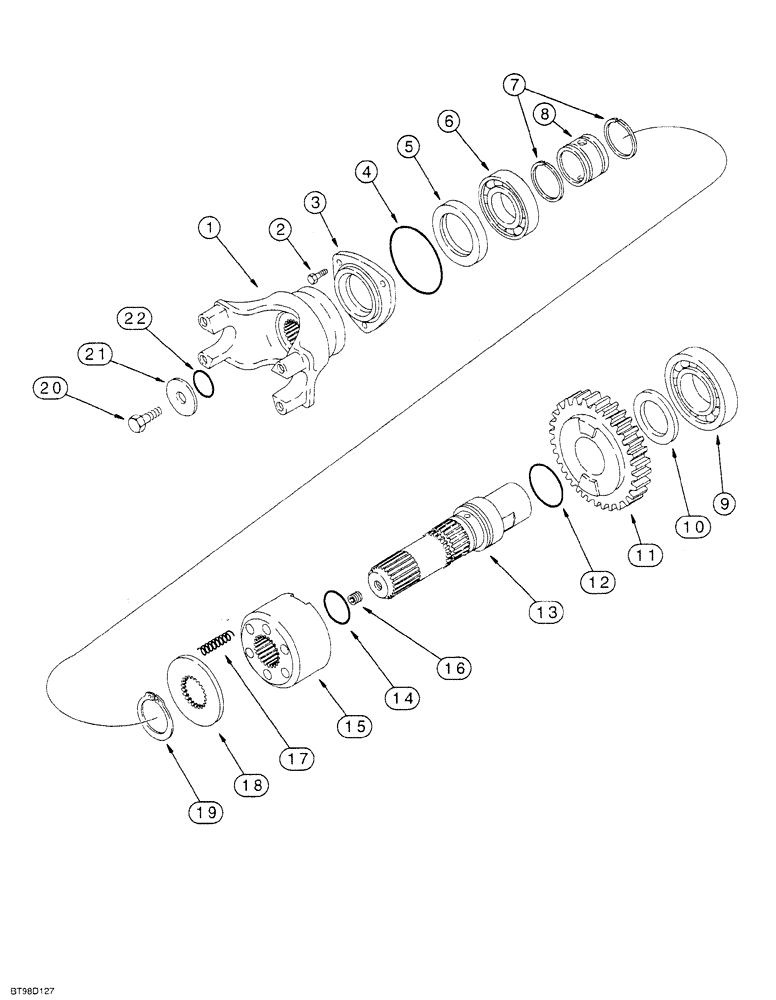

Запчасти Case 580SL (6-054) - CARRARO TRANSMISSION ASSEMBLY, 4 WHEEL DRIVE OUTPUT SHAFT, MODEL WITHOUT POWERSHAFT TRANSMISSION (06) - POWER TRAIN

123843A3

TRANSMISSION

ASSY, 4WD, new, w/integrated differential lock solenoid valve, Includes: Ref. 1-22,see Figs. 6-34-6-60; replaces 123843A2 which used the chassis mounted differential lock solenoid valve, see Fig 6-156,no longer available, order 329079A1, see fig 6-62-6-86

1шт.

See Fig. 6-34 for further explanation when replacing an A2 transmission with an A3 transmission

1шт.

123843A3R

REMAN-TRANSMISSION

580SL Series-2, 4 WD, Without Powershift Transmission

1шт.

123843A3C

CORE-TRANSMISSION

Return Number

1шт.

1

233283A1

YOKE

YOKE shaft, front

1шт.

2

614-8022

BOLT,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

3шт.

3

181198A1

COVER

front

1шт.

4

112517A1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

cover

1шт.

5

181122A1

OIL SEAL,50mm ID x 65mm OD x 8mm Thk

50 x 65 x 8 mm

1шт.

6

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

1шт.

7

181152A3

SEAL,Locking, 40.95mm ID x 45.01mm OD x 2.26mm Thk

2шт.

8

181194A1

BUSHING

grooved

1шт.

9

181126A1

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

1шт.

10

181154A1

THRUST WASHER,45mm ID x 65mm OD x 4mm Thk

665 x 45 mm

1шт.

11

181223A1

PINION

GEAR driven, MFD, 36 teeth

1шт.

12

100747A1

O-RING

shaft, large

1шт.

13

181182A1

SHAFT

output

1шт.

14

100748A1

O-RING,1.421" ID x 1.699" OD x 0.139"

shaft, small

2шт.

15

181248A1

SLEEVE

shaft

1шт.

16

D142898

PLUG,M10 x 1

shaft, 10 x 1 mm

1шт.

17

100753A1

SPRING,Compression, 15mm OD x 41.2mm L

sleeve

6шт.

18

181276A1

WASHER

flat, special

1шт.

19

181120A1

RING, SNAP

RING SNAP

1шт.

20

P3533055

SCREW,M12 x 1.25 x 25mm

locking, special, 12 - 1.25 x 25 mm

1шт.

21

P2745466

WASHER

flat, special

1шт.

22

238-8217

O-RING,0.139" Thk x 1.171" ID, -217, Cl 8, 90 Duro

1шт.
