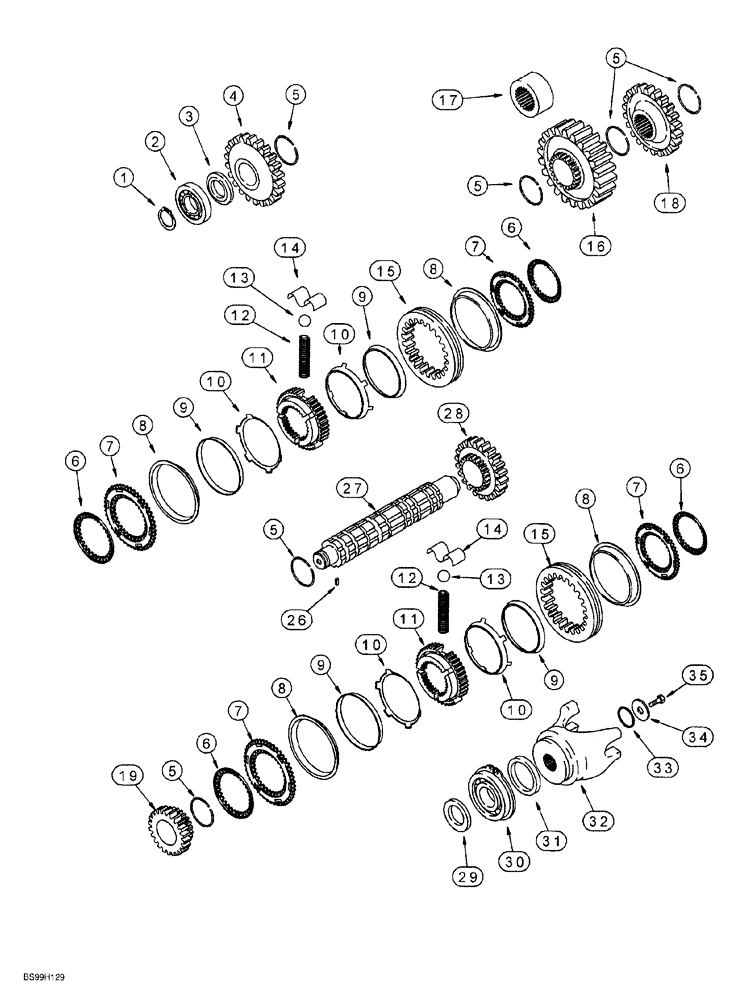

Запчасти Case 580SL (6-050) - CARRARO TRANSMISSION ASSY, SECONDARY SHAFT, 2 OR 4 WHEEL DRIVE, MODELS W/OUT POWERSHIFT TRANSMISSION (06) - POWER TRAIN

123842A3

TRANSMISSION

ASSY., 2WD, new, w/integrated diff. lock solenoid valve, Includes: Ref. 1-35, see Figs. 6-34-6-58; replaces 123843A2 trans. which used the chassis mounted diff. lock solenoid valve, see Fig 6-156, no longer available, order 329079A1, see Fig. 6-62 - 6-84

1шт.

See Figure 6-34 for further explanation when replacing an A2 transmission with an A3 transmission

1шт.

123842A3R

REMAN-TRANSMISSION

580SL Series 2, Two Wheel Drive, Verify That The Unit Removed From The Tractor Being Repaired Has A Supplier Part Number 137373 On It, If Not, Do Not Use 123842A3R As A Replacement

1шт.

123842A3C

CORE-TRANSMISSION

Return Number

1шт.

123843A3

TRANSMISSION

ASSY., 4WD, new, w/integrated diff. lock solenoid valve, Includes: Ref. 1-35, see Figs. 6-34-6-60; replaces 123843A2 trans. which used the chassis mounted diff. lock solenoid valve, see Fig 6-156,no longer available, order 329079A1, see Fig. 6-62 - 6-86

1шт.

See Figure 6-34 for further explanation when replacing an A2 transmission with an A3 transmission

1шт.

123843A3R

REMAN-TRANSMISSION

580SL Series-2, 4 WD, Without Powershift Transmission

1шт.

123843A3C

CORE-TRANSMISSION

Return Number

1шт.

1

181118A1

RING, LOCKING,36.5mm ID x 1.75mm Thk

1шт.

2

181132A1

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

1шт.

3

181193A1

THRUST WASHER

64 x 40 mm

1шт.

4

181190A1

PINION,43T

GEAR driven, second

1шт.

5

181114A1

RING, SNAP

6шт.

190427A1

SYNCHRONIZER,90T

KIT service, Includes: Refs. 6-15; Included in 256888A3 synchronizer kit

2шт.

6

244109A1

SPACER

gear to synchronizer ring; Included in 256888A3 synchronizer kit

4шт.

7

NSS

NOT SOLD SEPARAT

RING synchronizer

2шт.

8

NSS

NOT SOLD SEPARAT

RING synchronizer, flanged

2шт.

9

NSS

NOT SOLD SEPARAT

SPACER hub

2шт.

10

NSS

NOT SOLD SEPARAT

RETAINER spacer

2шт.

11

NSS

NOT SOLD SEPARAT

HUB synchronizer

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING hub

3шт.

13

NSS

NOT SOLD SEPARAT

BALL hub

3шт.

14

NSS

NOT SOLD SEPARAT

PLATE spring

3шт.

15

NSS

NOT SOLD SEPARAT

SLEEVE hub

1шт.

16

181189A1

PINION,49T

GEAR driven, first

1шт.

17

181226A1

SPACER

gear, two wheel drive models

1шт.

18

181224A1

PINION,44T

GEAR drive, MFD

1шт.

19

181192A1

PINION,23T

GEAR driven, fourth

1шт.

26

181108A1

SPLIT PIN,3mm OD x 8mm L

roll

1шт.

27

181183A1

SHAFT

Secondary (Rear Output Shaft)

1шт.

28

181191A1

PINION,33T

GEAR driven, third

1шт.

29

181154A1

THRUST WASHER,45mm ID x 65mm OD x 4mm Thk

1шт.

30

181130A1

BEARING, BALL,45 mm ID x 106.5 mm OD x 25 mm

1шт.

31

181123A1

OIL SEAL,60mm ID x 75mm OD x 8mm Thk

1шт.

32

233284A1

YOKE

Shaft, rear

1шт.

33

181144A1

O-RING,39.6mm ID x 3.53mm Width

flange sealing

1шт.

34

181165A1

WASHER,12.5mm ID x 52mm OD x 5mm Thk

flat

1шт.

35

P3533055

SCREW,M12 x 1.25 x 25mm

locking

1шт.

256888A3

SYNCHRONIZER

KIT, Incl: 190427A1 Kit Ref 6 - 15; plus parts on Figures 6-042, 6-048, 6-050. Also incl 190436A1 spring, Ref 37 on 6-056. Also incls (1) 278531A1 washer which is NSS and not shown.

1шт.
