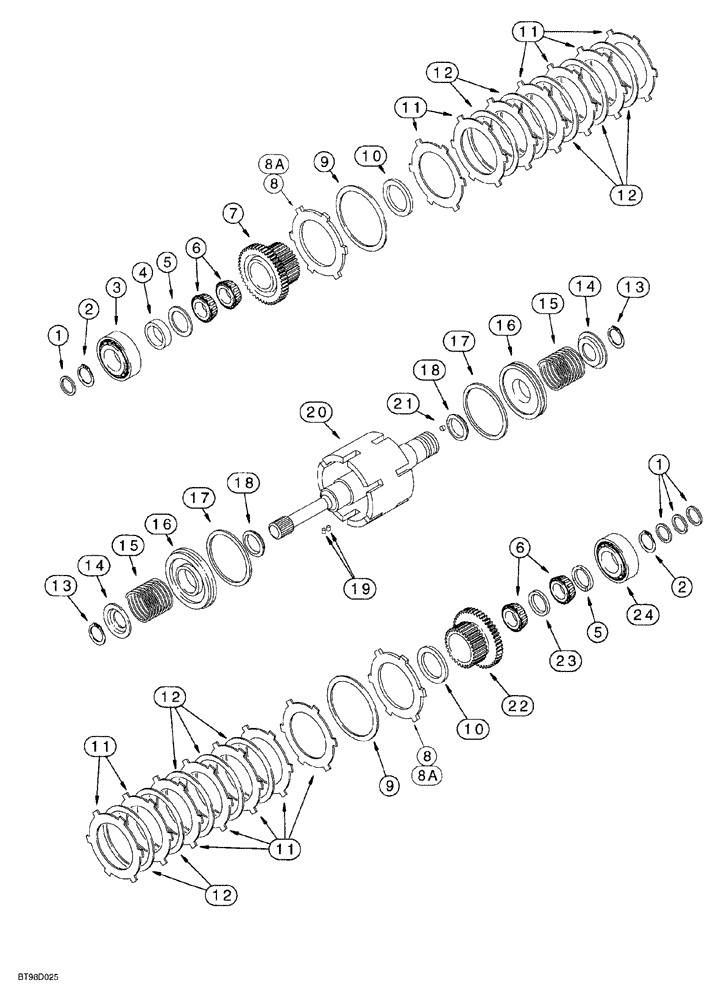

Запчасти Case 580SL (6-048) - CARRARO TRANSMISSION ASSY, INPUT SHAFT, 2 OR 4 WHEEL DRIVE, MODELS W/OUT POWERSHIFT TRANSMISSION (06) - POWER TRAIN

123842A3

TRANSMISSION

ASSY., 2WD, new, w/integrated diff. lock solenoid valve, Includes: Ref. 1-24, See Figs. 6-34-6-58; Replaces 123843A2 trans. which used the chassis mounted diff. lock solenoid valve, See Fig 6-156, no longer available, order 329079A1, See Figs. 6-62 - 6-84

1шт.

See Fig. 6-35 for further explanation when replacing an A2 transmission with an A3 transmission

1шт.

123842A3R

REMAN-TRANSMISSION

580SL Series 2, Two Wheel Drive, Verify That The Unit Removed From The Tractor Being Repaired Has A Supplier Part Number Of 137373 On It, If Not, Do Not Use 123842A3R As A Replacement

1шт.

123842A3C

CORE-TRANSMISSION

Return Number

1шт.

123843A3

TRANSMISSION

ASSY., 4WD, new, w/integrated diff. lock solenoid valve, Includes: Ref. 1-24, See Figs. 6-34-6-60; Replaces: 123843A2 trans. which used the chassis mounted diff. lock solenoid valve, see Fig 6-156,no longer available, order 329079A1, see Fig. 6-62 - 6-86

1шт.

See Fig. 6-35 for further explanation when replacing an A2 transmission with an A3 transmission

1шт.

123843A3R

REMAN-TRANSMISSION

580SL SERIES-2, 4 WD, Without Powershift Transmission

1шт.

123843A3C

CORE-TRANSMISSION

Return Number

1шт.

1

181152A3

SEAL,Locking, 40.95mm ID x 45.01mm OD x 2.26mm Thk

4шт.

2

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

RING snap

2шт.

3

181128A1

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

4

181153A1

SPACER

bearing

1шт.

5

181154A1

THRUST WASHER,45mm ID x 65mm OD x 4mm Thk

65 x 45 mm

2шт.

6

181135A1

BEARING, NEEDLE,50mm ID x 55mm OD x 17mm W

4шт.

7

181228A2

PINION

GEAR input shaft, 35 teeth

1шт.

8

181162A1

PLATE

thrust, 3.7 mm thick tabs, no longer used, order Ref. 8A

2шт.

When replacing 181162A1 plate (3.7 mm thick tabs) with thicker 310519A1 plate (6.2 mm thick tabs), two less disc plates (Ref 11) are required per transmission.

1шт.

8a

310519A1

PLATE

thrust, 6.2 mm thick tabs

2шт.

When replacing 181162A1 plate (3.7 mm thick tabs) with thicker 310519A1 plate (6.2 mm thick tabs), two less disc plates (Ref 11) are required per transmission.

1шт.

9

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

RING, LOCK

2шт.

10

181163A1

THRUST WASHER

2шт.

11

181159A1

DISC

PLATE, intermediate

14-16шт.

When replacing 181162A1 plate (3.7 mm thick tabs) with thicker 310519A1 plate (6.2 mm thick tabs), two less disc plates (Ref 11) are required per transmission.

1шт.

12

181158A1

CLUTCH DISC

CLUTCH DISK PLATE

12шт.

13

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

RING, LOCK snap

2шт.

14

181161A1

PLATE, THRUST

pressure

2шт.

15

181160A2

SPRING

Detent, replaces P/N's 181160A1 spring, no longer included in transmission assembly, No longer included in 256888A3 synchronizer kit

2шт.

16

181155A2

PISTON

Input shaft, replaces P/N's 181155A1 piston, no longer included in transmission assembly, included in 256888A3 synchronizer kit

2шт.

17

181157A3

SEAL,Locking, 131.16mm ID x 138.28mm OD x 2.97mm Thk

RING

2шт.

18

181156A3

SEAL,Locking, 49.91mm ID x 54.99mm OD x 2.46mm Thk

RING, small

2шт.

19

181108A1

SPLIT PIN,3mm OD x 8mm L

roll

4шт.

20

298203A1

SHAFT

input

1шт.

21

D142898

PLUG,M10 x 1

input shaft

1шт.

22

181227A2

PINION

GEAR shaft, 29 teeth

1шт.

23

181164A1

SPACER

bearing

1шт.

24

181126A1

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

1шт.

256888A3

SYNCHRONIZER

KIT, Incl: Ref 16; plus parts on Figures 6-042, 6-048, 6-050. Also incl 190436A1 spring, Ref 37 on 6-056. Also incls (1) 278531A1 washer which is NSS and not shown.

1шт.
