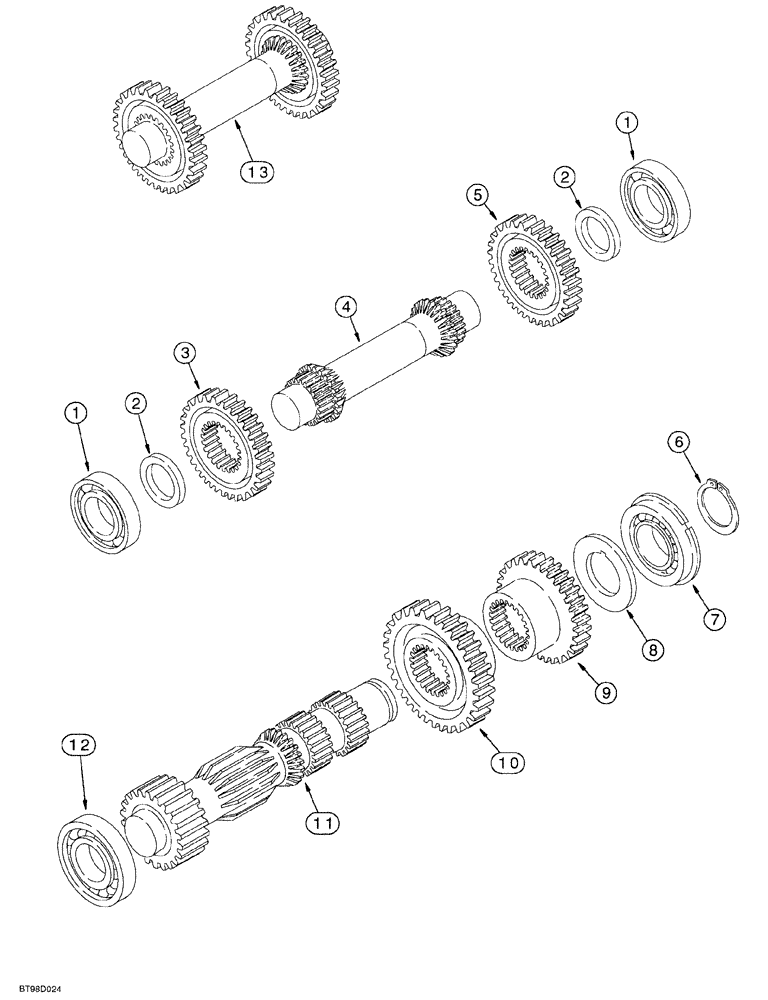

Запчасти Case 580SL (6-046) - CARRARO TRANS ASSY, IDLER & PRIMARY SHAFT, 2 OR 4 WHEEL DRIVE, MODELS W/OUT POWERSHIFT TRANSMISSION (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
123842A3
TRANSMISSION
ASSY, 2WD, new, w/integrated diff. lock solenoid valve, Includes: Ref. 1-13, see Figs. 6-34-6-58; replaces P/123843A2 trans. which used the chassis mounted diff. lock solenoid valve, see Fig 6-156, no longer available, order 329079A1, see fig 6-62 - 6-84
1шт.
See Fig. 6-34 for further explanation when replacing an A2 transmission with an A3 transmission
1шт.
123842A3R
REMAN-TRANSMISSION
580SL Series 2, Two Wheel Drive, Verify That The Unit Removed From The Tractor Being Repaired Has Supplier Part Number 137373 On It, If Not, Do Not Use 123842A3R As A Replacement
1шт.
123842A3C
CORE-TRANSMISSION
Return Number
1шт.
123843A3
TRANSMISSION
ASSY, 4WD, new, w/integrated diff. lock solenoid valve, Includes: Ref. 1-13, see Figs. 6-34-6-60; replaces P/N123843A2 trans. which used the chassis mounted diff. lock solenoid valve, see Fig 6-156,no longer available, order 329079A1, see fig 6-62 - 6-86
1шт.
See Fig. 6-34 for further explanation when replacing an A2 transmission with an A3 transmission
1шт.
123843A3R
REMAN-TRANSMISSION
580SL SERIES-2, 4 WD, Without Powershift Transmission
1шт.
123843A3C
CORE-TRANSMISSION
Return Number
1шт.
1
ST205A
BEARING, BALL,35 mm ID x 72 mm OD x 17 mm
2шт.
2
181151A1
BLOCK
SHIM bearing, 52 x 35.1 x 4 mm, if used
2шт.
3
181186A1
PINION
GEAR idler, 27 teeth, no longer available, order P/N 310613A1 one piece gear shaft, Ref. 13
1шт.
4
181181A1
SHAFT
idler, no longer available, order P/N 310613A1 one-piece gear shaft, Ref. 13
1шт.
5
181186A1
PINION
GEAR idler, 27 teeth, no longer available, order P/N 310613A1 one piece gear shaft, Ref. 13
1шт.
6
A48041
CIRCLIP,41.5mm ID x 2.5mm Thk
RING snap
1шт.
7
181128A1
BEARING, BALL,45mm ID x 85mm OD x 19mm W
1шт.
8
181154A1
THRUST WASHER,45mm ID x 65mm OD x 4mm Thk
65 x 45 mm
1шт.
9
181188A1
PINION
GEAR drive, third, 28 teeth
1шт.
10
181187A1
GEAR
drive, fourth, 39 teeth
1шт.
11
181184A1
SHAFT
primary
1шт.
12
181132A1
ROLLER BEARING,40mm ID x 80mm OD x 18mm W
roller
1шт.
13
310613A1
SHAFT
gear, idler, one-piece, Replaces: Ref. 2 through 5, 181151A1 shim (Ref. 2) is not required with P/N 310613A1 one piece gear shaft
1шт.
Выбрано товаров: 21
