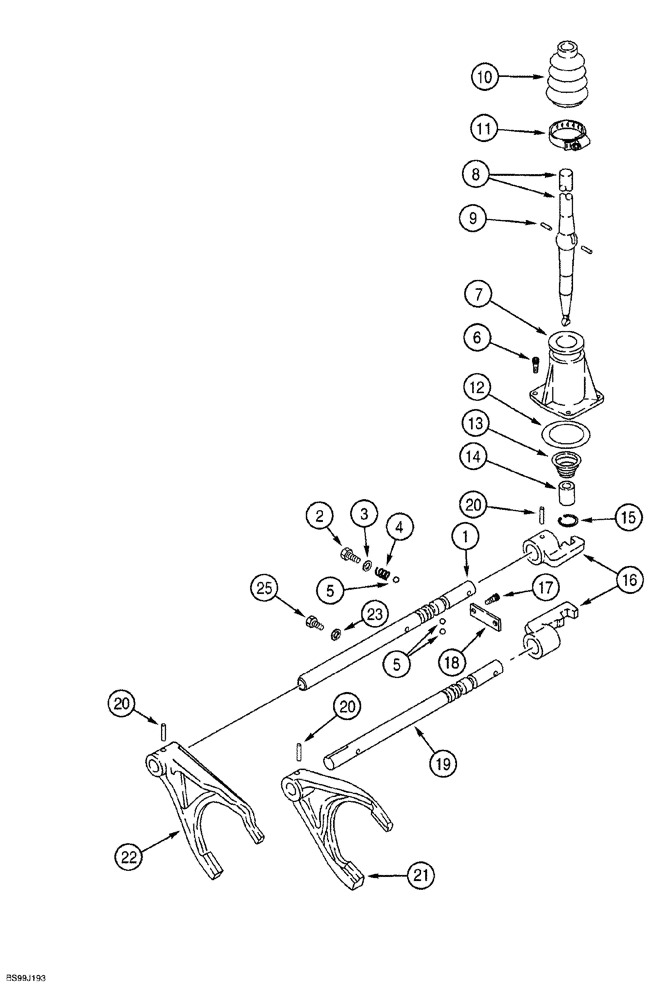

Запчасти Case 580SL (6-042) - CARRARO TRANS ASSEMBLY, TRANS SHIFTER MECH, 2 OR 4 WHEEL DRIVE, MODELS W/OUT POWERSHIFT TRANSMISSION (06) - POWER TRAIN

123842A3

TRANSMISSION

ASSY, 2WD, new, w/integrated diff. lock solenoid valve, Includes: Refs. 1-20 see figs. 6-34-6-58; Replaces 123843A2 trans. which used the chassis mounted diff. lock solenoid valve, See fig 6-156, no longer available, order 329079A1, See pg 6-62 - 6-84

1шт.

See Fig. 6-34 for further explanation when replacing an A2 transmission with an A3 transmission

1шт.

123842A3R

REMAN-TRANSMISSION

580SL Series 2, Two Wheel Drive, Verify That The Unit Removed From The Tractor Being Repaired Has Supplier P/N 137373 On It. If Not, Do Not Use 123842A3R As A Replacement

1шт.

123842A3C

CORE-TRANSMISSION

Return Number

1шт.

123843A3

TRANSMISSION

ASSY, 4WD, new, w/integrated diff. lock solenoid valve, Includes: Refs. 1-20 & 21-25 See Fig 6-34-6-60; Replaces 123843A2 trans. which used the chassis mounted diff. lock solenoid valve, See Fig 6-156,no longer available, order 329079A1, See Fig 6-62-6-86

1шт.

See Fig. 6-34 for further explanation when replacing an A2 transmission with an A3 transmission

1шт.

123843A3R

REMAN-TRANSMISSION

580SL SERIES-2, 4 WD, Without Powershift Transmission

1шт.

123843A3C

CORE-TRANSMISSION

Return Number

1шт.

1

181206A1

ROD

RAIL shifter fork, third and fourth, no longer included in transmission assembly, included in 256888A3 synchronizer kit

1шт.

2

614-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

3шт.

3

1966835C1

SEALING WASHER

flat, special, 12 x 16 x 1.5 mm

3шт.

4

1966993C1

SPRING

detent

2шт.

5

181139A1

BALL,10mm OD

detent

4шт.

6

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

3шт.

7

181171A1

COVER

shift lever

1шт.

8

190428A3

LEVER

Shift, Replaces 190428A1, 190428A2 lever, No longer included in transmission assembly, Included in 256888A3 synchronizer kit

1шт.

9

1967585C1

PIN

Shift lever, no longer included in transmission assembly, included in 256888A3 synchronizer kit, see below

2шт.

10

1967581C1

BOOT

Rubber, no longer included in transmission assembly, included in 2568888A3 synchronizer kit, see below

1шт.

11

181177A1

CLAMP

adjustable

1шт.

12

181138A1

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

sealing

1шт.

13

278533A1

SPRING

Shift lever, replaces P/N's 1967586C1 spring, no longer included in transmission assembly, included in 256888A3 synchronizer kit

1шт.

14

278532A1

BUSHING

Shift lever, Replaces P/N 181180A1 bushing, no longer included in transmission assembly, included in 256888A3 synchronizer kit

1шт.

15

279039A1

RING, SNAP

RING SNAP Replaces P/N 800-1115 ring, no longer included in transmission assembly, included in 256888A3 synchronizer kit

1шт.

16

181173A1

SELECTOR

SHIFTER rail

2шт.

17

864-10025

HEX SOC SCREW,M10 x 25mm, Cl 8.8

2шт.

18

181175A1

PLATE

Retainer, Detent ball

1шт.

19

181245A2

SHIFT RAIL

Fork, First and second; Included in 256888A3 synchronizer kit, See below

1шт.

20

905794R1

PIN,M6 x 30, Coiled

included in 256888A3 synchronizer kit, see below

2-4шт.

21

181203A1

SHIFTER FORK

gear shift, first and second

1шт.

22

181174A2

SHIFTER FORK

Gear shift, third and fourth, replaces 181174A1 fork, no longer included in transmission assembly, included 256888A3 synchronizer kit

1шт.

23

181104A1

COPPER WASHER

sealing

1шт.

25

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

256888A3

SYNCHRONIZER

KIT, Incl: Ref. 1, 8 - 10, 13 - 15, 19, 20, 22; plus parts on Figures 6-042, 6-048, 6-050. Also incl 190436A1 spring, Ref 37 on 6-056. Also incls (1) 278531A1 washer which is NSS and not shown.

1шт.
