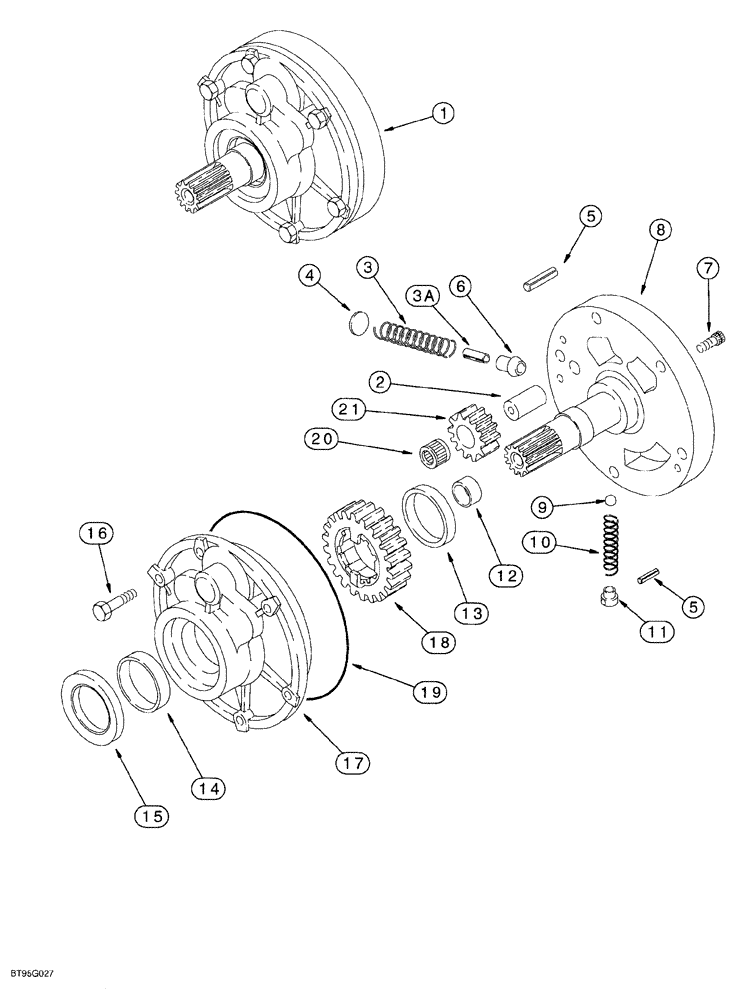

Запчасти Case 580SL (6-040) - CARRARO TRANSMISSION ASSY, OIL PUMP, 2 OR 4 WHEEL DRIVE, MODELS WITHOUT POWERSHIFT TRANSMISSION (06) - POWER TRAIN

123842A3

TRANSMISSION

ASSY, 2WD, new, with integrated diff. lock solenoid valve, Includes: Ref. 1-21, See Figs. 6-34-6-58; Replaces 123843A2 trans. which used the chassis mounted diff. lock solenoid valve, See Fig 6-156, no longer available, order 329079A1, See Fig 6-62 - 6-84

1шт.

See Fig. 6-34 for further explanation when replacing an A2 transmission with an A3 transmission

1шт.

123842A3R

REMAN-TRANSMISSION

580SL Series 2, Two Wheel Drive, Verify That The Unit Removed From The Tractor Being Repaired Has Supplier P/N 137373 On it, If Not, Do Not Use 123842A3R As A Replacement

1шт.

123842A3C

CORE-TRANSMISSION

Return Number

1шт.

123843A3

TRANSMISSION

ASSY, 4WD, new, with integrated diff. lock solenoid valve, Includes: Ref. 1-21, See Figs. 6-34-6-60; Replaces 123843A2 trans. which used the chassis mounted diff. lock solenoid valve, See Fig 6-156,no longer available, order 329079A1, See Fig 6-62 - 6-86

1шт.

See Fig. 6-34 for further explanation when replacing an A2 transmission with an A3 transmission

1шт.

123843A3R

REMAN-TRANSMISSION

580SL SERIES-2, 4 WD, Without Powershift Transmission

1шт.

123843A3C

CORE-TRANSMISSION

Return Number

1шт.

1

181199A4

PUMP

ASSEMBLY, oil, transmission, Includes: Refs. 2-21

1шт.

1

181199A4R

REMAN-HYD PUMP

580SL Series 2, w/o Powershift

1шт.

1

181199A4C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

247744A1

SHAFT

small, not available for service, order P/N 181199A4

1шт.

3

181270A1

SPRING

detent, not available for service, order P/N 181199A4

1шт.

3a

NSS

NOT SOLD SEPARAT

PIN valve

1шт.

Order 247749A1 piston valve kit below

1шт.

4

198713A1

WASHER

STOP spring, not available for service, order P/N 181199A4

1шт.

5

181109A1

SPLIT PIN

roll, 5 x 22 mm, not available for service, order P/N 181199A4

2шт.

6

NSS

NOT SOLD SEPARAT

VALVE piston

1шт.

Order 247749A1 piston valve kit below

1шт.

7

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

Not available for service, Order P/N 181199A4

2шт.

8

NSS

NOT SOLD SEPARAT

SUPPORT pump

1шт.

9

181145A1

BALL

check, not available for service, order P/N 181199A4

1шт.

10

181214A1

SPRING

detent, not available for service, order P/N 181199A4

1шт.

11

198712A1

SPLIT PIN/SAFETY PIN

GUIDE spring, not available for service, order P/N 181199A4

1шт.

12

181215A1

BUSHING

pump support, small, not available for service, order P/N 181199A4

1шт.

13

247746A1

BUSHING

pump support, large, not available for service, order P/N 181199A4

1шт.

14

181216A1

BUSHING

pump housing

1шт.

15

181205A1

OIL SEAL

pump housing

1шт.

16

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

6шт.

17

NSS

NOT SOLD SEPARAT

HOUSING oil pump

1шт.

18

247748A1

PINION

GEAR, 23 teeth, charge pump, large, not available for service, order P/N 181199A4 pump

1шт.

19

181142A1

O-RING,2.5mm Thk x 183mm ID, 70 Duro

pump housing

1шт.

20

246767A1

BEARING, NEEDLE

not available for service, order P/N 181199A4 pump

1шт.

21

181218A1

PINION

GEAR small,12 teeth, not available for service, order P/N 181199A4 pump

1шт.

247749A1

SPARE PART SET

KIT piston valve, not available for service, order P/N 181199A4 pump

1шт.
