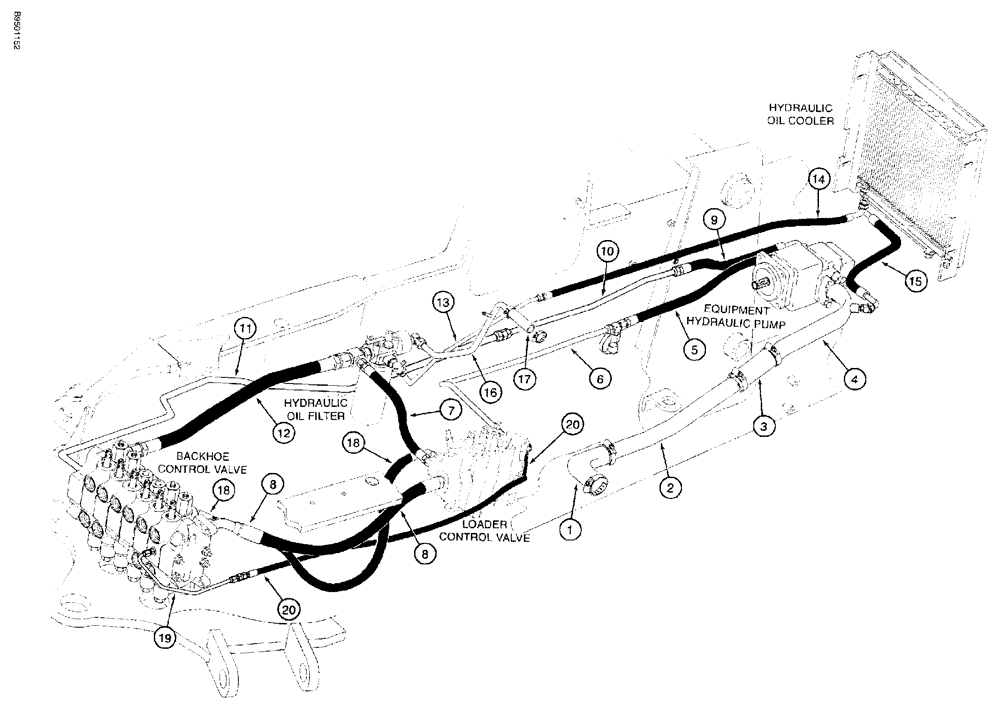

Запчасти Case 580SL (1-012) - PICTORIAL INDEX, EQUIPMENT HYDRAULICS, HYDRAULIC PUMP TO OIL FILTER, CONTROL VALVES & RETURN TO TANK (00) - PICTORIAL INDEX

1

Suction hose at hydraulic tank, see Figure 8-002

1шт.

2

Suction tube at hydraulic tank, see Figure 8-002

1шт.

3

Coupler hose, see Figure 8-002

1шт.

4

Suction tube at hydraulic equipment pump, see Figure 8-002

1шт.

5

Hose at large pump section port, see Figure 8-002

1шт.

6

Tube at tee to loader control valve inlet, see Figure 8-002

1шт.

7

Loader valve to filter hose, see Figure 8-004

1шт.

8

Hose at loader valve power beyond port to backhoe control valve inlet, see Figure 8-006

1шт.

9

Hose at small pump section outlet port, see Figure 8-006

1шт.

10

Tube between small pump section hose to tube at backhoe valve outlet section, see Figure 8-006

1шт.

11

Tube to inlet port on backhoe control valve outlet section, see Figure 8-006

1шт.

12

Return hose at backhoe control valve to filter, see Figure 8-008

1шт.

13

Oil filter to oil cooler tube, see Figure 8-008

1шт.

14

Hose at oil cooler, see Figure 8-008

1шт.

15

Oil cooler return hose, see Figure 8-008

1шт.

16

Return to tank tube, see Figure 8-008

1шт.

17

Return to tank hose, see Figure 8-008

1шт.

18

Swing supply hose at loader valve inlet section lower port to backhoe valve swing section, see Figure 8-038

1шт.

19

Pilot tube at backhoe valve swing section center port to loader control valve inlet section, see Figure 8-038

1шт.

20

Signal hose at backhoe control valve swing section to loader control valve inlet section, see Figure 8-038

1шт.
