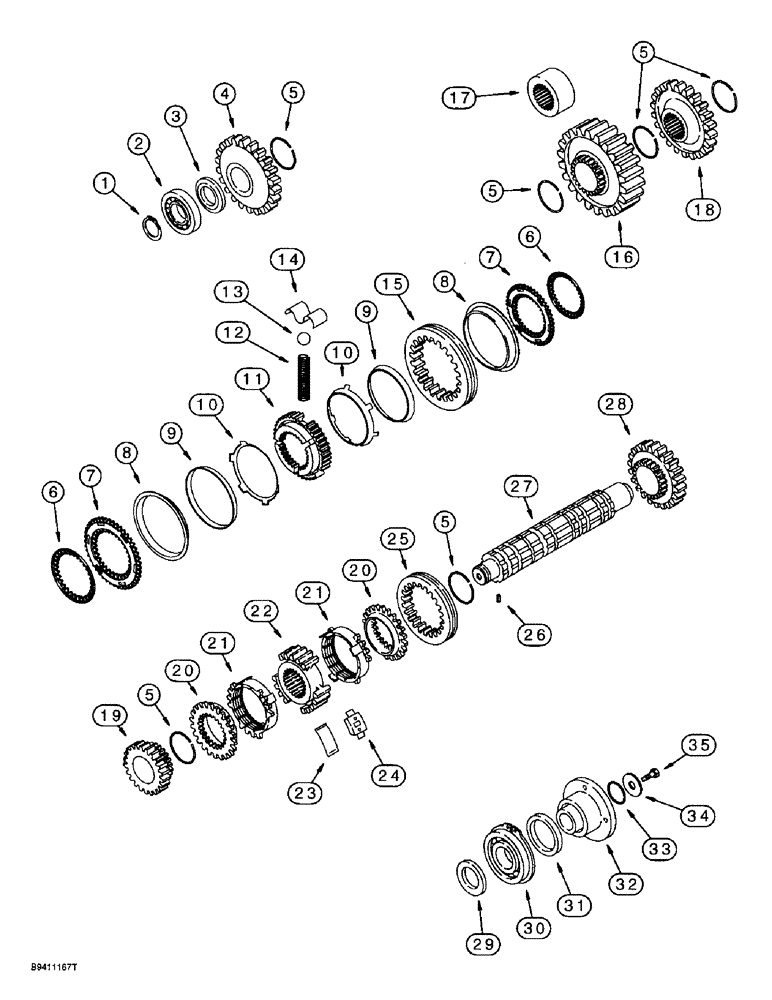

Запчасти Case 580SL (6-38) - TRANSMISSION ASSEMBLY, SECONDARY SHAFT, TWO WHEEL OR FOUR WHEEL DRIVE (06) - POWER TRAIN

123842A1

TRANSMISSION

ASSEMBLY - two wheel drive, Includes: Ref. 1 - 35 and parts in Figures 6-24, 6-26, 6-30 - 6-36 and 6-42

1шт.

See Figure 6-24 for remanufactured transmission part numbers.

1шт.

123843A1

TRANSMISSION

ASSEMBLY - four wheel drive, Includes: Ref. 1 - 35 and parts in Figures 6-24, 6-28 - 6-36 and 6-40 - 6-44

1шт.

See Figure 6-24 for remanufactured transmission part numbers.

1шт.

1

181118A1

RING, LOCKING,36.5mm ID x 1.75mm Thk

RING - lock

1шт.

Part of Seal Kit, P/N 278836A1

1шт.

Part of Seal Kit, P/N 278302A1

1шт.

2

181132A1

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

BEARING - roller

1шт.

Part of Seal Kit, P/N 278836A1

1шт.

Part of Seal Kit, P/N 278302A1

1шт.

3

181193A1

THRUST WASHER

WASHER - thrust, 64 x 40 mm

1шт.

Part of Seal Kit, P/N 278836A1

1шт.

Part of Seal Kit, P/N 278302A1

1шт.

4

181190A1

PINION,43T

GEAR - driven, second, 43 teeth

1шт.

5

181114A1

RING, SNAP

RING - snap

6шт.

Part of Seal Kit, P/N 278836A1

1шт.

Part of Seal Kit, P/N 278302A1

1шт.

5a

190427A1

SYNCHRONIZER,90T

KIT - synchronizing service, Includes: Ref. 6 - 15, no longer included in transmission assembly; included in 256888A3 synchronizer kit, see below

1шт.

Part of Synchonizer Service Kit, P/N 256888A3

1шт.

6

244109A1

SPACER

Gear to synchronizer ring, no longer included in kit or transmission assembly; included in 256888A3 synchronizer kit, see below

2шт.

Part of Synchonizer Service Kit, P/N 256888A3

1шт.

7

NSS

NOT SOLD SEPARAT

RING - synchronizer

2шт.

8

NSS

NOT SOLD SEPARAT

RING - synchronizer, flanged

2шт.

9

NSS

NOT SOLD SEPARAT

SPACER - hub

2шт.

10

NSS

NOT SOLD SEPARAT

RETAINER - spacer

2шт.

11

NSS

NOT SOLD SEPARAT

HUB - synchronizer

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING - hub

3шт.

13

NSS

NOT SOLD SEPARAT

BALL - hub

3шт.

14

NSS

NOT SOLD SEPARAT

PLATE - spring

3шт.

15

NSS

NOT SOLD SEPARAT

SLEEVE - hub

1шт.

16

181189A1

PINION,49T

GEAR - driven, first, 49 teeth

1шт.

17

181226A1

SPACER

- gear, two-wheel drive models

1шт.

18

181224A1

PINION,44T

GEAR - drive, MFD, 44 teeth

1шт.

19

181192A1

PINION,23T

GEAR - driven, fourth, 23 teeth

1шт.

181178A1

SYNCHRONIZER

KIT - synchronizing service, Includes: Ref. 20 - 25, kit no longer available, order 256888A3 synchronizer service kit, see below

1шт.

20

241957A1

FLANGE

- synchronizer, no longer included in kit, purchase separately, subbed to kit number 190427A1

2шт.

21

123800A1

SYNCHRO RING

RING - synchronizer

2шт.

22

NSS

NOT SOLD SEPARAT

HUB - synchronizer

1шт.

23

1967506C1

SPRING

- hub, inner

3шт.

24

123803A1

SPRING

- hub, outer

3шт.

25

1967537C1

SLEEVE

- shift fork, no longer included in kit, purchase separately

1шт.

26

181108A1

SPLIT PIN,3mm OD x 8mm L

PIN - roll

1шт.

Part of Seal Kit, P/N 278836A1

1шт.

Part of Seal Kit, P/N 278302A1

1шт.

27

181183A1

SHAFT

Secondary (Rear Output Shaft)

1шт.

28

181191A1

PINION,33T

GEAR - driven, third, 33 teeth

1шт.

29

181154A1

THRUST WASHER,45mm ID x 65mm OD x 4mm Thk

WASHER - thrust, 65 x 45 mm

1шт.

Part of Seal Kit, P/N 278836A1

1шт.

Part of Seal Kit, P/N 278302A1

1шт.

30

181130A1

BEARING, BALL,45 mm ID x 106.5 mm OD x 25 mm

BEARING - ball

1шт.

31

181123A1

OIL SEAL,60mm ID x 75mm OD x 8mm Thk

SEAL - oil, 60 x 75 x 8 mm

1шт.

Part of Seal Kit, P/N 278836A1

1шт.

Part of Seal Kit, P/N 278302A1

1шт.

32

181231A1

FLANGE

- shaft

1шт.

33

181144A1

O-RING,39.6mm ID x 3.53mm Width

- flange sealing

1шт.

Part of Seal Kit, P/N 278836A1

1шт.

Part of Seal Kit, P/N 278302A1

1шт.

34

181165A1

WASHER,12.5mm ID x 52mm OD x 5mm Thk

- flat, special, 52 x 12.5 x 5 mm

1шт.

Part of Seal Kit, P/N 278836A1

1шт.

Part of Seal Kit, P/N 278302A1

1шт.

35

P3533055

SCREW,M12 x 1.25 x 25mm

- locking, special, 12-1.25 x 25 mm

1шт.

Part of Seal Kit, P/N 278836A1

1шт.

Part of Seal Kit, P/N 278302A1

1шт.

256888A3

SYNCHRONIZER

KIT, Incl: 190427A1 Kit Ref 5A - 15; plus parts on Figures 6-32, 6-36, 6-38. Also incl 190436A1 spring, Ref 37 on 6-42. Also incls (1) 278531A1 washer which is NSS and not shown.

1шт.

278302A1

SET OF PARTS

KIT - seal, transmission overhaul, two wheel drive, Includes: Ref. 1-3, 5, 26, 29, 31, 33-35, also see kit parts on Figures 6-24, 6-26, 6-32 - 6-36 and 6-42

1шт.

278836A1

SET OF PARTS

KIT - seal, transmission overhaul, four wheel drive, Includes: Ref. 1-3, 5, 26, 29, 31, 33-35, also see kit parts on Figures 6-24, 6-28, 6-32 - 6-36 and 6-40 - 6-44

1шт.
