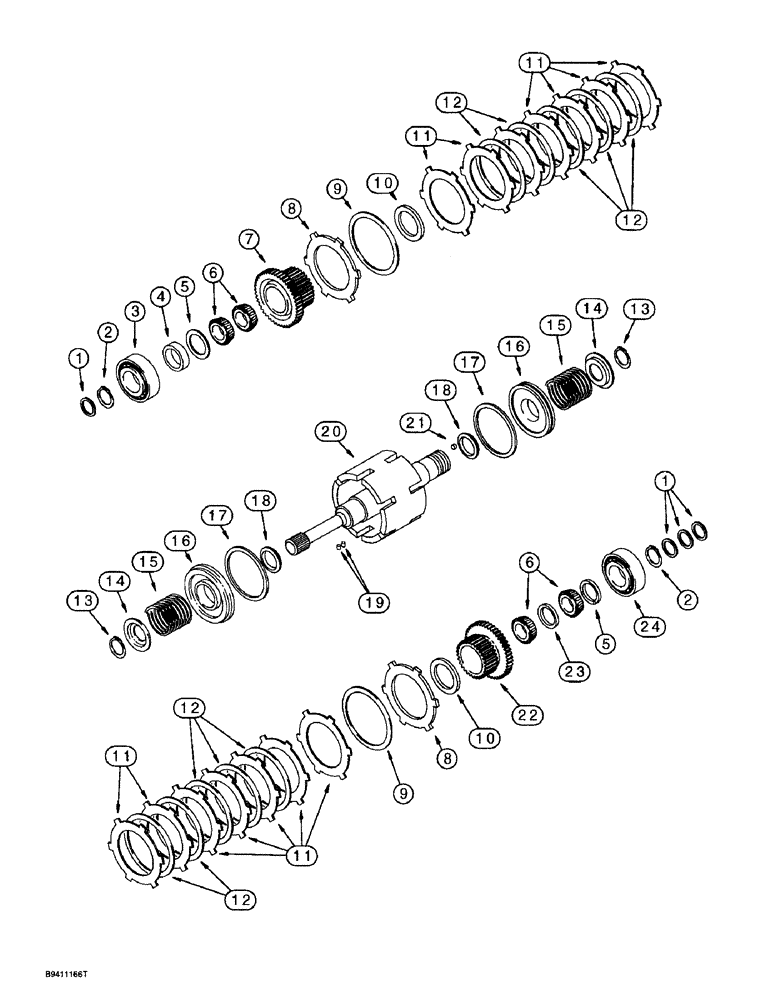

Запчасти Case 580SL (6-36) - TRANSMISSION ASSEMBLY, INPUT SHAFT, TWO WHEEL OR FOUR WHEEL DRIVE (06) - POWER TRAIN

123842A1

TRANSMISSION

ASSEMBLY - two wheel drive, Includes: Ref. 1 - 24 and parts in Figures 6-24, 6-26, 6-30 - 6-34, 6-38 and 6-42

1шт.

See Figure 6-24 for remanufactured transmission part numbers.

1шт.

123843A1

TRANSMISSION

ASSEMBLY - four wheel drive, Includes: Ref. 1 - 24 and parts in Figures 6-24, 6-28 - 6-34 and 6-38 - 6-44

1шт.

See Figure 6-24 for remanufactured transmission part numbers.

1шт.

1

181152A2

SEALING RING

SEAL - oil, replaces 181152A1 seal

4шт.

Part of Seal Kit, P/N 278836A1

1шт.

Part of Seal Kit, P/N 278302A1

1шт.

2

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

RING - snap

2шт.

Part of Seal Kit, P/N 278836A1

1шт.

Part of Seal Kit, P/N 278302A1

1шт.

3

181128A1

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING - ball

1шт.

4

181153A1

SPACER

- bearing

1шт.

5

181154A1

THRUST WASHER,45mm ID x 65mm OD x 4mm Thk

WASHER - thrust, 65 x 45 mm

2шт.

Part of Seal Kit, P/N 278836A1

1шт.

Part of Seal Kit, P/N 278302A1

1шт.

6

181135A1

BEARING, NEEDLE,50mm ID x 55mm OD x 17mm W

BEARING - needle

4шт.

7

181228A2

PINION

GEAR - input shaft, 35 teeth, replaces 181228A1 gear

1шт.

8

181162A1

PLATE

- thrust

2шт.

9

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

RING - lock

2шт.

Part of Seal Kit, P/N 278836A1

1шт.

Part of Seal Kit, P/N 278302A1

1шт.

10

181163A1

THRUST WASHER

WASHER - thrust

2шт.

Part of Seal Kit, P/N 278836A1

1шт.

Part of Seal Kit, P/N 278302A1

1шт.

11

181159A1

DISC

PLATE - disc, intermediate

16шт.

12

181158A1

CLUTCH DISC

PLATE - disc, clutch

12шт.

13

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

RING - snap

2шт.

Part of Seal Kit, P/N 278836A1

1шт.

Part of Seal Kit, P/N 278302A1

1шт.

14

181161A1

PLATE, THRUST

PLATE - pressure

2шт.

15

181160A2

SPRING

Detent, replaces 181160A1 spring, no longer included in transmission assembly; no longer included in 256888A3 synchronizer kit

2шт.

Part of Synchonizer Service Kit, P/N 256888A3

1шт.

16

181155A2

PISTON

Input shaft, replaces 181155A1 piston, no longer included in transmission assembly; included in 256888A3 synchronizer kit, see below

2шт.

Part of Synchonizer Service Kit, P/N 256888A3

1шт.

17

181157A2

SEALING RING

RING - seal, replaces 181157A1 ring

2шт.

Part of Seal Kit, P/N 278836A1

1шт.

Part of Seal Kit, P/N 278302A1

1шт.

18

181156A2

SEALING RING

RING - seal, small, replaces 181156A1 ring

2шт.

Part of Seal Kit, P/N 278836A1

1шт.

Part of Seal Kit, P/N 278302A1

1шт.

19

181108A1

SPLIT PIN,3mm OD x 8mm L

PIN - roll

4шт.

Part of Seal Kit, P/N 278836A1

1шт.

Part of Seal Kit, P/N 278302A1

1шт.

20

181185A1

SHAFT

- input

1шт.

21

D142898

PLUG,M10 x 1

- input shaft

1шт.

22

181227A2

PINION

GEAR - shaft, 29 teeth, replaces 181227A1 gear

1шт.

23

181164A1

SPACER

- bearing

1шт.

Part of Seal Kit, P/N 278836A1

1шт.

Part of Seal Kit, P/N 278302A1

1шт.

24

181126A1

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING - ball

1шт.

256888A3

SYNCHRONIZER

KIT, Incl: Ref 16; plus parts on Figures 6-32, 6-36, 6-38. Also incl 190436A1 spring, Ref 37 on 6-42. Also incls (1) 278531A1 washer which is NSS and not shown.

1шт.

278302A1

SET OF PARTS

KIT - seal, transmission overhaul, two wheel drive, Includes: Ref. 1, 2, 5, 9, 10, 13, 17-19 and 23, also see kit parts on Figures 6-24, 6-26, 6-32, 6-34, 6-38 and 6-42

1шт.

278836A1

SET OF PARTS

KIT - seal, transmission overhaul, four wheel drive, Includes: Ref. 1, 2, 5, 9, 10, 13, 17-19 and 23, also see kit parts on Figures 6-24, 6-28, 6-32, 6-34 and 6-38 - 6-44

1шт.
