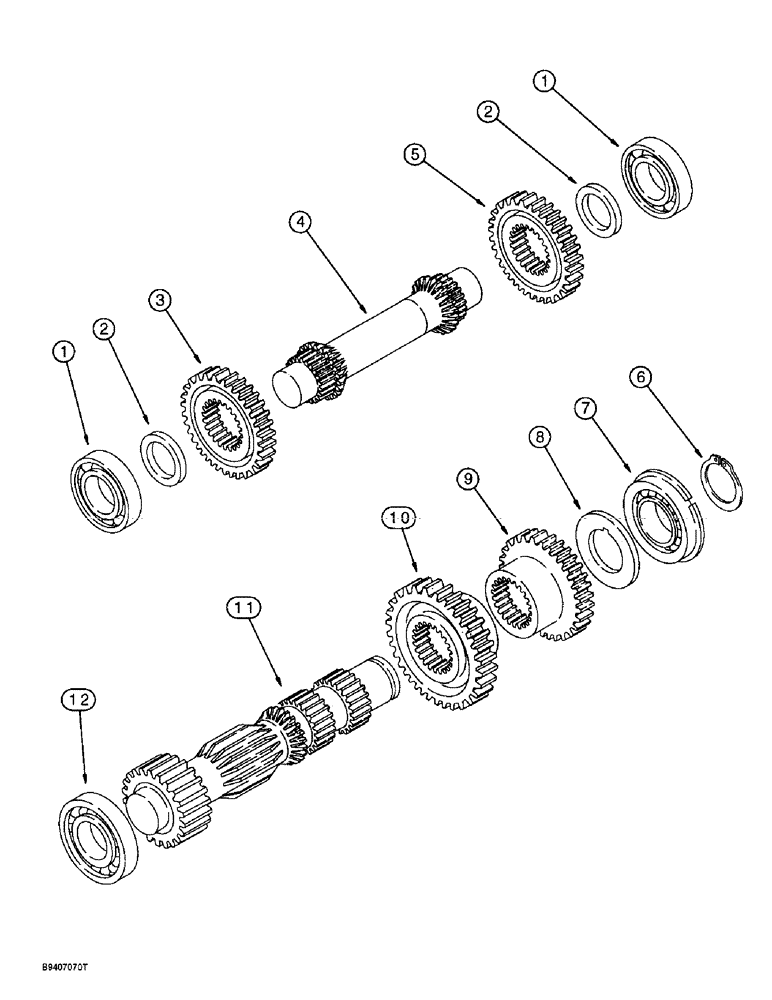

Запчасти Case 580SL (6-34) - TRANSMISSION ASSEMBLY, IDLER AND PRIMARY SHAFT, TWO WHEEL OR FOUR WHEEL DRIVE (06) - POWER TRAIN

123842A1

TRANSMISSION

ASSEMBLY - two wheel drive, Includes: Ref. 1 - 12 and parts in Figures 6-24, 6-26, 6-30 - 6-32, 6-36, 6-38 and 6-42

1шт.

See Figure 6-24 for remanufactured transmission part numbers.

1шт.

123843A1

TRANSMISSION

ASSEMBLY - four wheel drive, Includes: Ref. 1 - 12 and parts in Figures 6-24, 6-28 - 6-32 and 6-36 - 6-44

1шт.

See Figure 6-24 for remanufactured transmission part numbers.

1шт.

1

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING - ball

2шт.

2

181151A1

BLOCK

SHIM - bearing, 52 x 35.1 x 4 mm

2шт.

3

181186A1

PINION

GEAR - idler, 27 teeth

1шт.

4

181181A1

SHAFT

- idler

1шт.

5

181186A1

PINION

GEAR - idler, 27 teeth

1шт.

6

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

RING - snap

1шт.

Part of Seal Kits, P/N 278836A1 and 278302A1

1шт.

7

181128A1

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING - ball

1шт.

8

181154A1

THRUST WASHER,45mm ID x 65mm OD x 4mm Thk

WASHER - thrust, 65 x 45 mm

1шт.

Part of Seal Kits, P/N 278836A1 and 278302A1

1шт.

9

181188A1

PINION

GEAR - drive, third, 28 teeth

1шт.

10

181187A1

GEAR

- drive, fourth, 39 teeth

1шт.

11

181184A1

SHAFT

- primary

1шт.

12

181132A1

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

BEARING - roller

1шт.

Part of Seal Kits, P/N 278836A1 and 278302A1

1шт.

278302A1

SET OF PARTS

KIT - seal, transmission overhaul, two wheel drive, Includes: Ref. 6, 8 and 12, also see kit parts on Figures 6-24, 6-26, 6-32, 6-36, 6-38 and 6-42

1шт.

278836A1

SET OF PARTS

KIT - seal, transmission overhaul, four wheel drive, Includes: Ref. 6, 8 and 12, also see kit parts on Figures 6-24, 6-28, 6-32 and 6-36 - 6-44

1шт.
