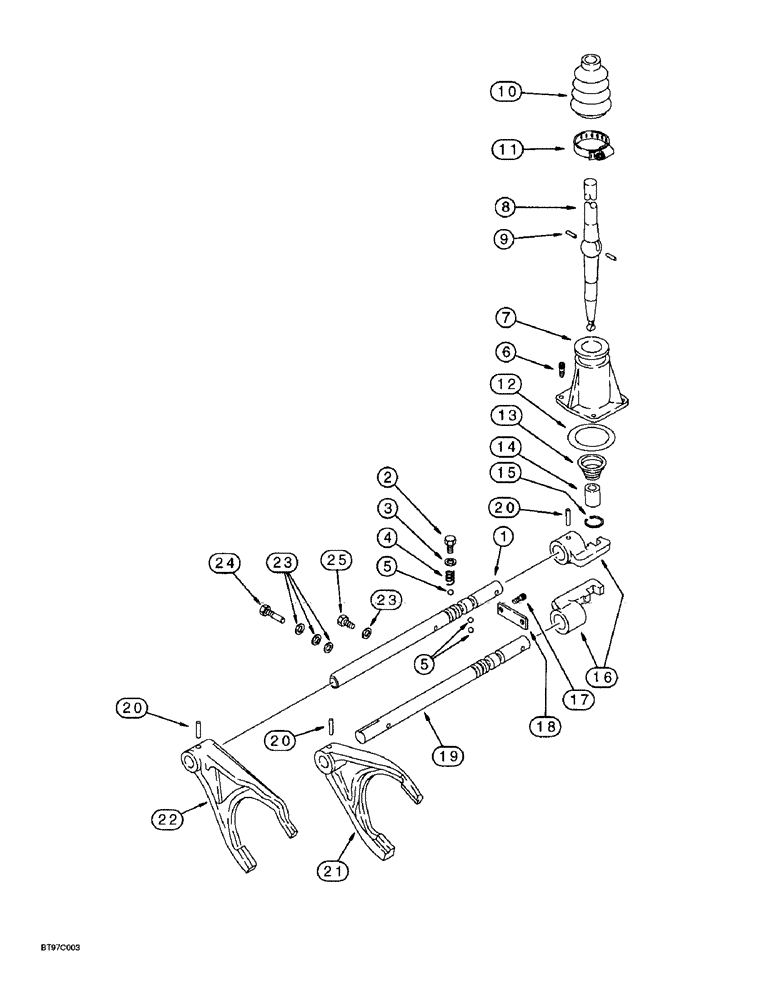

Запчасти Case 580SL (6-32) - TRANSMISSION ASSEMBLY, TRANSMISSION SHIFTER MECHANISM, TWO WHEEL OR FOUR WHEEL DRIVE (06) - POWER TRAIN

123842A1

TRANSMISSION

ASSEMBLY - two wheel drive, Includes: Ref. 1 - 25 and parts in Figures 6-24, 6-26, 6-30, 6-31A, 6-34 - 6-38 and 6-42

1шт.

See Figure 6-24 for remanufactured transmission part numbers.

1шт.

123843A1

TRANSMISSION

ASSEMBLY - four wheel drive, Includes: Ref. 1 - 25 and parts in Figures 6-24, 6-28 - 6-31A and 6-34 - 6-44

1шт.

See Figure 6-24 for remanufactured transmission part numbers.

1шт.

1

181206A1

ROD

RAIL - shifter fork, third and fourth, replaces 181204A1,181204A2 rail, no longer included in transmission assembly; included in 256888A3 synchronizer kit, see below

1шт.

Part of Synchonizer Service Kit, P/N 256888A3

1шт.

2

614-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 16 mm

3шт.

3

1966835C1

SEALING WASHER

- flat, special, 12 x 16 x 1.5 mm

3шт.

Part of Seal Kit, P/N 278836A1

1шт.

Part of Seal Kit, P/N 278302A1

1шт.

4

1966993C1

SPRING

- detent

2шт.

Part of Seal Kit, P/N 278836A1

1шт.

Part of Seal Kit, P/N 278302A1

1шт.

5

181139A1

BALL,10mm OD

- detent

4шт.

6

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

SCREW, Hex Soc Hd, M8 x 25, 8.8

3шт.

7

181171A1

COVER

- shift lever

1шт.

8

190428A3

LEVER

Shift, Replaces 190428A1, 190428A2 lever, No longer included in transmission assembly; Part of Synchonizer Service Kit, P/N 256888A3, See below

1шт.

WHEN REPLACING 190428A2 WITH 190428A3, ALSO ORDER 278532A1-BUSHING, 278533A1-SPRING, AND 279039A1-SNAP RING. ONE OF EACH, REQUIRED.

1шт.

9

1967585C1

PIN

No longer included in transmission assembly; included in 256888A3 synchronizer kit, see below

2шт.

Part of Synchonizer Service Kit, P/N 256888A3

1шт.

10

1967581C1

BOOT

Rubber, no longer included in transmission assembly; included in 256888A3 synchronizer kit, see below

1шт.

Part of Synchonizer Service Kit, P/N 256888A3

1шт.

11

181177A1

CLAMP

- adjustable

1шт.

Part of Seal Kit, P/N 278302A1

1шт.

Part of Seal Kit, P/N 278836A1

1шт.

12

181138A1

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

- sealing

1шт.

Part of Seal Kit, P/N 278836A1

1шт.

Part of Seal Kit, P/N 278302A1

1шт.

13

278533A1

SPRING

Shift lever, replaces 1967586C1 spring, no longer included in transmission assembly; included in 256888A3 synchronizer kit, see below

1шт.

Part of Synchonizer Service Kit, P/N 256888A3

1шт.

14

278532A1

BUSHING

Shift lever, Replaces 181180A1 bushing, no longer included in transmission assembly, bushing is now part of 190428A3 lever, Ref 8; also included in 256888A3 synchronizer kit, see below

1шт.

15

279039A1

RING, SNAP

Replaces 800-1115 ring, no longer included in transmission assembly, ring is now part of 190428A3 lever, Ref 8; also included in 256888A3 synchronizer kit, see below

1шт.

15

Part of Seal Kit, P/N 278302A1

1шт.

15

Part of Seal Kit, P/N 278836A1

1шт.

16

181173A1

SELECTOR

SHIFTER - rail

2шт.

17

864-10025

HEX SOC SCREW,M10 x 25mm, Cl 8.8

BOLT - hex socket, 10-1.5 x 25 mm

2шт.

Part of Seal Kit, P/N 278302A1

1шт.

17

Part of Seal Kit, P/N 278836A1

1шт.

18

181175A1

PLATE

Retainer, Detent ball

1шт.

19

181245A1

ROD

RAIL - shifter fork, first and second; included in 256888A3 synchronizer kit, see below

1шт.

20

905794R1

PIN,M6 x 30, Coiled

- roll, 6 x 30 mm; included in 256888A3 synchronizer kit, see below

2-4шт.

Part of Synchonizer Service Kit, P/N 256888A3

1шт.

20

Part of Seal Kit, P/N 278836A1

1шт.

20

Part of Seal Kit, P/N 278302A1

1шт.

21

181203A1

SHIFTER FORK

FORK - gear shift, first and second

1шт.

22

181174A2

SHIFTER FORK

FORK - gear shift, third and fourth, replaces 181174A1 fork, no longer included in transmission assembly; included in 256888A3 synchronizer kit, see below

1шт.

Part of Synchonizer Service Kit, P/N 256888A3

1шт.

23

181104A1

COPPER WASHER

WASHER - sealing, copper

4шт.

Part of Seal Kit, P/N 278302A1

1шт.

23

Part of Seal Kit P/N 278836A1

1шт.

24

181275A1

BOLT

BOLT - hex, special

1шт.

25

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8-1.25 x 16 mm

1шт.

256888A3

SYNCHRONIZER

KIT, Incl: Ref. 1, 8 - 10, 13 - 15, 19, 20, 22; plus parts on Figures 6-32, 6-36, 6-38. Also incl 190436A1 spring, Ref 37 on 6-42. Also incls (1) 278531A1 washer which is NSS and not shown.

1шт.

278302A1

SET OF PARTS

KIT - seal, transmission overhaul, two wheel drive, Includes: Ref. 3, 4, 11, 12, 15, 17, 20 and 23, also see kit parts on Figures 6-24, 6-26, 6-34 - 6-38 and 6-42

1шт.

278836A1

SET OF PARTS

KIT - seal, transmission overhaul, four wheel drive, Includes: Ref. 3, 4, 11, 12, 15, 17 and 23, also see kit parts on Figures 6-24, 6-28 and 6-34 - 6-44

1шт.
