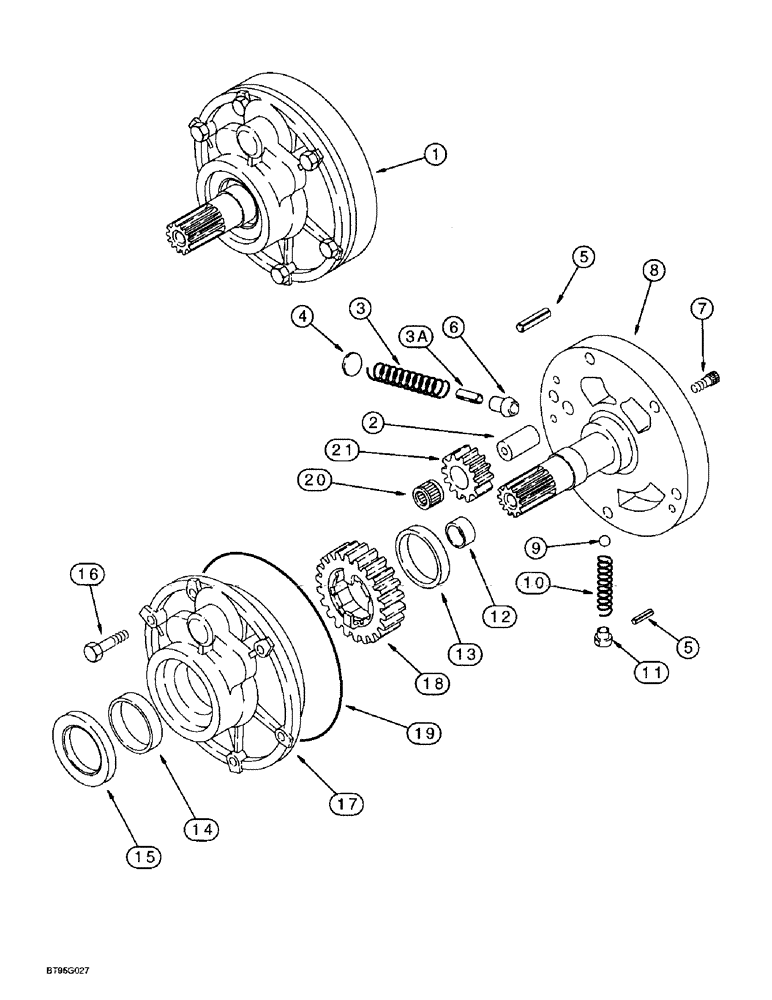

Запчасти Case 580SL (6-30) - TRANSMISSION ASSEMBLY, OIL PUMP 181199A3, TWO WHEEL OR FOUR WHEEL DRIVE (06) - POWER TRAIN

123842A1

TRANSMISSION

ASSEMBLY - two wheel drive, Includes: Ref. 1 - 21 and parts in Figures 6-24, 6-26, 6-31A - 6-38 and 6-42

1шт.

See Figure 6-24 for remanufactured transmission part numbers.

1шт.

123843A1

TRANSMISSION

ASSEMBLY - four wheel drive, Includes: Ref. 1 - 21 and parts in Figures 6-24, 6-28 and 6-31A - 6-44

1шт.

See Figure 6-24 for remanufactured transmission part numbers.

1шт.

1

181199A3

PUMP

ASSEMBLY - oil, transmission, replaces 181199A2 pump, Includes: Ref. 2 - 21, no longer available, order 181199A4 in Figure 6-31A

1шт.

1

181199A4R

REMAN-HYD PUMP

Reman for new P/N 181199A3

1шт.

1

181199A4C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

181143A1

SHAFT

- small, not available for service, order 181199A4 pump in Figure 6-31A

1шт.

3

181270A1

SPRING

- detent, not available for service, order 181199A4 pump in Figure 6-31A

1шт.

3a

192803A1

SPLIT PIN/SAFETY PIN

PIN - valve

1шт.

4

198713A1

WASHER

STOP - spring, not available for service, order 181199A4 pump in Figure 6-31A

1шт.

5

181109A1

SPLIT PIN

PIN - roll, 5 x 22 mm, not available for service, order 181199A4 pump in Figure 6-31A

2шт.

6

192802A1

PISTON

VALVE - piston

1шт.

7

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

Not available for service, Order 181199A4 pump in Figure 6-31A Hex Soc Hd, M6 x 25, 8.8

2шт.

8

NSS

NOT SOLD SEPARAT

SUPPORT - pump

1шт.

9

181145A1

BALL

- check, not available for service, order 181199A4 pump in Figure 6-31A

1шт.

10

181214A1

SPRING

- detent, not available for service, order 181199A4 pump in Figure 6-31A

1шт.

11

198712A1

SPLIT PIN/SAFETY PIN

GUIDE - spring, not available for service, order 181199A4 pump in Figure 6-31A

1шт.

12

181215A1

BUSHING

- pump support, small, not available for service, order 181199A4 pump in Figure 6-31A

1шт.

13

181217A1

BUSHING

- pump support, large, not available for service, order 181199A4 pump in Figure 6-31A

1шт.

14

181216A1

BUSHING

- pump housing, not available for service, order 181199A4 pump in Figure 6-31A

1шт.

15

181205A1

OIL SEAL

SEAL - oil, pump housing

1шт.

16

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

6шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - oil pump

1шт.

18

181269A1

PINION

GEAR - large, 23 teeth, not available for service, order 181199A4 pump in Figure 6-31A

1шт.

19

181142A1

O-RING,2.5mm Thk x 183mm ID, 70 Duro

- pump housing

1шт.

20

246767A1

BEARING, NEEDLE

BEARING - needle, replaces 181134A1 bearing, not available for service, order 181199A4 pump in Figure 6-31A

1шт.

21

181218A1

PINION

GEAR - small, 12 teeth, not available for service, order 181199A4 pump in Figure 6-31A

1шт.
