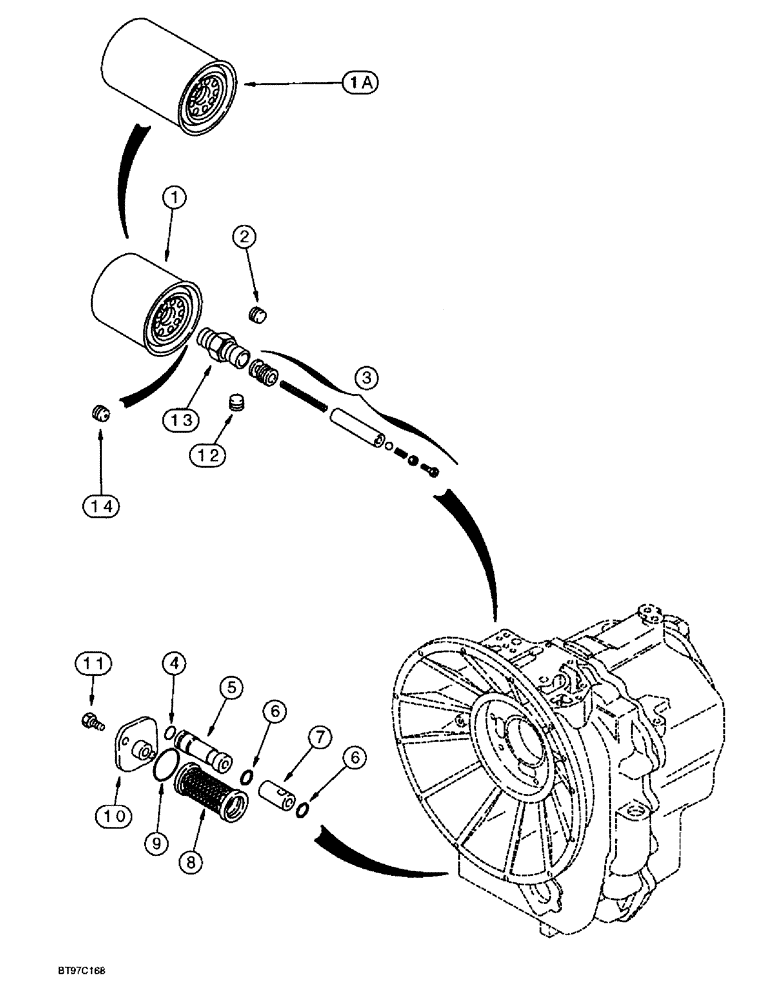

Запчасти Case 580SL (6-24) - TRANSMISSION ASSEMBLY, OIL FILTERS, TWO WHEEL AND FOUR WHEEL DRIVE (06) - POWER TRAIN

123842A1

TRANSMISSION

TRANSMISSION ASSEMBLY - two wheel drive, new, Includes: Ref. 1 - 14 and parts in Figures 6-26, 6-30 - 6-38 and 6-42

1шт.

123842A1R

REMAN-TRANSMISSION

580SL Two Wheel Drive, **Note - The Supplier Part Number For Case P/N 123842A1R Is 131142, If The Unit Being Removed From The Tractor Does Not Have This Supplier Number On It, Do Not Order 123842A1R As A Replacement

1шт.

123842A1C

CORE-TRANSMISSION

Return Number

1шт.

123843A1

TRANSMISSION

TRANSMISSION ASSEMBLY - four wheel drive, new, Includes: Ref. 1 - 14 and parts in Figures 6-28 - 6-44

1шт.

123843A1R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

123843A1C

CORE-TRANSMISSION

Return Number

1шт.

1

181167A1

FILTER, ENGINE OIL

FILTER, OIL FILTER - oil, cartridge, transmission, tractor P.I.N. JJG0189018 thru JJG0198872; may have been used with a 6 mm orifice plug, Ref 14, under transmission filter on some models, also remove this plug; no longer used, order 254686A1 filter

1шт.

To identify which filter is fitted on your unit, see the part number stamped on your filter.

1шт.

1a

254686A1

FILTER CARTRIDGE,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

FILTER, OIL FILTER - oil, cartridge, transmission, 152 mm (6 inch) long

1шт.

To identify which filter is fitted on your unit, see the part number stamped on your filter.

1шт.

2

181101A1

PLUG,M14 x 1.5

PLUG - oil, 14-1.5 mm, used on four wheel drive models only

1шт.

3

181274A1

REPAIR KIT

KIT - valve, used on four wheel drive models only

1шт.

Part of Seal Kit, P/N 278836A1

1шт.

4

181141A1

O-RING,17.12mm ID x 2.62mm Width

O-RING - small, used on four wheel drive models only

1шт.

Part of Seal Kit, P/N 278836A1

1шт.

5

181196A1

PLUG

PLUG - bypass valve, used on four wheel drive models only

1шт.

6

190426A1

O-RING

O-RING - bypass valve, cylinder, one (1) used at each end of Ref. 7, cylinder bypass valve, used on four wheel drive models only

2шт.

Part of Seal Kit, P/N 278836A1

1шт.

7

190433A1

CYLINDER

CYLINDER - bypass valve, used on four wheel drive models only

1шт.

8

278534A1

FILTER SCREEN

FILTER - oil, replaces 181168A1 filter

1шт.

9

100748A1

O-RING,1.421" ID x 1.699" OD x 0.139"

O-RING - sealing

1шт.

Part of Seal Kit, P/N 278836A1

1шт.

Part of Seal Kit, P/N 278302A1

1шт.

10

181219A1

COVER

COVER - access, oil filter

1шт.

11

614-8018

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 8-1.25 x 18 mm

2шт.

12

181102A1

PLUG

PLUG - oil, used on four wheel drive models only

1шт.

13

181202A1

FITTING

CONNECTOR - straight, used with Ref. 1 filter, no longer used, not required with 254686A1 filter

1шт.

14

190445A1

PLUG

PLUG - orifice, 6 mm hole through center, used under 181167A1 transmission filter on two wheel or four wheel drive tractor P.I.N. JJG0189018 thru JJG0197623; no longer used, remove if replacing 181167A1 filter with 254686A1 filter

1шт.

278302A1

SET OF PARTS

KIT - seal, transmission overhaul, two wheel drive, Includes: Ref. 9, also see kit parts on Figures 6-26, 6-32 - 6-38 and 6-42

1шт.

278836A1

SET OF PARTS

KIT - seal, transmission overhaul, four wheel drive, Includes: Ref. 3, 4, 6, and 9, also see kit parts on Figures 6-28 and 6-32 - 6-44

1шт.
