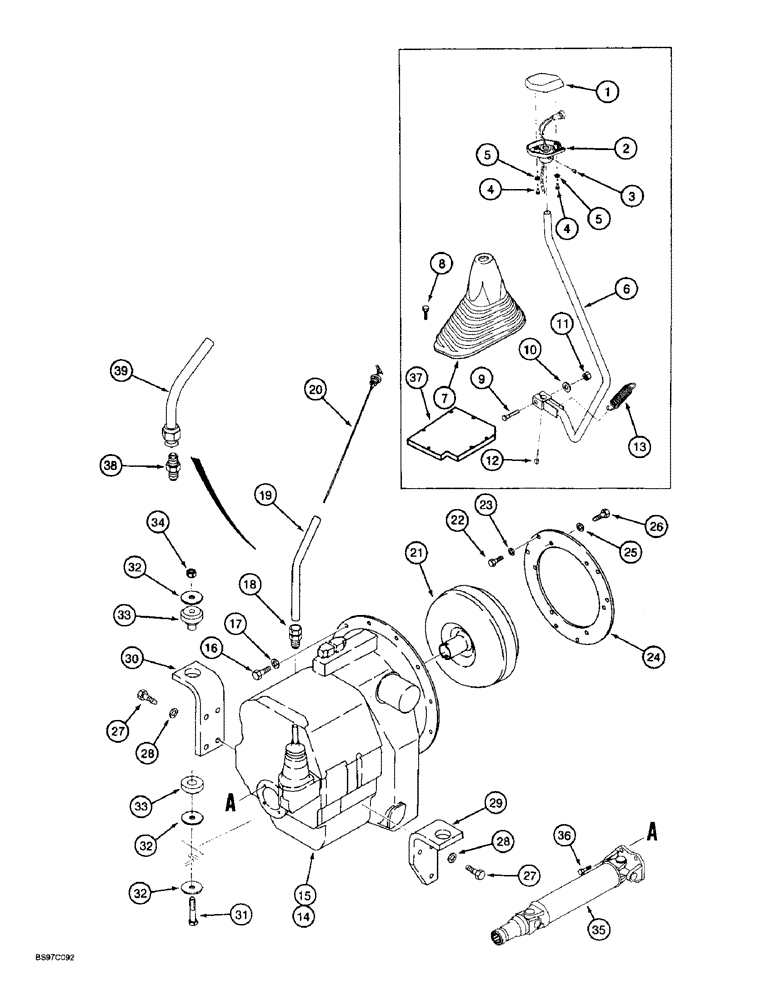

Запчасти Case 580SL (6-22) - TRANSMISSION MOUNTING, DRIVE SHAFT, DIPSTICK, AND GEAR SHIFT LEVER (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
187714A1
KNOB
Upper, Cover
1шт.
2
187715A1
KNOB
Lower
1шт.
3
484-6316
SET SCREW,Hex Soc, 5/16"-24 x 3/8"
SCREW - set, hex socket headless, 5/16 NF x 3/8 inch, half dog point
1шт.
4
459-11014
SCREW,Pan HD, #10 - 32 x 7/8"
- machine, pan head slotted, No. 10 NF x 7/8 inch
2шт.
5
493-41020
LOCK WASHER,Ext Tooth, #10
WASHER, LOCK, Ext Tooth, #10
2шт.
6
179689A1
LEVER
- transmission gear shift, see Figure 4-10 for clutch cutout harness and switch
1шт.
7
190618A1
BELLOWS
BOOT - transmission gear shift lever
1шт.
8
280-16516
SELF-TAP SCREW,Hex Wash Hd, #10 x 1"
SCREW - self-tapping, hex washer head, No. 10-16 x 1 inch
4шт.
9
828-12055
BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9
- hex, 12 - 1.75 x 55 mm, class 10.9, Torque to 80-95 ft/lbs.
1шт.
10
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
1шт.
11
829-1412
NUT,M12, Cl 10.9
- hex, 12 mm - 1.75, class 10, Torque to 80-95 ft/lbs.
1шт.
12
126-116
WOODRUFF KEY,#9, 3/16" x 3/4", HT
1шт.
13
143370A1
SPRING
- return, shift lever
1шт.
14
123842A1
TRANSMISSION
ASSEMBLY - two wheel drive, parts list Figures 6-24, 6-26, 6-30 - 6-39A and 6-42
1шт.
See Figure 6-24 for remanufactured transmission part numbers.
1шт.
15
123843A1
TRANSMISSION
ASSEMBLY - four wheel drive, parts list Figures 6-24 and 6-28 - 6-44
1шт.
See Figure 6-24 for remanufactured transmission part numbers.
1шт.
16
627-10035
BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd
- hex, full threads, 10 - 1.5 x 35 mm, class 10.9
12шт.
17
496-21041
WASHER,13/32" x 13/16" x .089", HDN
- flat, 13/32 x 13/16 x 3/32", hardened
12шт.
18
222-3006
FITTING,1 1/2"-12 x 3/4" NPT
ADAPTER - compression, 1 tube OD x 3/4 inch PT, used with 121659A1 tube, Ref 19, if used
1шт.
19
121659A1
TUBE,25.4 mm OD, 268, 153 mm Length
- transmission dipstick, no longer available, order 237948A1 tube and 218-459 adapter, Ref 38 and 39
1шт.
20
121658A1
DIPSTICK,492mm L
- oil level, transmission
1шт.
21
1995137C1
CONVERTER
- torque, new
1шт.
21
1995137C1R
REMAN-TORQUE CONVERT
Converter - Torque, Remanufactured, Component Parts Not Serviced Separately
1шт.
21
1995137C1C
CORE-TORQUE CONVERTR
Return Part Number - Torque Converter Core, Use This Part Number to Return Torque Converter for Credit when using a Remanufactured Assembly
1шт.
22
428-510
BOLT,Hex, 5/16" - 24 x 5/8", Gr 8
- hex, 5/16 NF x 5/8 inch, grade 8
6шт.
23
A15672
WASHER,8.74mm ID x 17.48mm OD x 1.52mm Thk
- flat, hardened, special
6шт.
24
A178706
PLATE
- adapter, torque converter to engine flywheel
1шт.
25
496-21041
WASHER,13/32" x 13/16" x .089", HDN
- flat, 13/32 x 13/16 x 3/32", hardened
6шт.
26
626-10016
BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd
- hex, full threads, 10-1.5 x 16 mm, class 10.9
6шт.
27
614-12040
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd
- hex, full threads, 12-1.75 x 40 mm
7шт.
28
896-15012
WASHER,13.5mm ID x 28mm OD x 4mm Thk
- flat, 13.5 x 28 x 4 mm, hardened
7шт.
29
184791A1
SUPPORT
BRACKET - mounting, transmission, right-hand
1шт.
30
185338A1
SUPPORT
BRACKET - mounting, transmission, left-hand
1шт.
31
814-16110
BOLT,Hex, M16 x 2 x 110mm, Cl 8.8
- hex, 16 - 2.0 x 110 mm
2шт.
32
CASD35009
WASHER,16.67mm ID x 63.5mm OD
- flat, special, 5/8 inch, hardened
6шт.
35
119045A1
DRIVE SHAFT
SHAFT ASSEMBLY - drive, transmission to rear axle, parts list Figure 6-62
1шт.
36
608-12025
BOLT,Hex, M12 x 25mm, Cl 10.9
- hex, self-locking, 12-1.75 x 25 mm, class 10.9
4шт.
37
183175A1
SEAL
- foam, transmission control lever, installed between firewall and flange on four speed shift lever boot, cab models only
1шт.
38
218-459
HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF
ADAPTER - straight, 1-5/16-12 flare x 3/4 inch PT
1шт.
39
237948A1
TUBE,25.4 mm OD
- transmission dipstick
1шт.
Выбрано товаров: 43
