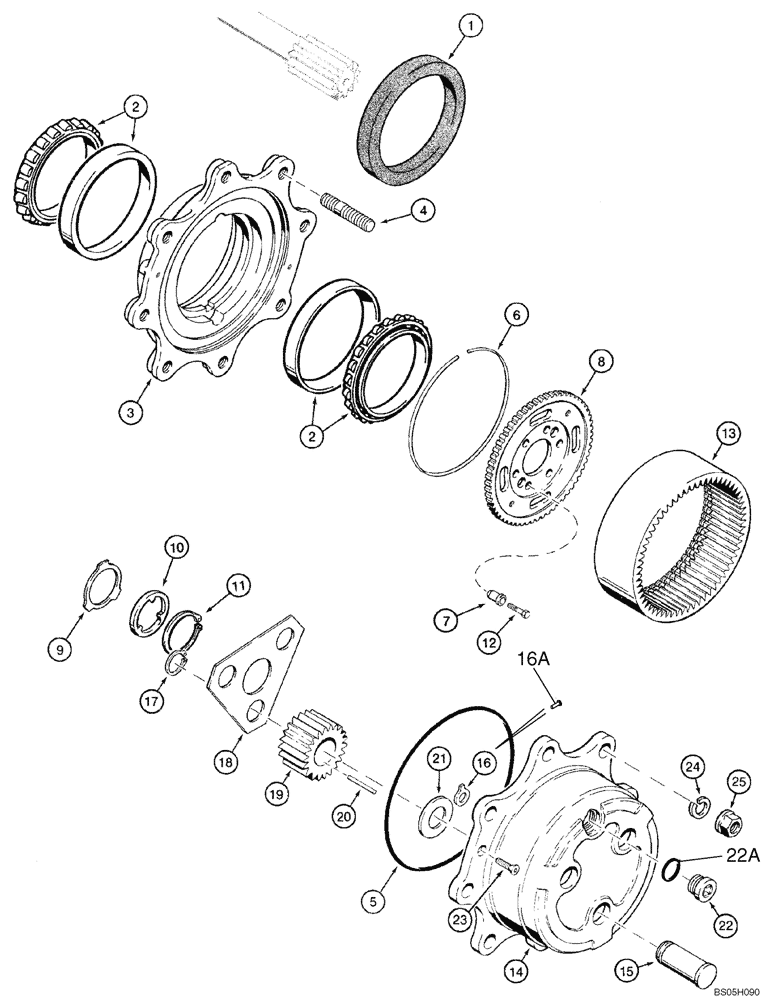

Запчасти Case 580SL (6-12) - FRONT DRIVE AXLE, PLANETARY (06) - POWER TRAIN

113561A1

AXLE

ASSEMBLY - front drive, Carraro No. 131204, Includes: Ref. 1 - 25 and parts in Figures 6-04 - 6-10 and 6-14 and 6-16

1шт.

113561A3R

REMAN-AXLE

Reman for new P/N 113561A1

1шт.

113561A3C

CORE-AXLE

Return Number

1шт.

1

311569A1

OIL SEAL,130mm ID x 160mm OD x 14mm Thk

130 ID x 160 OD x 14 wide; Replaces 1984938C1

2шт.

2

1966169C1

BEARING CONE,95 mm ID x 135 mm OD x 20 mm

BEARING - tapered roller, hub

2шт.

3

144466A1

HUB

ASSEMBLY - front drive axle, Includes: Ref. 3 and 4

2шт.

3

NSS

NOT SOLD SEPARAT

HUB - wheel attaching

1шт.

4

100556A1

STUD

- hub, special

8шт.

5

100552A1

O-RING,215.57mm ID x 220.81mm OD x 2.62mm Thk

- wheel hub

2шт.

6

100559A1

SPECIAL RING

RING - backup, wheel hub O-ring

2шт.

7

116426A1

BUSHING

- carrier

12шт.

8

116427A1

GEAR

CARRIER - ring gear

2шт.

9

100565A1

WASHER, THRUST

WASHER - thrust

2шт.

10

100550A1

THRUST WASHER

- thrust

2шт.

11

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

RING - snap

2шт.

12

116425A1

BOLT

BOLT - hex, self-locking, special

12шт.

13

100561A1

GEAR

- ring, planetary

2шт.

14

100554A1

PINION CARRIER

PLANETARY ASSEMBLY - front drive axle, Includes: Ref. 14 - 22

2шт.

14

100553A1

HOUSING ASSY.

CARRIER ASSEMBLY - planetary, Includes: Ref. 14 - 16

2шт.

14

NSS

NOT SOLD SEPARAT

CARRIER - planetary

1шт.

15

NSS

NOT SOLD SEPARAT

SHAFT - pinion gear

3шт.

16

1966579C1

WASHER

DISC - axle shaft; If Used

2шт.

item 16 #1966579c1 no longer used. Use #k395093

1шт.

16a

K395093

HEADED PIN,12mm OD x 15mm L

Locking; If Used

2шт.

17

800-1134

SNAP RING,M34, Ext

RING, SNAP, , Retaining M34, Ext

6шт.

18

100555A1

LARGE PLATE

RETAINER - pinion gear

2шт.

19

K395114

GEAR

GEAR - sun - Not Shown

2шт.

19

100562A1

GEAR, PLANETARY

GEAR - pinion, planetary

6шт.

20

114295A1

10 NEEDLE BRG KIT

BEARING - needle, planetary gear, packet of 10

9шт.

21

K395091

THRUST WASHER

WASHER, THRUST, Pinion gear, Outer

6шт.

22

100557A1

PLUG, DRAIN,M30 x 2

PLUG - drain; Incl. 22A

2шт.

22a

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

23

905876R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 10.9

Special, Planetary cover plate Hex Soc Flat Hd, M8 x 20, 10.9

4шт.

24

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 25/32 x 1-3/8 x 1/8 inch, hardened

16шт.

25

825-11418

NUT,M18 x 1.5, Cl 8

- hex, 18 mm-1.5

16шт.

B17575

FLUID

SEALANT - black RTV silicone, 3 ounce (89 ml) tube, planetary cover to hub, not shown

1шт.
