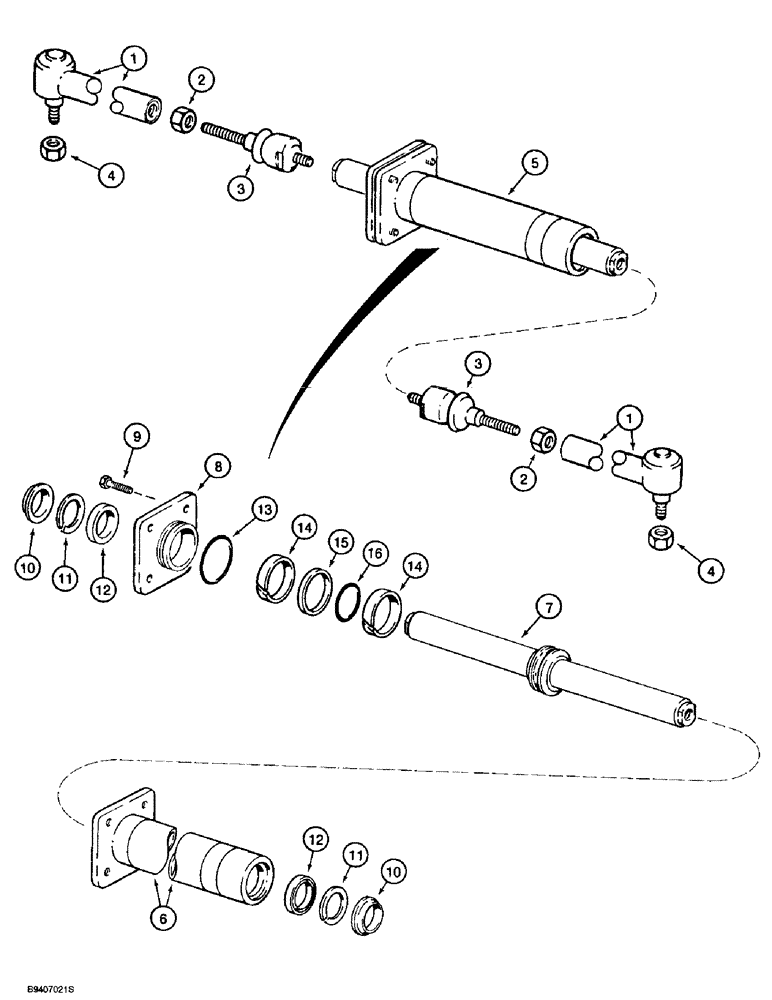

Запчасти Case 580SL (6-08) - FRONT DRIVE AXLE, STEERING CYLINDER (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
113561A1
AXLE
ASSEMBLY - front drive, Carraro No. 131204, Includes: Ref. 1 - 16 and seal kit and parts in Figures 6-04, 6-06 and 6-10 - 6-16
1шт.
113561A3R
REMAN-AXLE
Reman for new P/N 113561A1
1шт.
113561A3C
CORE-AXLE
Return Number
1шт.
1
87710157
STEERING TIE-ROD,26mm OD x 265mm L
JOINT - ball, swivel side
1шт.
2
934727R1
THIN NUT,Thin, M18 x 1.5, Cl 04
- hex, special
1шт.
4
905839R1
LOCK NUT,M18 x 1.5, Thin
NUT - hex, self-locking, 18 x 1.5 mm
2шт.
5
144458A1
CYLINDER
ASSEMBLY - steering, 4WD, order D149739 kit to service seals, see below, Includes: Ref. 6 - 16
1шт.
5
85805978R
REMAN-HYD CYLINDER
580SL LOADER BACKHOE, ASSEMBLY, steering, Reman For New PN 144458A1
1шт.
5
85805978C
CORE-HYD CYLINDER
Return Number
1шт.
6
D149738
STEERING CYLINDER
TUBE - cylinder
1шт.
7
144459A1
ROD
- piston
1шт.
8
D149737
GLAND
- cylinder
1шт.
9
114296A1
BOLT
BOLT - self-locking, special, steering cylinder, for service order 100524A1 bolt and 892-11012 washer
4шт.
10
NSS
NOT SOLD SEPARAT
WIPER - rod
2шт.
Part of Steering Cylinder Seal Kit, P/N D149739
1шт.
11
NSS
NOT SOLD SEPARAT
RING - backup
2шт.
Part of Steering Cylinder Seal Kit, P/N D149739
1шт.
12
NSS
NOT SOLD SEPARAT
SEAL - rod
2шт.
Part of Steering Cylinder Seal Kit, P/N D149739
1шт.
13
NSS
NOT SOLD SEPARAT
O-RING - gland
1шт.
Part of Steering Cylinder Seal Kit, P/N D149739
1шт.
14
NSS
NOT SOLD SEPARAT
RING - wear
2шт.
Part of Steering Cylinder Seal Kit, P/N D149739
1шт.
15
NSS
NOT SOLD SEPARAT
SEAL - piston
1шт.
Part of Steering Cylinder Seal Kit, P/N D149739
1шт.
16
NSS
NOT SOLD SEPARAT
O-RING - expander
1шт.
Part of Steering Cylinder Seal Kit, P/N D149739
1шт.
D149739
SEAL PACKAGE
KIT - seal, steering cylinder, for rod, gland, and piston, Includes: Ref. 10, 11, 12, 13, 14, 15, and 16
1шт.
B17575
FLUID
SEALANT - black RTV silicone, 3 ounce (89 ml) tube, cylinder flange to cylinder, not shown
1шт.
