Запчасти Case 580SL (6-04) - FRONT DRIVE AXLE, AXLE HOUSING (06) - POWER TRAIN

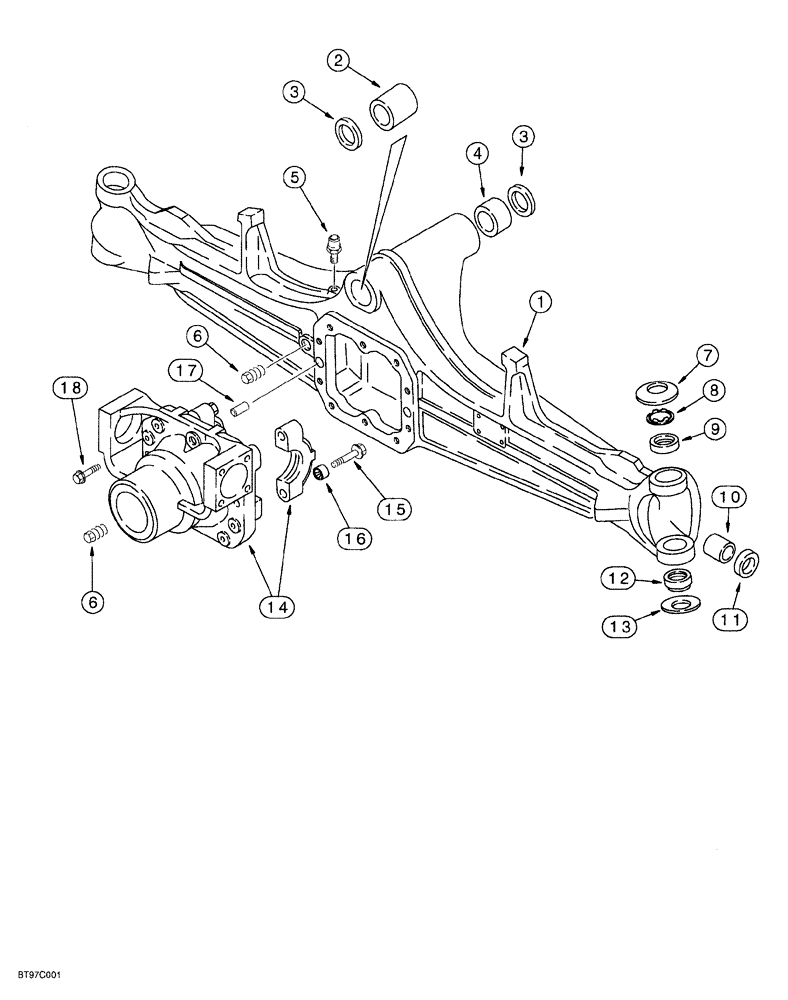

Схема запчастей Case 580SL - (6-04) - FRONT DRIVE AXLE, AXLE HOUSING (06) - POWER TRAIN
10
6
5
9
11
13
18
1
6
3
3
15
8
7
4
12
14
16
2
17

Артикул

Название

Примечание

Количество

113561A1

AXLE

ASSEMBLY, front drive, Carraro No. 131204, parts list Figures 6-4 - 6-16, Includes: Refs. 1-18

1шт.

113561A3R

REMAN-AXLE

Reman for new P/N 113561A1

1шт.

113561A3C

CORE-AXLE

Return Number

1шт.

1

144453A1

HOUSING

front axle; Used With 144455A1 and 144456A1 Swivel Housings Which Use 100529A1 45 x 65 x 12 Seal; Ref 1, 2, 4 on Fig 6-6; No Longer Available, Order 402357A1 Housing, (2) 85824343 Seal, Ref 1, 11 Below

1шт.

1

402357A1

AXLE HOUSING

Front Axle; Used With 397653A1 and 397654A1 Swivel Housings Which Use 45 x 60 x 16 Seal, Ref 1, 2, 4 on Fig 6-6

1шт.

2

D149725

BUSHING,59.75 OD x 54mm L

rear pivot

1шт.

3

N14367

SEALING RING,50mm ID x 60.1mm OD x 4mm Thk

bushing, front and rear

2шт.

4

D149726

BUSHING,6.20mm ID x 9.60mm OD x 6mm L

front pivot

1шт.

5

1966149C1

BREATHER

axle housing

1шт.

6

A156873

PLUG, DRAIN,M22 x 1.5

Housing and Carrier

2шт.

7

122270A1

BELLEVILLE WASHER,36mm ID x 71mm OD x 2mm Th

Belleville, upper

2шт.

8

136990A1

WASHER

WASHER spacer, front axle

2шт.

9

100522A1

BUSHING

housing

2шт.

10

1966186C1

BUSHING

housing

2шт.

11

1966191C1

OIL SEAL

Used With 144453A1 Housing, Ref 1 Above

2шт.

11

85824343

OIL SEAL,30mm ID x 44mm OD x 14mm Thk

30 x 44 x 11 mm thk; CV Joint Differential Side; Used With 402357A1 Housing, Ref 1 Above; Replaces 311565A1

2шт.

12

100520A1

SPHERICAL BEARING,25mm ID x 47mm OD x 15mm W

BUSHING spherical, two piece, housing, lower

2шт.

13

122268A1

BELLEVILLE WASHER

Belleville, lower

2шт.

144454A1

SUPPORT ASSY.

CARRIER, differential, Includes: Refs. 14-16

1шт.

14

NSS

NOT SOLD SEPARAT

CARRIER, differentail

1шт.

15

S301065

BOLT,Hex Flg, M14 x 75, 12.9

BOLT, Special

4шт.

16

1966136C1

BUSHING,15mm ID x 18mm OD x 12mm L

BUSHING centering, carrier

4шт.

17

1966138C1

DOWEL

dowel, Serial Range: housing-carrier

2шт.

18

5194169

BOLT,Hex Flg, M12 x 33, 12.9

BOLT, Carrier to housing

10шт.

B17575

FLUID

SEALANT black RTV silicone, 89 ml (3 ounce) tube, differential carrier to axle housing, not shown

1шт.

Выбрано товаров: 25
