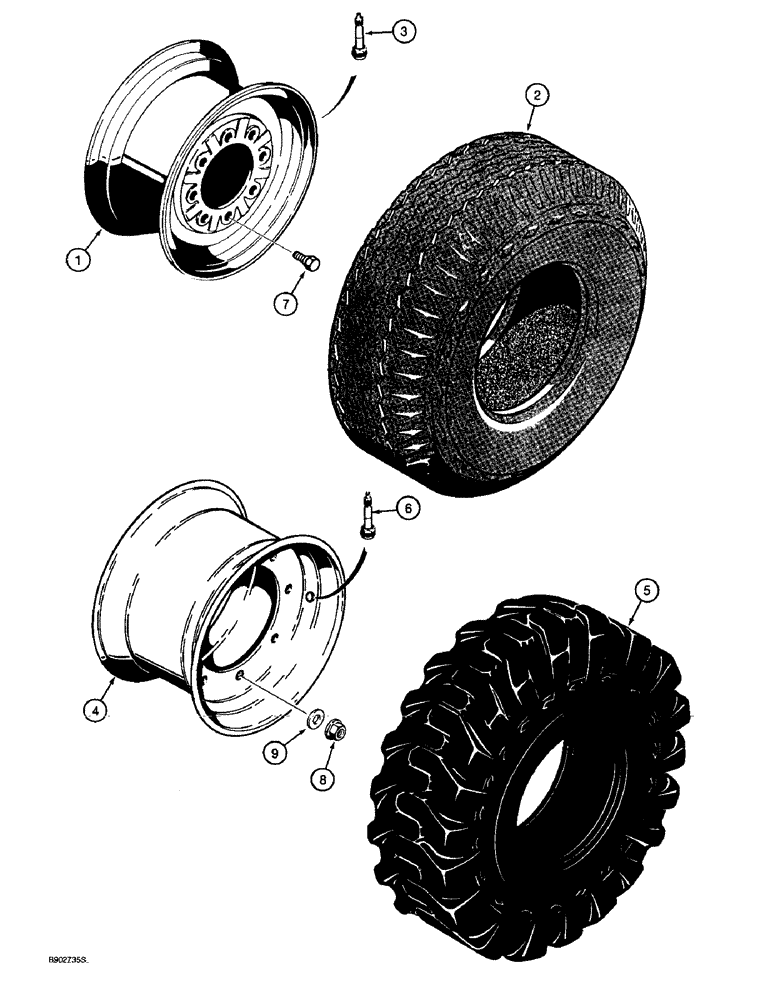

Запчасти Case 580SL (5-18) - FRONT WHEELS AND TIRES (05) - STEERING

1

D125223

WHEEL,W8Lx16, 8 Holes, CASE Power Tan

- rim, for 11L x 16 - 10 PR F3 tires - 2WD Models

2шт.

2

REF

INSTRUCTION

TIRE - front, purchase locally, for 11L x 16 - 10 PR F3 tires - two wheel drive models

2шт.

Consult your parts buyers guide for applicable tire programs currently being offered.

1шт.

3

A38261

VALVE

- stem, tire inflation, for 11L x 16 - 10 PR F3 tires - two wheel drive models

2шт.

4

119243A1

WHEEL,16.5x9.75, 8 Holes, CASE Power Tan

Rim, 8-hole pattern, for 12 x 16.5 - 8 PR tires - Four wheel drive models

2шт.

5

REF

INSTRUCTION

TIRE - front, purchase locally, for 12 x 16.5 - 8 PR tires - four wheel drive models

2шт.

Consult your parts buyers guide for applicable tire programs currently being offered.

1шт.

6

A38261

VALVE

- stem, tire inflation, for 12 x 16.5 - 8 PR tires - four wheel drive models

2шт.

7

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

Retaining, 2WD models

16шт.

8

825-11418

NUT,M18 x 1.5, Cl 8

- hex, 18 mm-1.5, special, wheel, four wheel drive models

16шт.

9

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 25/32 x 1-3/8 x 1/8 inch, hardened, wheel nuts - four wheel drive models

16шт.
