(5-12) - STEERING CYLINDER, TWO WHEEL DRIVE FRONT AXLE

Запчасти Case 580SL (5-12) - STEERING CYLINDER, TWO WHEEL DRIVE FRONT AXLE (05) - STEERING

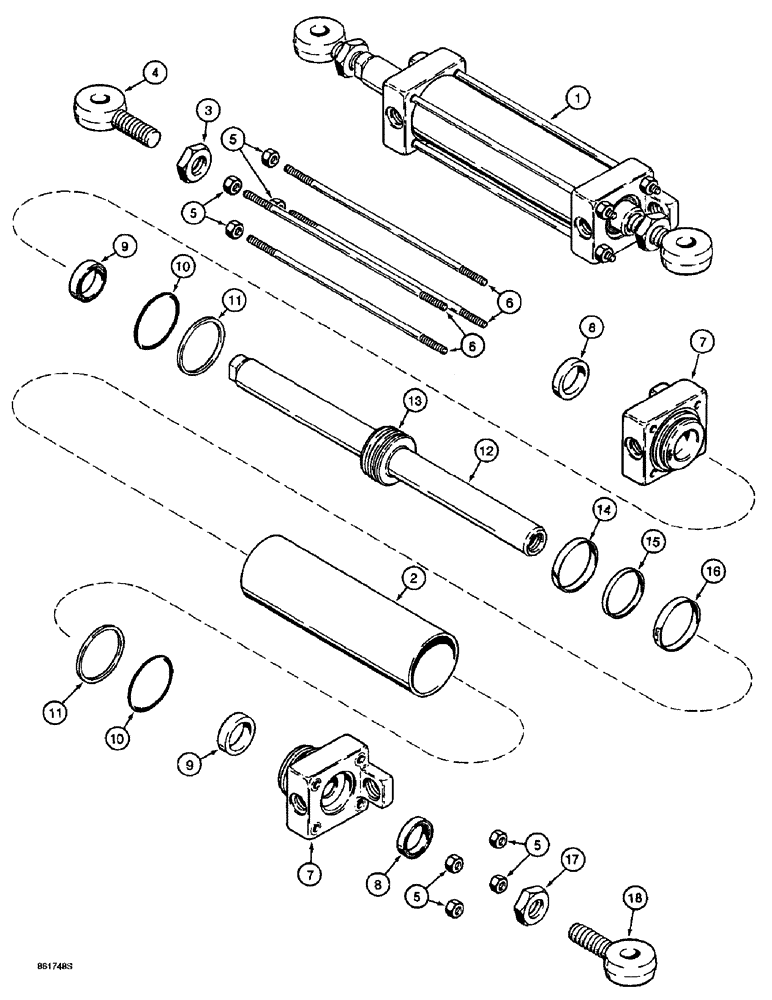

Схема запчастей Case 580SL - (5-12) - STEERING CYLINDER, TWO WHEEL DRIVE FRONT AXLE (05) - STEERING
5
5
5
12
13
1
2
15
4
3
6
7
11
8
16
6
14
17
8
9
7
9
11
10
10
18
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

G107720

CYLINDER,Double Acting, 38.1mm Rod, 85.1mm Stroke

ASSEMBLY, front axle, two wheel drive, 70 (2-3/4) ID x 170 mm (6-45/64 inch) stroke steering, Includes: Ref. 2 - 18

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

See Figure 6-08 for the four wheel drive front axle steering cylinder.

1шт.

1

G107720R

REMAN-HYD CYLINDER

580SL , 2WD

1шт.

1

G107720C

CORE-HYD CYLINDER

Return Number

1шт.

2

G106808

TUBE,69.85 mm ID x 79.76 mm OD x 233.60 mm L

- cylinder

1шт.

3

129-369

JAM NUT,Jam, 7/8"-14, G5

LH thread Jam, 7/8"-14, G5

1шт.

4

G106832

BALL JOINT

EYE - rod, left-hand thread

1шт.

5

425-106

NUT,3/8"-16, Cl 5

8шт.

6

G106817

TIE-ROD

ROD - tie, 338 mm (13-5/16 inch) long, cylinder

4шт.

7

G106810

CYLINDER END CAP,50.83mm Bore, 38.25mm Rod, 102mm W

GLAND - cylinder

2шт.

8

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit, P/N G110045

1шт.

9

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of Seal Kit, P/N G110045

1шт.

10

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

Gland -230, 70 Duro, 2.484" ID x .139" Thk

1шт.

Part of Seal Kit, P/N G110045

1шт.

11

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of Seal Kit, P/N G110045

1шт.

G107721

ROD ASSY.

ROD ASSEMBLY - piston, 1-1/2 inch (38 mm) diameter, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

13

NSS

NOT SOLD SEPARAT

PISTON - cylinder

1шт.

14

G105187

RING

- wear, piston

1шт.

Part of Seal Kit, P/N G110045

1шт.

15

G104439

RING

- seal, inner

1шт.

Part of Seal Kit, P/N G110045

1шт.

16

G104454

SEALING RING,Locking, 65.89mm ID x 71.02mm OD x 6.96mm Thk

- piston, expandable, outer

1шт.

Part of Seal Kit, P/N G110045

1шт.

17

425-1514

JAM NUT,Jam, 7/8"-14, G5

- hex, jam, 7/8 inch NF

1шт.

18

G106813

BALL JOINT

EYE - rod, right-hand thread

1шт.

G110045

KIT

- seal, Includes: Ref. 8-11 and 14-16.

1шт.
