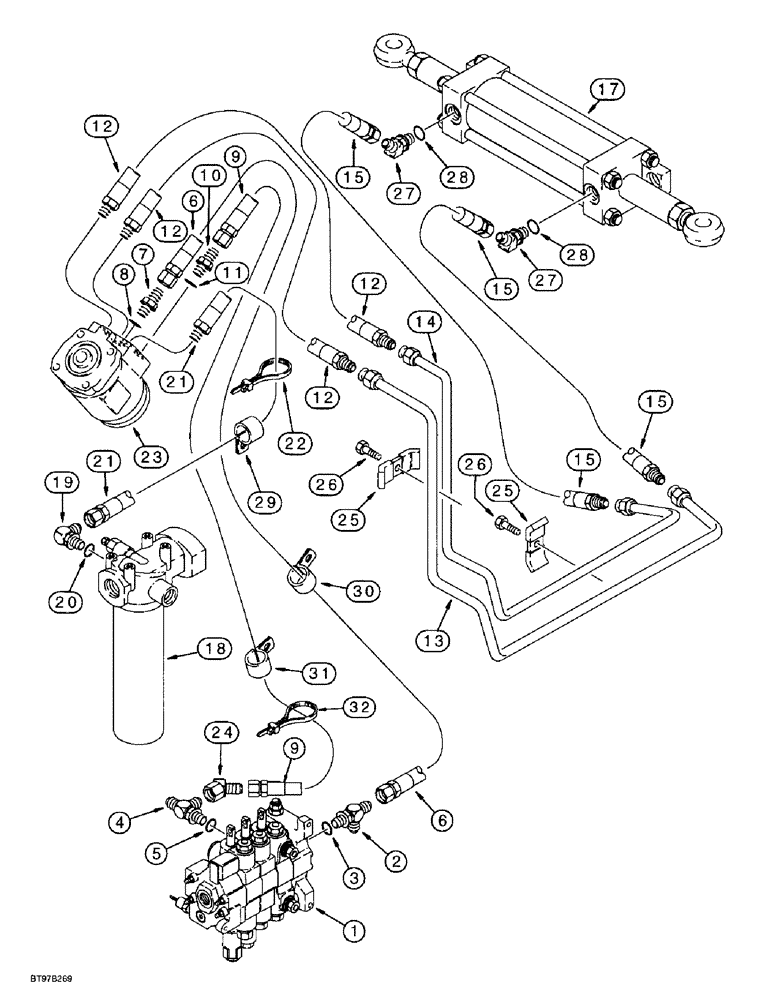

Запчасти Case 580SL (5-04) - STEERING HYDRAULIC CIRCUIT (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE ASSEMBLY - loader control, for correct assembly and components, see Figure 8-084 or 8-086
1шт.
2
218-5243
TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
- 9/16-18 inch flare branch x flare x adj O-ring boss, open end of tee connects to signal hose, Ref. 16, shown on Figure 8-038 or Ref. 26, shown on Figure 8-040, Includes: Ref. 3
1шт.
3
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
4
218-5241
TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
- 7/8-14 inch flare branch x flare x adj O-ring boss, lower inlet port, open end of tee connects to swing supply hose, Ref. 3, see Figure 8-038 or 8-040; for 45 degree elbow used w/this tee on models w/ride control see Figure 8-078, Includes: Ref. 5, Serial Range: -JJG0193620
1шт.
4
218-5576
TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 3/4"-16
- 3/4-16 fl branch x 1-1/16-12 fl x 7/8-14 inch adj O-ring, lower inlet port, open end of tee connects to swing supply hose, Ref. 3, see Figure 8-043A; for 45 degree elbow used w/this tee on models w/ride control, see Figure 8-078, Includes: Ref. 5, Start Serial: JJG0193620
1шт.
5
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk, 218-5241 or 218-5576 tee
1шт.
6
144221A1
HOSE
- 1275 mm (50-3/16 inch) long, steering pilot, steering control valve small center port to loader control valve
1шт.
7
120394A1
VALVE
- steering check, Includes: Ref. 8
1шт.
8
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk
1шт.
9
144225A1
HOSE
- 1300 mm (51-3/16 inch) long, steering pressure, loader control valve to steering control valve lower right-hand port, Serial Range: -JJG0193620
1шт.
9
224423A1
HYDRAULIC HOSE,9.65 mm ID x 1300.00 mm
- Steering pressure, Loader control valve to steering control valve RH port 9.65 mm ID x 1300.00 mm, Start Serial: JJG0193620
1шт.
10
218-5059
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 11
1шт.
11
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
12
132929A1
HOSE
- 730 mm (28-3/4 inch) long, steering control valve upper and lower left-hand, Serial Range: ports-tubes
2шт.
13
120386A1
TUBE
- lower, to steering cylinder right-hand port hose
1шт.
14
120388A1
TUBE
- upper, to steering cylinder left-hand port hose
1шт.
15
144219A1
HOSE,9.53mm ID x 485mm L
- 485 mm (19-3/32 inch) long, to right-hand and left-hand port of steering cylinder
2шт.
17
G107720
CYLINDER,Double Acting, 38.1mm Rod, 85.1mm Stroke
ASSEMBLY - 70 (2-3/4) ID x 170 mm (6-45/64 inch) stroke, steering, parts list Figure 5-12
1шт.
17
G107720R
REMAN-HYD CYLINDER
580SL
1шт.
17
G107720C
CORE-HYD CYLINDER
Return Number
1шт.
18
122536A1
HYDRAULIC OIL FILTER
FILTER ASSEMBLY - hydraulic oil, parts list Figure 8-144
1шт.
19
218-5280
ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring
- 90 degree, 3/4-16 flare x 9/16-18 inch adj O-ring boss, Includes: Ref. 20
1шт.
20
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
21
176328A1
HOSE
- 1730 mm (68-1/8 inch) long, steering return, steering control valve upper right-hand port to hydraulic oil filter
1шт.
22
L18337
CABLE TIE,9.95"-12.1" lg
STRAP - tie, 15 inch, nylon, retaining, use (1) to tie return hose, Ref. 21, to corner of crossover tube, Ref. 2, shown on Figure 7-08, use (1) to tie pilot hose, Ref. 6, and pressure hose, Ref. 9, together
5шт.
23
120421A1
PUMP, HYDRAULIC
VALVE ASSEMBLY - steering control, parts list Figure 5-11
1шт.
23
377805A1R
REMAN-STEERING VALVE
Reman For New P/N 120421A1, Valve Assembly
1шт.
23
377805A1C
CORE-STEERING VALVE
Return Part Number
1шт.
24
218-5174
ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC
- 45 degree, 7/8-14 inch flare x swivel, Serial Range: -JJG0193620
1шт.
24
218-5173
ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC
- 45 degree, 3/4-16 inch flare x swivel, if used, no longer required, Start Serial: JJG0193620
1шт.
25
D40236
CLAMP
- tube
2шт.
26
614-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
Full Thd Hex, M10 x 30, 8.8
2шт.
27
218-5136
ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
- 45 degree, 3/4-16 inch flare x adj O-ring boss, see Figure 6-3 for fittings used on four-wheel drive front axle, Incl. Ref 28
2шт.
28
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
29
515-23190
CLAMP,3/4", Insul, 3/8" Bolt
P-type 3/4", Insul, 3/8" Bolt
1шт.
30
515-22127
CLAMP,1/2", Insul, 5/16" Bolt
P-type, Replaces 49854 clamp 1/2", Insul, 5/16" Bolt
1шт.
31
515-23159
CLAMP,5/8", Insul, 3/8" Bolt
P-type, If used 5/8", Insul, 3/8" Bolt
1шт.
32
L18337
CABLE TIE,9.95"-12.1" lg
STRAP - tie, 15 inch, if used
1шт.
