Запчасти Case 580SL (4-38) - CAB TRACTOR LAMPS, STOP AND TAIL LAMPS, AND TURN SIGNAL AND FLASHER LAMPS (04) - ELECTRICAL SYSTEMS

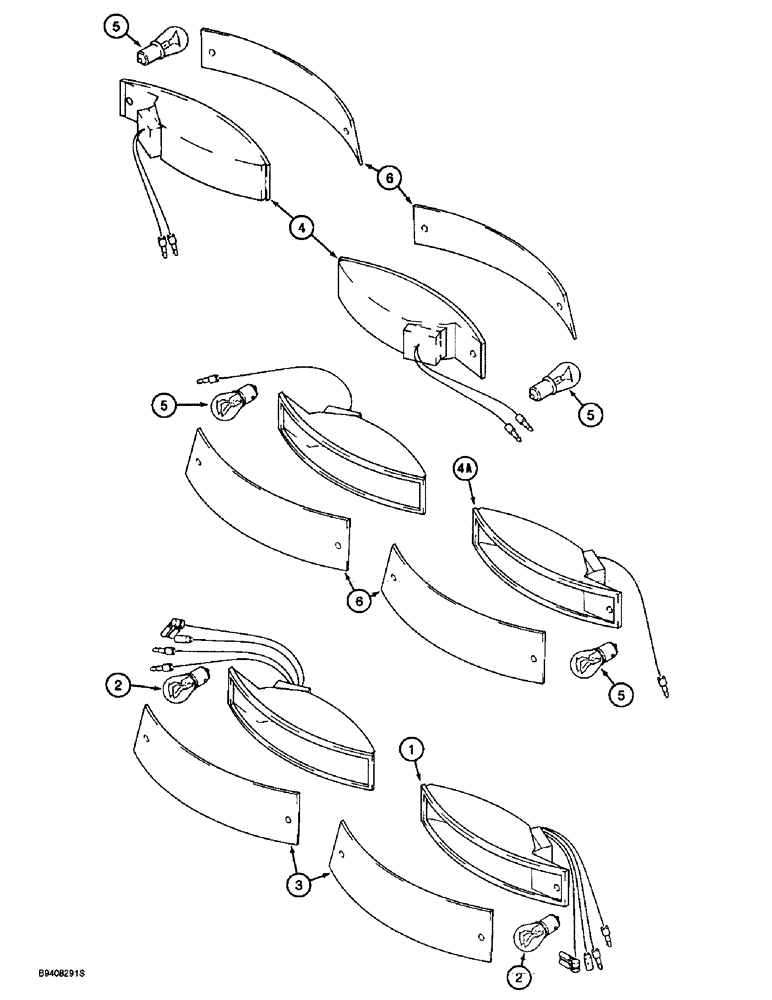

Схема запчастей Case 580SL - (4-38) - CAB TRACTOR LAMPS, STOP AND TAIL LAMPS, AND TURN SIGNAL AND FLASHER LAMPS (04) - ELECTRICAL SYSTEMS
5
4a
4
2
5
6
5
1
2
3
6
5

Артикул

Название

Примечание

Количество

131794A1

LIGHT,12V, 27W, Red

LAMP ASSEMBLY - stop and tail, red lens, right rear, lower, Includes: Ref. 1 - 3

1шт.

131795A1

LIGHT,12V, 27W, Red

LAMP ASSEMBLY - stop and tail, red lens, left rear, lower, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - lamp, complete

1шт.

2

T34857

BULB,C6, #1157, 12.8V

- lamp, No. 1157, stop and tail

1шт.

3

183749A1

LENS

- lamp, red

1шт.

131796A1

LIGHT,12V, 27W, Amber

LAMP ASSEMBLY - turn signal and flasher, amber lens, right front, Includes: Ref. 4 - 6

1шт.

183505A1

LIGHT,12V, 27W, Amber

LAMP ASSEMBLY - turn signal and flasher, amber lens, right rear, upper, Includes: Ref. 4 - 6

1шт.

131797A1

LIGHT,12V, 27W, Amber

LAMP ASSEMBLY - turn signal and flasher, amber lens, left front, Includes: Ref. 4 - 6

1шт.

183504A1

LIGHT,12V, 27W, Amber

LAMP ASSEMBLY - turn signal and flasher, amber lens, left rear, upper, Includes: Ref. 4 - 6

1шт.

320246A1

LAMP

LAMP ASSEMBLY - turn signal and flasher, amber lens, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - 131796A1 or 131797A1 lamp

1шт.

4a

NSS

NOT SOLD SEPARAT

BODY - 183504A1 or 183505A1 lamp

1шт.

5

A41264

BULB,#1156, 12V

Lamp, Turn signal and flasher #1156, 12V

1шт.

6

183748A1

LENS

- lamp, amber

1шт.

Выбрано товаров: 14
