Запчасти Case 580SL (4-36) - CANOPY TRACTOR LAMPS, STOP AND TAIL LAMPS, AND TURN SIGNAL AND FLASHER LAMPS (04) - ELECTRICAL SYSTEMS

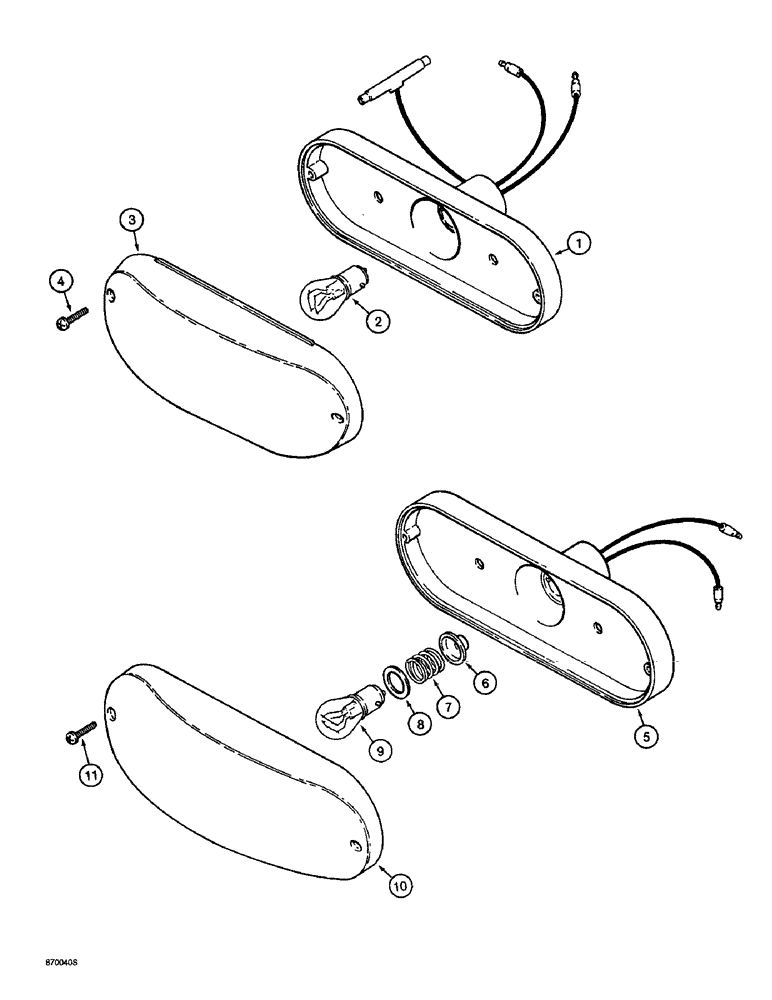

Схема запчастей Case 580SL - (4-36) - CANOPY TRACTOR LAMPS, STOP AND TAIL LAMPS, AND TURN SIGNAL AND FLASHER LAMPS (04) - ELECTRICAL SYSTEMS
6
3
10
7
8
11
5
2
1
4
9

Артикул

Название

Примечание

Количество

D121152

LAMP,12V

ASSEMBLY - stop and tail, red, Includes: Ref. 1 - 4

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - lamp, complete

1шт.

2

T34857

BULB,C6, #1157, 12.8V

- lamp, No. 1157, stop and tail

1шт.

3

N6836

LENS

- red, lamp

1шт.

4

261-14310

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

SCREW - self-tapping, pan Phillips, No. 6 NC x 5/8 inch

2шт.

D135384

LAMP,12V

ASSEMBLY - turn signal and flasher, amber, Includes: Ref. 5 - 11

4шт.

5

NSS

NOT SOLD SEPARAT

BODY AND SOCKET - lamp

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - rubber, spring retaining

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - lamp

1шт.

8

NSS

NOT SOLD SEPARAT

INSULATOR - lamp

1шт.

9

A41264

BULB,#1156, 12V

Lamp, Turn signal and flasher #1156, 12V

1шт.

10

N14283

LENS

- amber, lamp

1шт.

11

261-14310

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

SCREW - self-tapping, pan Phillips, No. 6 NC x 5/8 inch

2шт.

Выбрано товаров: 13
