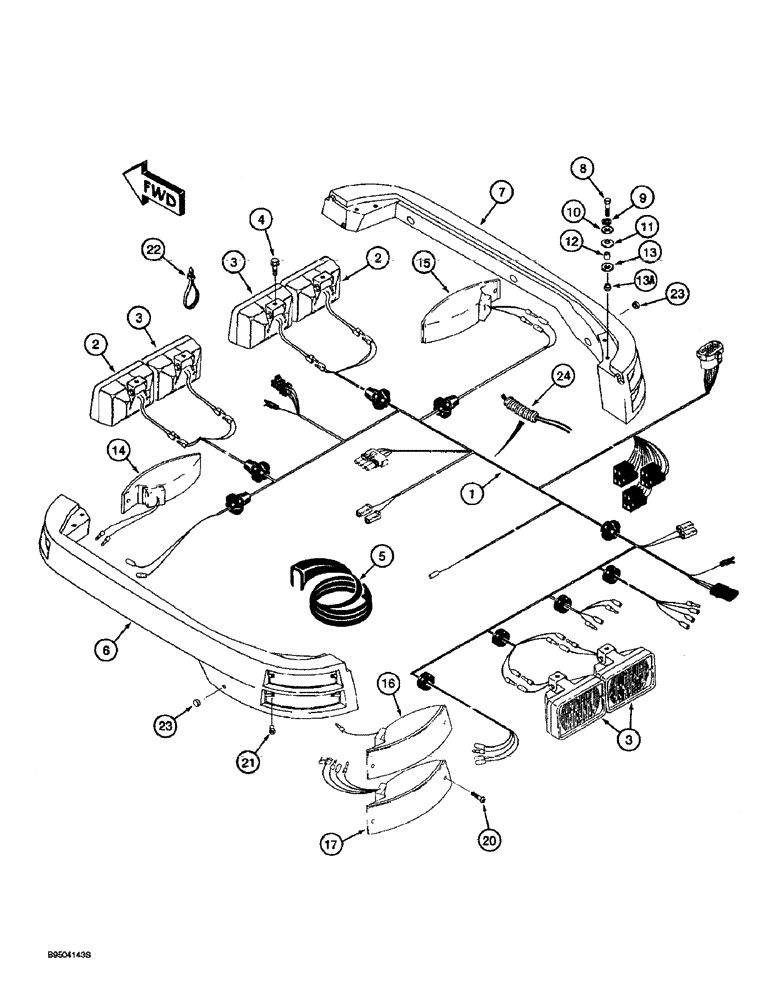

Запчасти Case 580SL (4-30) - TRACTOR LAMP ELECTRICAL CIRCUIT, WITH CAB (04) - ELECTRICAL SYSTEMS

1

189400A1

HARNESS

- cab, models without air conditioning, attaches to side console instrument harness, replaces 123810A1 and 189874A1 harness

1шт.

1a

189401A1

HARNESS

- cab, models with air conditioning, not shown, attaches to side console instrument harness, used in production

1шт.

For service order 189400A1 cab harness (Ref. 1) and 130876A1 adapter harness (Ref. 27) on Figure 4-18, replaces 132805A1 and 189875A1 harness

1шт.

2

109080A1

LAMP,12V, 50W

ASSEMBLY - front driving, parts list Figure 4-34

2шт.

3

109081A1

SPOTLIGHT

LAMP ASSEMBLY - flood and work, rear flood and front and rear work lamps, parts list Figure 4-34

6шт.

4

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

- hex serrated flange, 3/8 NC x 1/2 inch

8шт.

5

135963A2

SEAL

- 1016 mm (40 inch) long, trim, lamp mounting brackets to cab frame, no longer used

2шт.

6

187834A1

BRACKET

- left-hand lamp, includes inserts, (4) Ref 13A and (6) Ref 21, cab models

1шт.

7

187836A1

BRACKET

- right-hand lamp, includes inserts, (4) Ref 13A and (6) Ref 21, cab models

1шт.

8

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

- hex, 8 - 1.25 x 35 mm, Lamp bracket to cab frame

8шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

10

495-81001

WASHER,5/16"

- flat, 3/8 x 1-1/8 x 1/16 inch

8шт.

11

186756A1

SPRING WASHER

- Belleville

8шт.

12

183598A2

SPACER

- cab lamp bracket mounting

8шт.

13

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

8шт.

13a

181385A1

RIVET

INSERT - threaded, 8 mm-1.25

8шт.

14

131797A1

LIGHT,12V, 27W, Amber

LAMP ASSEMBLY - turn signal and flasher, amber lens, left-front, parts list Figure 4-38

1шт.

15

131796A1

LIGHT,12V, 27W, Amber

LAMP ASSEMBLY - turn signal and flasher, amber lens, right front, parts list Figure 4-38

1шт.

16

183504A1

LIGHT,12V, 27W, Amber

LAMP ASSEMBLY - turn signal and flasher, amber lens, left rear, upper, parts list Figure 4-38

1шт.

17

131795A1

LIGHT,12V, 27W, Red

LAMP ASSEMBLY - stop and tail, red lens, left rear, lower, parts list Figure 4-38

1шт.

18

183505A1

LIGHT,12V, 27W, Amber

LAMP ASSEMBLY - turn signal and flasher, amber lens, right rear, upper, not shown, parts list Figure 4-38

1шт.

19

131794A1

LIGHT,12V, 27W, Red

LAMP ASSEMBLY - stop and tail, red lens, right rear, lower, not shown, parts list Figure 4-38

1шт.

20

190-105

SCREW,Phil Pan Hd, #10 - 32 x 1 3/4"

- machine, pan Phillips, No. 10 NF x 1-3/4 inch, lamp to bracket

12шт.

21

181459A1

NUT

INSERT - No. 10 NF

12шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

7шт.

23

L60224

BUMPER

- rubber

2шт.

24

1202956C1

CONDUIT

- convoluted insulation, 16 (5/8) x 21 (53/64) x 889 mm (35 inch) long, windshield, replaces 131371C1 153 mm (6 inch) long conduit

1шт.
