Запчасти Case 580SL (4-22) - FRONT INSTRUMENT PANEL AND COVERS (04) - ELECTRICAL SYSTEMS

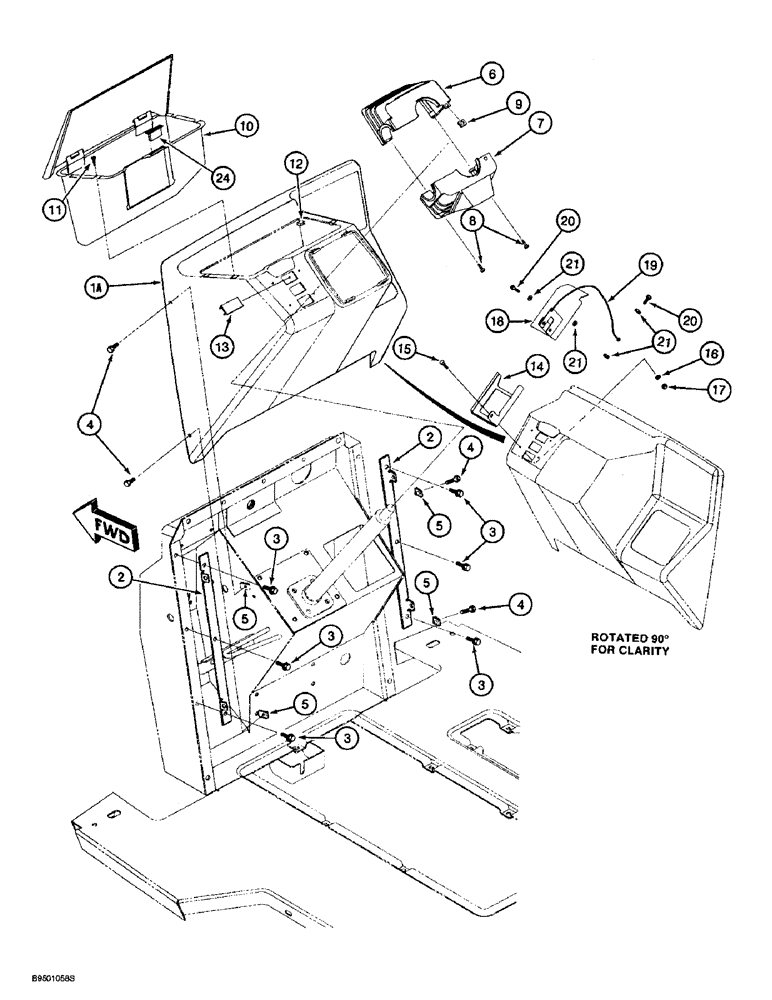

Схема запчастей Case 580SL - (4-22) - FRONT INSTRUMENT PANEL AND COVERS (04) - ELECTRICAL SYSTEMS
20
13
16
21
12
19
3
4
3
5
20
2
3
21
24
4
17
4
10
18
3
5
7
9
5
15
14
3
21
6
8
2
5
11
1a

Артикул

Название

Примечание

Количество

1

119266A1

CONSOLE

PANEL - instrument, front, cab models, item 1A shown

1шт.

If dealer is looking for rubber gasket, see Figure 9-130 Ref #12 Seal p/n 143121A1. csd 6/11/98

1шт.

1a

181316A1

CONSOLE

PANEL - instrument, front, ROPS canopy models, with four bolt holes for anti-vandalism cover

1шт.

2

137851A1

PLATE

- bar, front console mounting to firewall, no longer included in cab frame

2шт.

3

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

10шт.

4

555-2

BOLT,Hvy Hex, M6 x 20, Cl 8.8

- heavy hex flange, 6-1.0 x 20 mm, special, instrument panel to firewall

4шт.

5

833-40406

NUT,M6, U

- U-type, 6 mm - 1.0

4шт.

6

119267A2

COVER

- upper, steering column, replaces 119267A1 cover

1шт.

7

119268A1

COVER

- lower, steering column

1шт.

8

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

3шт.

9

131-861

SPRING NUT,Tinn, U, #10-24

1шт.

10

120029A1

LINING

COVER ASSEMBLY (service with 122641A1 box and 120029A1 cover, not shown)

1шт.

11

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

4шт.

12

143121A1

MOLDING

SEAL

4шт.

13

86000535

PLUG,1.427" x .62", Plastic

Upper, Used in place of dome lamp switch, If used 1.427" x .62", Plastic

1шт.

14

136450A1

SUPPORT

BRACKET - front instrument panel, anti-vandalism, ROPS canopy models

1шт.

15

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

4шт.

16

495-31022

WASHER,#10

4шт.

17

225-14110

NUT,#10-24

4шт.

18

136454A1

COVER

- anti-vandalism, front instrument panel, ROPS canopy models

1шт.

19

D126821

CABLE

CORD - manual retaining, anti-vandalism cover

1шт.

20

151-522

RIVET,Pop, 3/16" x .575"

- break mandrel, 3/16 x 9/16 inch

2шт.

21

495-31022

WASHER,#10

4шт.

24

D127335

CATCH

Retainer, Magnetic, Storage compartment

1шт.

R46463

SCREW,0.18" x 0.75"

- 2pc. manual retention

1шт.

Выбрано товаров: 25
