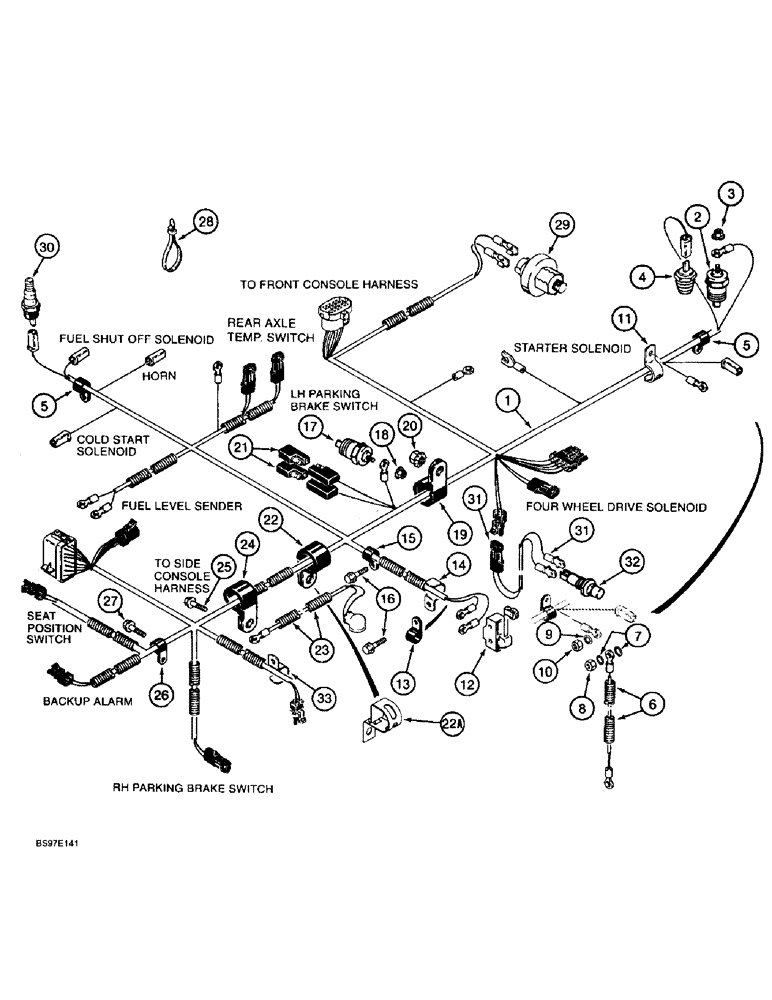

Запчасти Case 580SL (4-10) - ENGINE WIRING HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

188811A1

HARNESS

- engine, main, models without air conditioning, replaces 178990A2 harness

1шт.

1a

188812A1

HARNESS

- engine, main, models with air conditioning, replaces 178991A2 harness, not shown, used in production, for service order 188811A1 engine harness above and 186607A1 air conditioning adapter harness on Figure 4-18

1шт.

2

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - engine water coolant temperature

1шт.

3

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

4

1345488C2

PRESSURE SWITCH

SWITCH - coolant temperature

1шт.

5

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Uses existing engine hardware, Replaces 515-2379, 5/16" ID clamp 1/2", Insul, 3/8" Bolt

2шт.

6

D143830

CABLE

WIRE - 675 mm long, Serial Range: alternator-starter

1шт.

7

493-21033

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal tooth lock, 5/16 inch

2шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

1шт.

9

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16") Int Tooth, #10

1шт.

10

824-1405

NUT,M5, Cl 5

1шт.

11

D147383

CLIP,5/8" J

CLAMP - J-type, uses existing engine hardware

1шт.

12

D137363

SWITCH

- return-to-dig, see Figure 9-010 for switch mounting

1шт.

13

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type 1/2", Insul, 3/8" Bolt

1шт.

14

D147383

CLIP,5/8" J

CLAMP - J-type

1шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type 1/2", Insul, 3/8" Bolt

1шт.

16

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

- heavy hex flange, 10-1.5 x 20 mm

2шт.

17

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - transmission temperature

1шт.

18

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

19

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

- P-type, double

1шт.

20

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

1шт.

21

L71879

DIODE ELEMENT,400V, 3A

DIODE - harness, isolation

2шт.

22

49773

CLAMP

- P-type, uses existing loader valve mounting bolt, no longer used at this location, order 192196A1 spring lock clamp, Ref 22A

1шт.

22a

192196A1

CLAMP

- P-type, spring lock, if used

1шт.

23

184188A1

HARNESS

WIRE - power, starter to fuseblock, see Figure 4-20 Ref. 8 for nut at relay block

1шт.

24

49773

CLAMP

- P-type, 1-1/4 inch ID

1шт.

25

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

- heavy hex flange, 10-1.5 x 25 mm

1шт.

26

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, See Figure 7-12, Ref 29 for brake cable bracket 1/2", Insul, 3/8" Bolt

1шт.

27

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

- heavy hex flange, 10-1.5 x 20 mm, if used, may be replaced by 60 mm long bolt if brake cable support bracket is mounted with Ref 26 P-clamp, see Figure 7-12, Ref. 29 for brake cable support bracket

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

27шт.

29

1983233C1

RESTRICTION SWITCH

SWITCH - restriction, air cleaner

1шт.

30

A162297

SWITCH

SENDER - oil pressure, 1/8-27 NPTF, used with 1989181C1 engine

1шт.

250838A2

HYD CONNECTOR

CONNECTOR - 1/8-27 NPTF x 10 mm- 1.0 O-ring boss, used with A162297 sender when replacing 1989181C1 engine with 1989181C3 engine, not shown

1шт.

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

8.1 ID x 1.6 mm wide, Connector, Not shown

1шт.

30a

277016A1

PRESSURE SWITCH

SENDER - Oil Pressure, 10 mm - 1, O-ring thread, not shown, used with 1989181C3 engine (part number is stamped on sender), Includes: Ref. 30B

1шт.

30b

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

- 8.1 ID x 1.6 mm wide, 277016A1 sender, not shown

1шт.

31

123809A2

WIRE HARNESS

HARNESS, WIRE, Clutch cutout, Transmission gear shift lever, Replaces 123809A1 harness

1шт.

32

123097A1

SWITCH

- push-button, clutch cutout, gear shift lever, see Figure 6-22 for lever and knob

1шт.

33

D147383

CLIP,5/8" J

CLAMP - J-type, uses existing loader valve mounting hardware

1шт.
