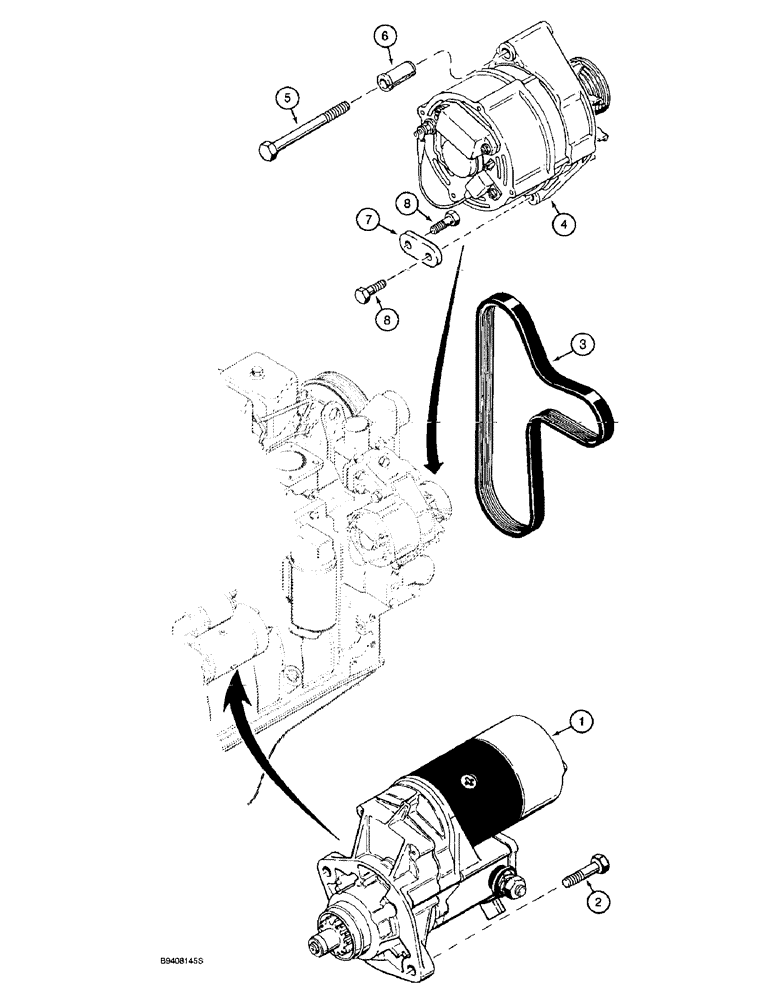

Запчасти Case 580SL (4-08) - STARTER AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

1987559C1

STARTING MOTOR

STARTER ASSEMBLY - engine, new, parts list Figures 4-02

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Reman for New PN 1987559C1

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

1

104452A2R

REMAN-STARTER

Remanufactured STARTER 12 volt, 2.5KW

1шт.

1

104452A1C

CORE-STARTER

Return Part Number, STARTER 12 volt, 2.5KW

1шт.

2

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

BOLT - hex, 10-1.5 x 40 mm

2шт.

3

J921603

V-BELT,3.56 mm W x 1485.90 mm L, 8 Ribs

Alternator and Fan

1шт.

4

A187873

ALTERNATOR,12V, 65A

ALTERNATOR ASSEMBLY - engine, 65 ampere, parts list Figure 4-06

1шт.

4

A187873GV

ALTERNATOR

Value

1шт.

4

87297230

REMAN-ALTERNATOR

REMANUFACTURED Bosch 12v 65a ALTERNATOR

1шт.

4

87297231

CORE-ALTERNATOR

Return Part Number, Bosch 12 v 65a ALTERNATOR

1шт.

5

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

BOLT - hex, 10 - 1.5 x 100 mm

1шт.

6

J902469

SPACER

SPACER - alternator mounting

1шт.

7

J903089

SUPPORT

BRACE - alternator mounting

1шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

BOLT - hex, full threads, 8-1.25 x 20 mm

2шт.
