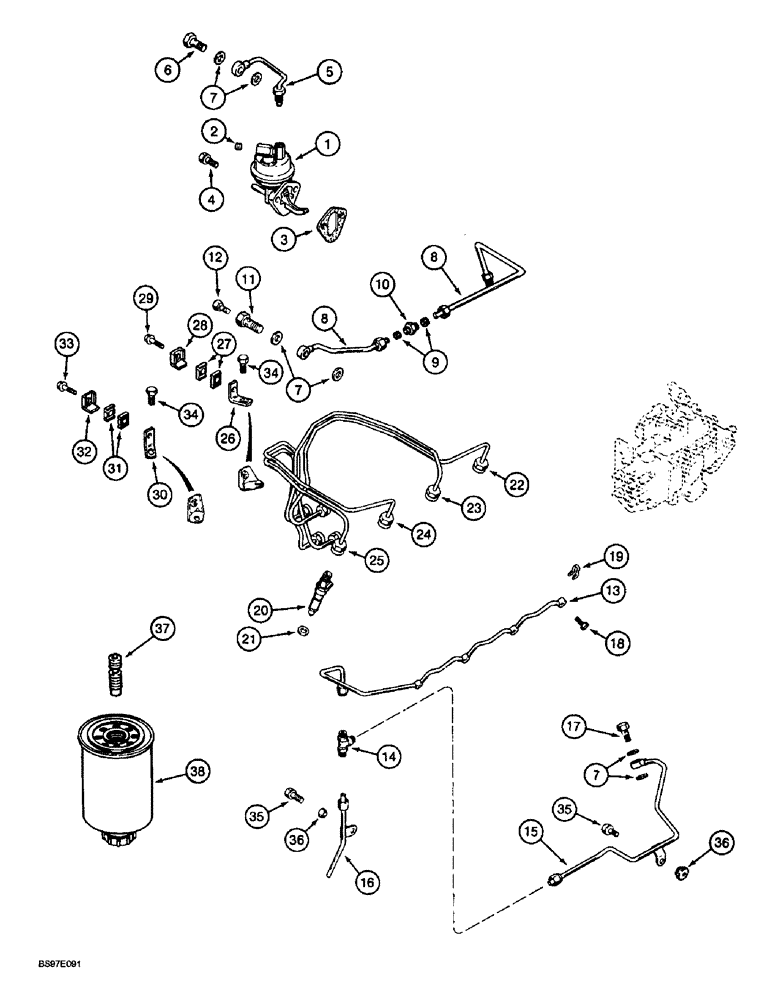

Запчасти Case 580SL (3-08) - FUEL INJECTION SYSTEM AND FUEL FILTER, 4T-390 ENGINE (03) - FUEL SYSTEM

1

J928143

PUMP

- lift, fuel, replaces J904374 pump

1шт.

2

221-841

PLUG

- hex socket, 1/4 inch PT, fuel inlet

1шт.

3

J931348

GASKET

- mounting, fuel transfer pump, replaces J914304 and J923054 gasket

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8-1.25 x 20 mm

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

TUBE ASSEMBLY - fuel supply, lift pump to filter

1шт.

6

J903035

BANJO BOLT

BOLT - banjo hex, 12-1.5 x 24 mm

1шт.

7

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

6шт.

8

J918640

FUEL TUBE

TUBE ASSEMBLY - fuel supply, two-piece, Includes: Ref. 9 and 10

1шт.

9

222-103

SLEEVE,5/16" Tube

5/16 inch tube OD

2шт.

10

222-4

FITTING,9/16"-24, Flex Tube

ADAPTER - compression, 5/16 inch tube OD

1шт.

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

BOLT - connector, banjo hex special

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - hex, special, vent

1шт.

13

J909695

FUEL TUBE

TUBE - manifold, fuel drain

1шт.

14

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing (Remove and discard hex nuts before assembly)

1шт.

15

J905699

FUEL TUBE,4.76 mm OD

TUBE - fuel return, tee to pump

1шт.

16

J905692

FUEL TUBE

TUBE - fuel return, tee to fuel tank

1шт.

17

J905465

BANJO BOLT

BOLT - banjo, overflow

1шт.

18

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

4шт.

19

J903380

SEAL

- connector

4шт.

20

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, parts list Figure 3-12

4шт.

21

REF

INSTRUCTION

SEAL - injector, see Figure 3-12

4шт.

22

J903480

FUEL TUBE,21 mm ID x 64 mm OD

TUBE - fuel injector, No. 1 cylinder

1шт.

23

J903481

FUEL TUBE,21 mm ID x 64 mm OD

TUBE - fuel injector, No. 2 cylinder

1шт.

24

J903482

FUEL TUBE,21 mm ID x 64 mm OD

TUBE - fuel injector, No. 3 cylinder

1шт.

25

J903483

FUEL TUBE,21 mm ID x 64 mm OD

TUBE - fuel injector, No. 4 cylinder

1шт.

26

J919294

SUPPORT

BRACKET - fuel tube, no longer used, order Ref. 26A

1шт.

26a

J930689

SUPPORT

BRACKET - fuel tube, replaces J919294 bracket

1шт.

27

J917746

CLAMP

- fuel tube

2шт.

28

CURJ904711

CLAMP

BRACKET - fuel tube, clamp

1шт.

29

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

1шт.

30

J919292

SUPPORT

BRACKET - fuel tube, no longer used, order Ref. 30A

1шт.

30a

J930688

SUPPORT

BRACKET - fuel tube, replaces J919292 bracket

1шт.

31

J917746

CLAMP

- fuel tube

2шт.

32

CURJ904711

CLAMP

BRACKET - fuel tube, clamp

1шт.

33

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

1шт.

34

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special Hex Flg Hd, M8 x 1.25 x 25

2шт.

35

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

2шт.

36

J928759

SEALING WASHER

- cover bolt, replaces J900267 seal

2шт.

37

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

- fuel filter

1шт.

38

J931062

FILTER

- fuel, replaces J843760 filter

1шт.
