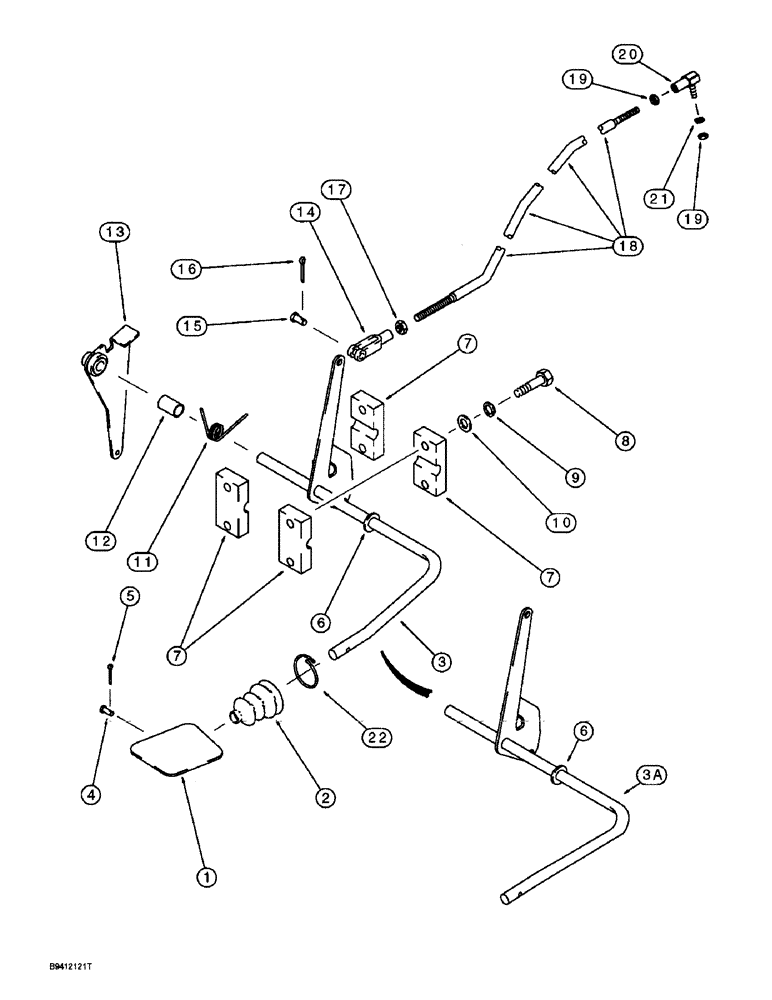

Запчасти Case 580SL (3-06) - THROTTLE CONTROL LINKAGE, FOOT CONTROLS (03) - FUEL SYSTEM

1

115393A1

PEDAL

- accelerator

1шт.

2

132931A1

BOOT

1/2" rod, Accelerator pedal rod

1шт.

3

132802A1

THREADED ROD

ROD - accelerator pedal shaft, if used

1шт.

3a

192909A1

THREADED ROD

ROD - accelerator pedal shaft, if used

1шт.

4

D50559

CLEVIS,9.53mm OD x 28.32mm L

PIN - clevis, 1/4 inch

1шт.

5

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

6

495-81160

WASHER,0.52" ID x 1.12" OD x 0.11" Thk

- flat, 33/64 x 1-1/8 x 7/64 inch

1шт.

7

D124857

CLAMP

BLOCK - cross shaft

4шт.

8

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

- hex, 8 - 1.25 x 50 mm (8.8)

4шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.

11

123558A1

SPRING

- throttle return

1шт.

12

123392A1

SPACER

- spring retaining

1шт.

13

132801A2

SUPPORT

BRACKET - pivot, replaces 132801A1 bracket

1шт.

14

213-125

ADJUSTABLE CLEVIS,5/16" - 32

CLEVIS - adjustable, 5/16 inch NF

1шт.

15

D149287

PIN,7.9mm OD x 26.72mm L

- Clevis, Special, 5/16 x 15/16 inch, hardened

1шт.

16

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

17

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF

1шт.

18

132806A1

ROD

- throttle, to injection pump

1шт.

19

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4 inch NF

2шт.

20

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT - ball, 1/4 inch NF, at injection pump

1шт.

21

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

22

189109A1

SPRING,Compression, 42mm OD

RETAINER - boot spring

1шт.
