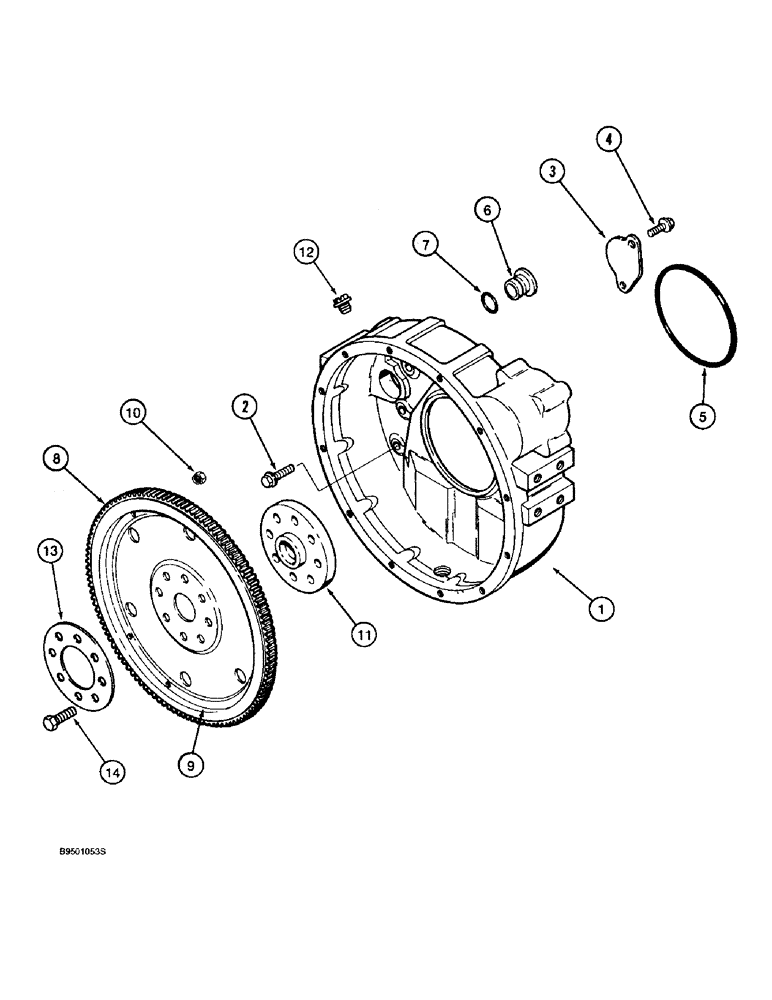

Запчасти Case 580SL (2-42) - FLYWHEEL AND HOUSING, 4T-390 ENGINE (02) - ENGINE

1

J930886

HOUSING ASSY.

HOUSING - flywheel, replaces J928851 and J353826 housing

1шт.

2

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 40 mm, class 10.9

8шт.

3

J925234

PLATE

- cover, replaces J908095 plate

1шт.

4

J912072

SELF-TAP SCREW

SCREW - self-tapping, hex washer head, special, 8-1.25 x 15 mm, retaining plate, replaces J902735 bolt

2шт.

5

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel, Serial Range: housing-block

1шт.

6

J910248

PLUG

- flywheel housing

1шт.

7

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Sealing -212, 70 Duro, .859" ID x .139" Thk

1шт.

J922595

FLYWHEEL

PLATE ASSEMBLY - flex, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

GEAR - ring, flywheel

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE - flex

1шт.

10

NSS

NOT SOLD SEPARAT

NUT - sealing

6шт.

11

J913689

FLANGE

ADAPTER - crankshaft

1шт.

12

353-225

PLUG,Sltd Hd, 3/4"-16

- slotted hex, 3/4 inch NF

1шт.

13

J904361

WASHER

RING - clamping

1шт.

14

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, special, 12 - 1.25 x 32 mm

8шт.
