Артикул
Название
Примечание
Количество

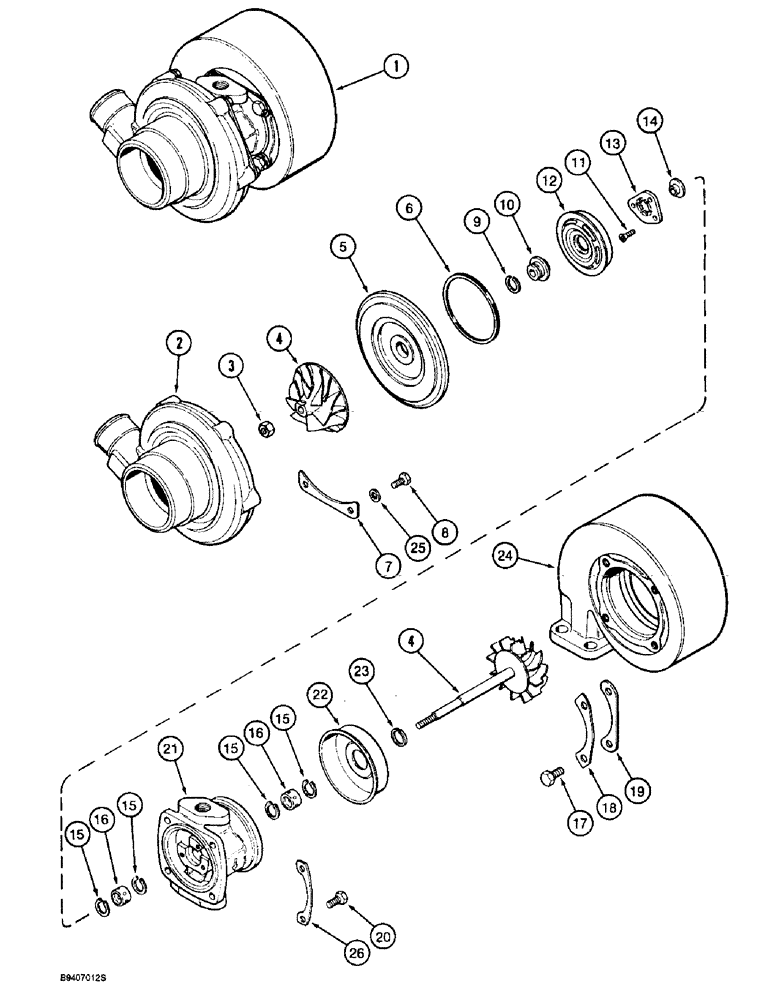

1
J802290
TURBOCHARGER
KIT - turbocharger, large frame, includes new turbocharger assy, (1) J519807 turbo oil drain tube gasket, (1) J919687 adapter w/O-ring, & (1) J709861 turbocharger mtg gasket, not shown, replaces J919129 turbocharger assy, Includes: Ref. 2 - 26
1шт.
1
JR802290
REMAN-TURBOCHARGER
580SL
1шт.
1
JC535381
CORE-TURBOCHARGER
Return Part Number
1шт.
1
J802295
TURBOCHARGER
KIT - turbocharger, small frame, includes new turbocharger assembly, (1) J519807 turbo oil drain tube gasket, (1) J919687 adapter with O-ring, and (1) J709861 turbocharger mounting gasket, not shown, Includes: Ref. 2 - 26
1шт.
1
JR802295
REMAN-TURBOCHARGER
KIT - turbocharger, engine, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly
1шт.
1
JC802295
CORE-TURBOCHARGER
Return Part Number
1шт.
1
JC524121
CORE-TURBOCHARGER
Return Part Number - use this part number to return turbocharger core for credit when using a remanufactured assembly
1шт.
2
NSS
NOT SOLD SEPARAT
HOUSING - compressor
1шт.
3
NSS
NOT SOLD SEPARAT
NUT - hex, lock
1шт.
4
NSS
NOT SOLD SEPARAT
ROTOR - turbocharger, includes both halves
1шт.
5
NSS
NOT SOLD SEPARAT
DIFFUSER - compressor
1шт.
6
NSS
NOT SOLD SEPARAT
SEAL - diffuser
1шт.
Part of Turbocharger Overhaul Kit, P/N J545652
1шт.
7
NSS
NOT SOLD SEPARAT
PLATE - diffuser clamping
3шт.
8
NSS
NOT SOLD SEPARAT
SCREW - cap
4шт.
Part of Turbocharger Overhaul Kit, P/N J545652
1шт.
9
NSS
NOT SOLD SEPARAT
SEAL - split ring, compressor
1шт.
Part of Turbocharger Overhaul Kit, P/N J545652
1шт.
10
NSS
NOT SOLD SEPARAT
SLINGER - oil
1шт.
11
NSS
NOT SOLD SEPARAT
SCREW - flat head Torx
3шт.
Part of Turbocharger Overhaul Kit, P/N J545652
1шт.
12
NSS
NOT SOLD SEPARAT
BAFFLE - oil
1шт.
13
NSS
NOT SOLD SEPARAT
BEARING - thrust
1шт.
Part of Turbocharger Overhaul Kit, P/N J545652
1шт.
14
NSS
NOT SOLD SEPARAT
COLLAR - thrust
1шт.
15
NSS
NOT SOLD SEPARAT
RING - snap, retaining
4шт.
Part of Turbocharger Overhaul Kit, P/N J545652
1шт.
16
NSS
NOT SOLD SEPARAT
BEARING - impeller shaft
2шт.
Part of Turbocharger Overhaul Kit, P/N J545652
1шт.
17
NSS
NOT SOLD SEPARAT
BOLT - plate retaining
4шт.
Part of Turbocharger Overhaul Kit, P/N J545652
1шт.
18
NSS
NOT SOLD SEPARAT
PLATE - lock, turbine housing
2шт.
Part of Turbocharger Overhaul Kit, P/N J545652
1шт.
19
NSS
NOT SOLD SEPARAT
PLATE - clamping, turbine housing
2шт.
20
NSS
NOT SOLD SEPARAT
BOLT - hex
4шт.
Part of Turbocharger Overhaul Kit, P/N J545652
1шт.
21
NSS
NOT SOLD SEPARAT
HOUSING - turbine bearing
1шт.
22
NSS
NOT SOLD SEPARAT
SHIELD - heat, turbine
1шт.
23
NSS
NOT SOLD SEPARAT
SEAL - piston ring, turbine
1шт.
Part of Turbocharger Overhaul Kit, P/N J545652
1шт.
24
J524123
HOUSING
HOUSING - turbine
1шт.
25
NSS
NOT SOLD SEPARAT
WASHER - lock
8шт.
Part of Turbocharger Overhaul Kit, P/N J545652
1шт.
26
NSS
NOT SOLD SEPARAT
PLATE - lock, turbine
2шт.
J545652
PACKAGE, REPAIR
KIT - overhaul, turbocharger, Includes: Ref. 6, 8, 9, 11, 13, 15, 16, 17, 18, 20, 23, and 25
1шт.
Выбрано товаров: 45
