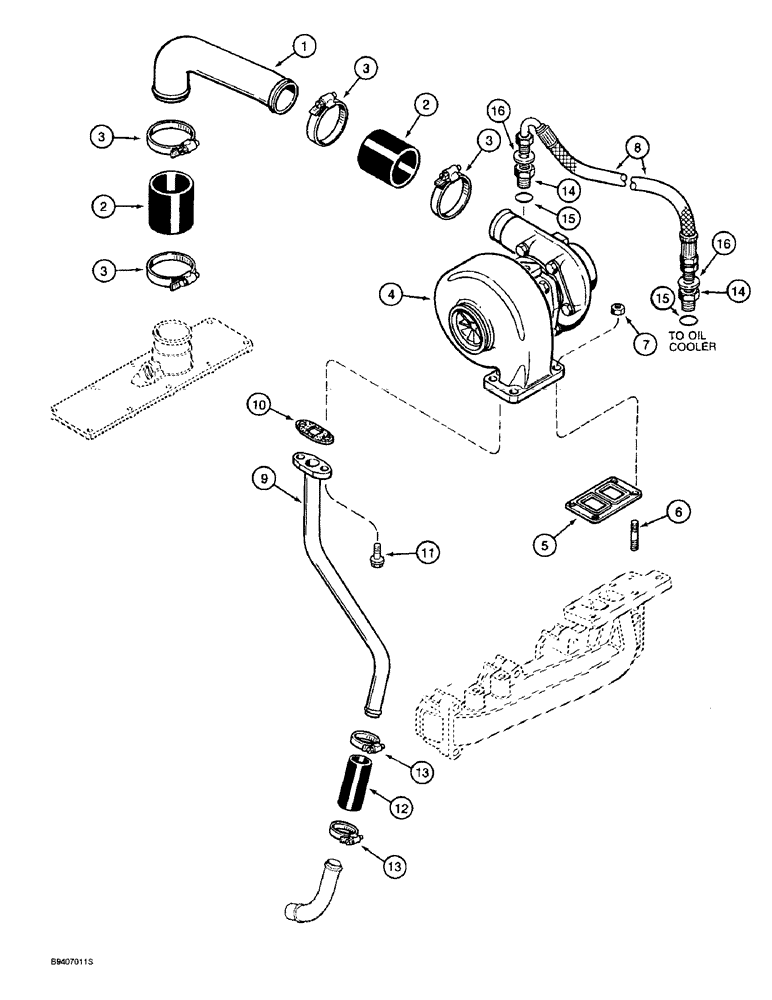

Запчасти Case 580SL (2-22) - TURBOCHARGER SYSTEM, 4T-390 ENGINE (02) - ENGINE

1

J906623

TUBE,2 mm OD x 299.8 mm L

- crossover

1шт.

2

J916166

INTAKE AIR HOSE

HOSE - 70 mm (2-3/4 inch) long, air intake

2шт.

3

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

4шт.

4

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine, see Figure 2-24 for correct assembly and parts list

1шт.

5

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

6

J818823

STUD

- turbocharger mounting, M10 x 40

1шт.

7

J818824

FLANGE NUT

- hex flange, special, 10 mm-1.5, stud

4шт.

8

J913759

HOSE

Turbocharger Oil Supply

1шт.

9

J903740

TUBE

- turbocharger oil drain

1шт.

REF 9: ENGINES BUILT AFTER 6/2/97 USE J934064 PER ECN C981047. NEW TUBE IS BENT DIFFERENT. 6/11/98 BW

1шт.

10

J931350

GASKET

- turbo oil drain tube, replaces J914388 and J928919 gasket

1шт.

11

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8-1.25 x 20 mm

2шт.

12

J903745

LARGE HOSE

HOSE - 76 mm (3 inch) long, turbocharger oil drain

1шт.

13

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

2шт.

14

J919687

HYD CONNECTOR

ADAPTER - female hex, special (1) used to connect turbocharger oil supply hose to turbocharger, (1) used to connect turbocharger oil supply hose to J918954 oil filter head, Includes: Ref. 15

2шт.

15

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk, Outer

1шт.

16

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
