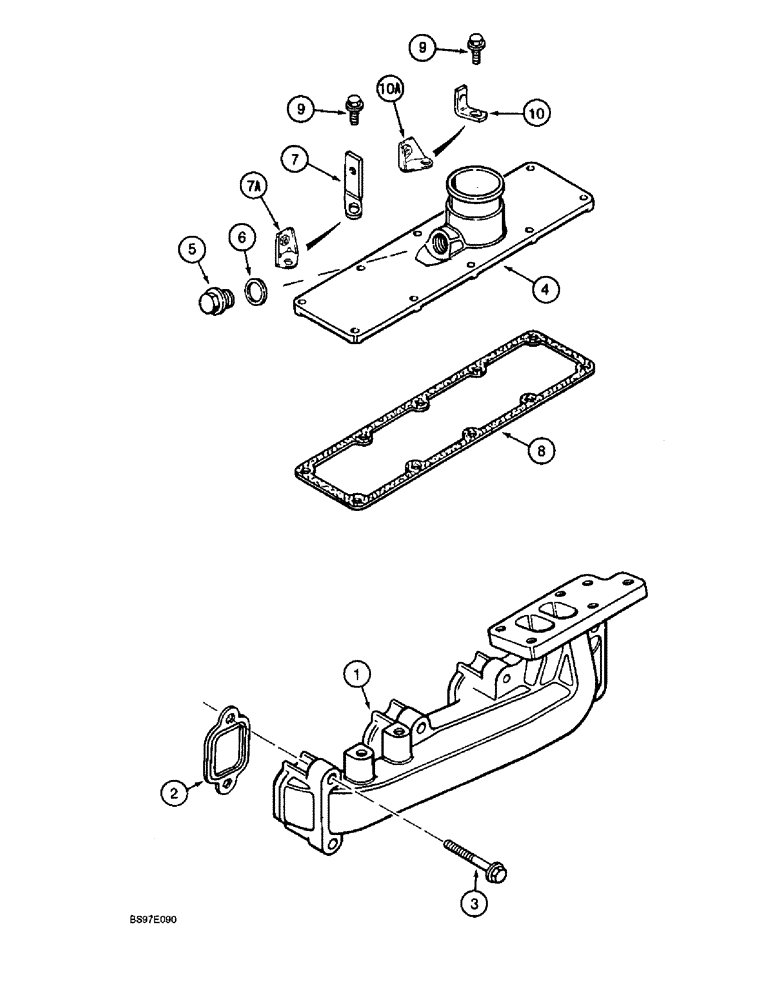

Запчасти Case 580SL (2-20) - MANIFOLDS, 4T-390 ENGINE (02) - ENGINE

1

J901919

MANIFOLD

- exhaust

1шт.

2

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

3

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- heavy hex flange, 10-1.50 x 65 mm, class 10.9, exhaust

8шт.

A77416

COVER

KIT - intake manifold, no longer available, order components separately, Ref. 4 - 6

1шт.

4

J904339

COVER

- intake

1шт.

5

J907185

PLUG

- manifold, intake

1шт.

6

J906773

WASHER

- plug sealing, intake

1шт.

7

J919292

SUPPORT

BRACKET - fuel tube, no longer used, order Ref. 7A, intake

1шт.

7a

J930688

SUPPORT

BRACKET - fuel tube, see Ref. 30A on Figure 3-08, intake

1шт.

8

J931605

BOLT

- intake manifold, replaces J914028 gasket

1шт.

9

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special, Intake Hex Flg Hd, M8 x 1.25 x 25

10шт.

10

J919294

SUPPORT

BRACKET - fuel tube, no longer used, order Ref. 10A, intake

1шт.

10a

J930689

SUPPORT

BRACKET - fuel tube, see Ref. 26A on Figure 3-08, intake

1шт.
