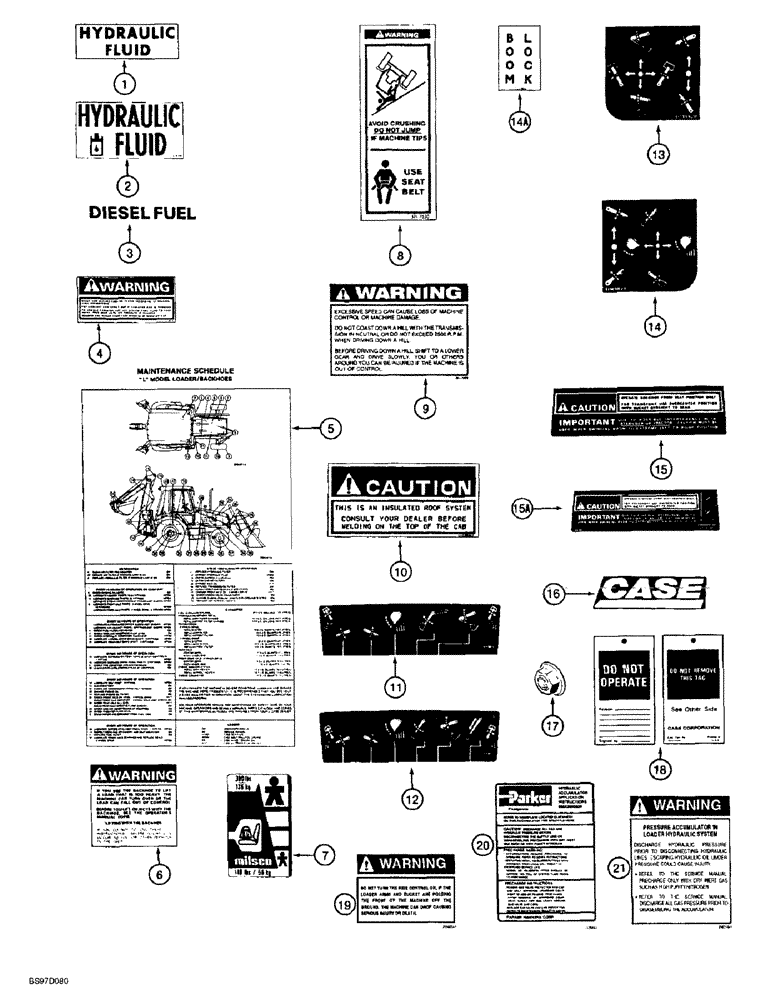

Запчасти Case 580SL (9-138) - DECALS (09) - CHASSIS/ATTACHMENTS

1

321-229

DECAL

- hydraulic fluid, used in production, for service order 321-6376, item 2

1шт.

2

321-6376

DECAL

- hydraulic fluid

1шт.

3

321-230

DECAL

- diesel fuel

1шт.

4

321-6672

DECAL

- Warning, check and service cooling system

2шт.

5

235270A1

DECAL

- maintenance schedule, supplied by Parts and Components, replaces 177018A1, 177018A2 and 199068A1 decals

1шт.

6

321-6046

WARNING DECAL

DECAL, WARNING, If you use the backhoe to lift a load that is too heavy

1-3шт.

7

116534A1

KIT

- decal, seat weight adjustment, includes instructions, included in seat assembly

1шт.

8

321-7030

WARNING DECAL

DECAL, WARNING, Do Not Jump - Use Seat Belt

1шт.

9

D150900

DECAL

- Warning, excessive speed can cause loss of machine control

1шт.

10

112236A1

DECAL

- Caution, this is an insulated roof system, cab models

1шт.

11

D149824

DECAL

- standard backhoe control pattern, with foot swing, upper

1шт.

12

D149825

DECAL

- extendahoe control pattern, with foot swing, upper

1шт.

13

D149828

DECAL

- standard backhoe control pattern, with hand swing, upper, left-hand side of control console

1шт.

14

D149829

DECAL

- standard backhoe control pattern, with hand swing, upper, right-hand side of control console

1шт.

14a

L111356

DECAL

- boom lock

1шт.

15

D149826

IMPORTANT DECAL

DECAL - Caution, operate backhoe from seat position only, lower, for all models, with foot swing backhoe controls and standard backhoe models with hand swing

1шт.

15a

D149827

IMPORTANT DECAL

DECAL - Caution, operate backhoe from seat position only, lower, for extendahoe backhoe models with hand swing

1шт.

16

186989A1

EMBLEM

- Case

1шт.

17

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - push-on type

2шт.

18

321-4614

TAG

- do not operate

1шт.

19

255927A1

WARNING DECAL

- Warning, do not turn the ride control on, if the loader arms and bucket are holding the front of the machine off the ground, mounts on console by ride control switch, models with ride control, if used

1шт.

20

L129440

DECAL

- hydraulic accumulator application instructions, mounts on accumulator, models with ride control, if used

1шт.

21

256318A1

DECAL

- Warning, pressure accumulator in loader hydraulic system, mounts on accumulator mounting plate, models with ride control, if used

1шт.
