Запчасти Case 580SL (9-136) - DECALS (09) - CHASSIS/ATTACHMENTS

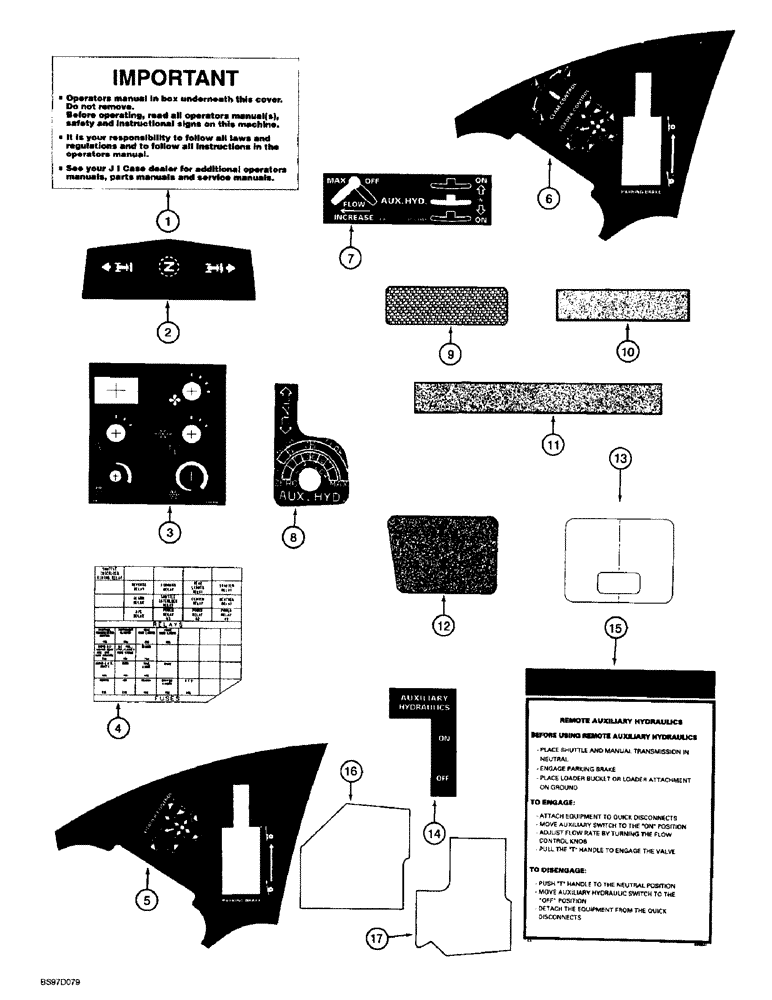

Схема запчастей Case 580SL - (9-136) - DECALS (09) - CHASSIS/ATTACHMENTS
13
3
9
1
8
7
17
12
11
10
15
4
5
2
6
14
16

Артикул

Название

Примечание

Количество

1

144193A1

DECAL

- Important, operator's manual in box underneath this cover, glove box lid

1шт.

2

D137615

DECAL

- shuttle shift lever control pattern, on steering column cover

1шт.

3

135183A1

DECAL

- instrument symbols, wipers and environmental control

1шт.

4

278551A1

DECAL

- fuses and relays, loader control console fuse access panel cover, replaces 182334A1 and 197955A1 decal

1шт.

5

137290A1

DECAL

- two function loader control, lift and bucket control pattern

1шт.

6

137289A1

DECAL

- three function loader control, lift, bucket and clam control pattern

1шт.

7

179683A1

DECAL

- hand held auxilliary hydraulics, if used

1шт.

8

199382A1

DECAL

- backhoe auxiliary hydraulics, flow control, if used

1шт.

9

D87870

DECAL

REFLECTOR - red

2шт.

10

D55216

PAD,2" x 9"

PAD - anti-skid, 4 used on cab models, 10 used on canopy models

4-10шт.

11

D80270

ANTI-SKID STRIP,635mm / 25 Inch

STRIP, ANTI-SKID, 2 used on cab models, 3 used on canopy models

2-3шт.

12

128804A1

DECAL

STRIP - anti-skid

2шт.

13

192450A1

DECAL

- clear vinyl, hood

1шт.

14

192299A1

DECAL

- auxiliary hydraulics, at rocker switch on instrument panel, if used

1шт.

15

192300A1

DECAL

- remote auxiliary hydraulics, operating instructions, if used

1шт.

16

197345A1

LINING

PAD - anti-skid, left-hand, ROPS canopy models

1шт.

17

197346A1

LINING

PAD - anti-skid, right-hand, ROPS canopy models

1шт.

Выбрано товаров: 17
