(9-132) - SLOW MOVING VEHICLE EMBLEM

Запчасти Case 580SL (9-132) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS

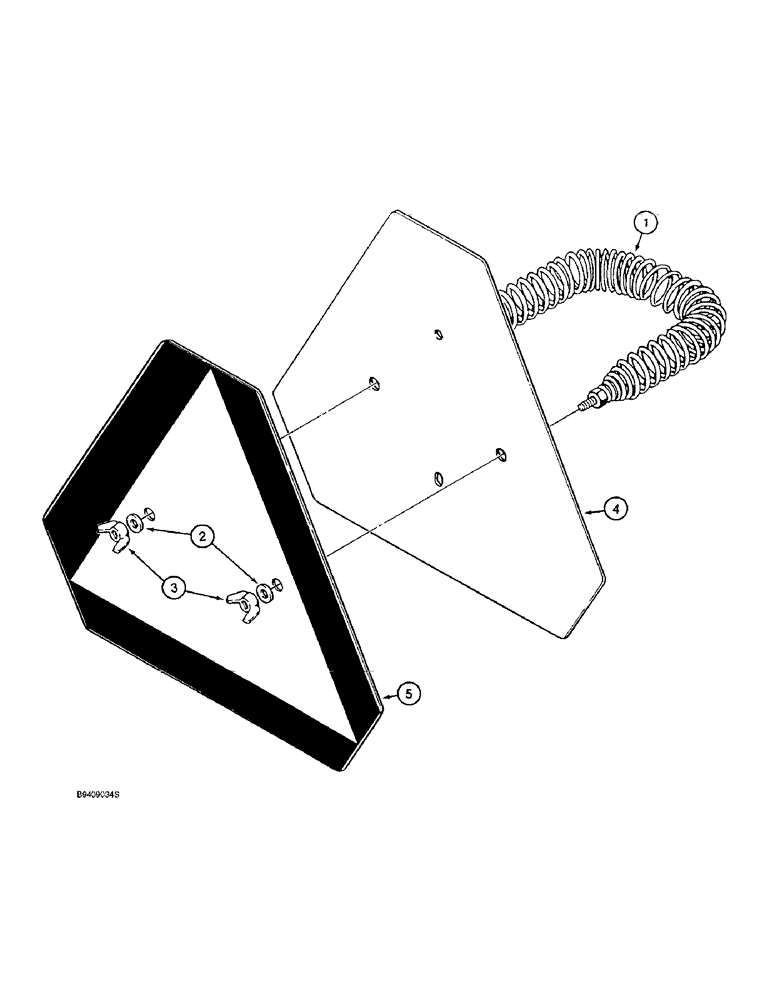

Схема запчастей Case 580SL - (9-132) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS
5
3
4
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D52564

SPRING

- emblem retaining

1шт.

2

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

3

126177

WING NUT

NUT - wing, 1/4 inch NC

2шт.

4

D123347

WARNING SIGN

EMBLEM - plate and decal, slow moving vehicle, Includes: Ref. 5

1шт.

5

321-4311

DECAL

- SMV emblem

1шт.
