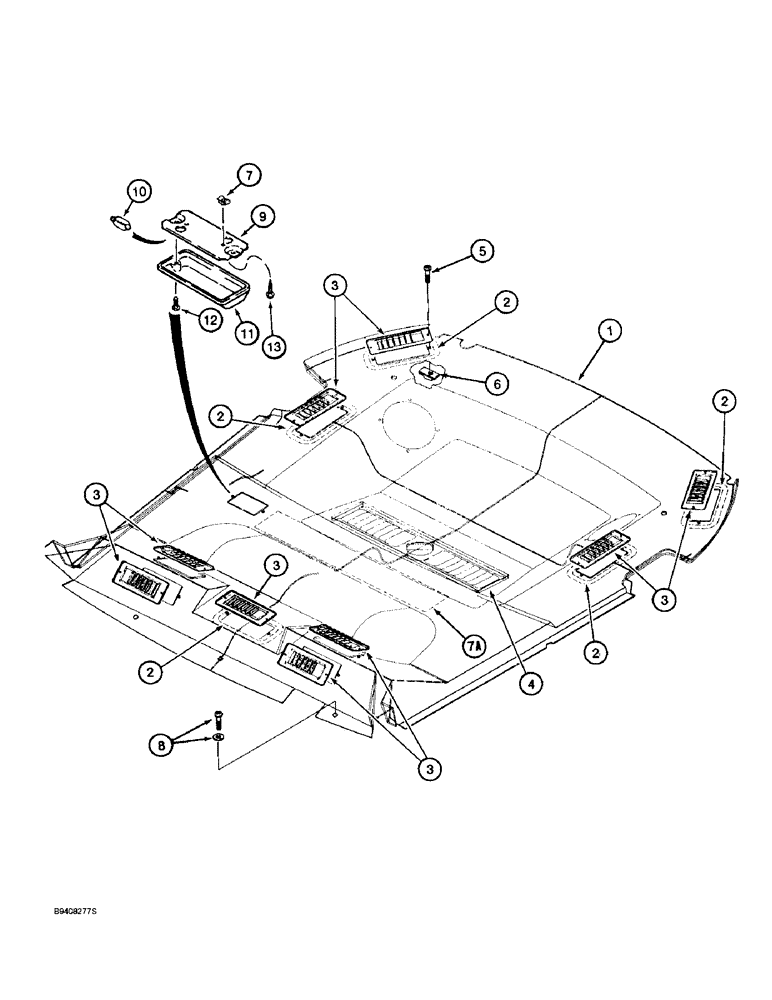

Запчасти Case 580SL (9-114) - CAB HEADLINER, LOUVERS AND DOME LAMP (09) - CHASSIS/ATTACHMENTS

125746A1

HEADLINER

HEADLINER ASSEMBLY - cab, Includes: Ref. 1 - 7A

1шт.

1

NSS

NOT SOLD SEPARAT

HEADLINER - cab

1шт.

2

131973A1

SEAL

- duct

5шт.

3

125688A1

DIFFUSER

LOUVER - headliner, heat and air

9шт.

4

1331102C2

DIFFUSER

LOUVER - air recirculation

1шт.

5

140-103

SCREW,Cross Pan Hd, #6 - 32 x 3/4"

24шт.

6

125749A1

SPRING NUT

- U-type, No. 6 NC

24шт.

7

131-861

SPRING NUT,Tinn, U, #10-24

No threads, Dome lamp retaining Tinn, U, #10-24

2шт.

7a

186797A1

SEALING STRIP

- adhesive-backed, 19 x 75 x 550 mm

1шт.

8

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - self-tapping, special, No. 10-16 x 3/4 inch, with washer, headliner to cab frame, used in production, order F64315 washer and 265-16512 screw for service

5шт.

R53755

LIGHT ASSY.,12V

LAMP ASSEMBLY - dome, 12 volt, see Figure 4-16 for switch, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

BASE - dome lamp

1шт.

10

N14466

BULB

- dome lamp

1шт.

11

N14465

LENS

- dome lamp

1шт.

12

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

- machine, pan Phillips, No. 8 NC x 1/2 inch, Base to lens

2шт.

13

281-54512

SCREW,Hex Wshr Hd, #10 - 24 x 3/4"

- self-tapping, hex washer head, No. 10 NC x 3/4 inch, lamp to headliner

2шт.
