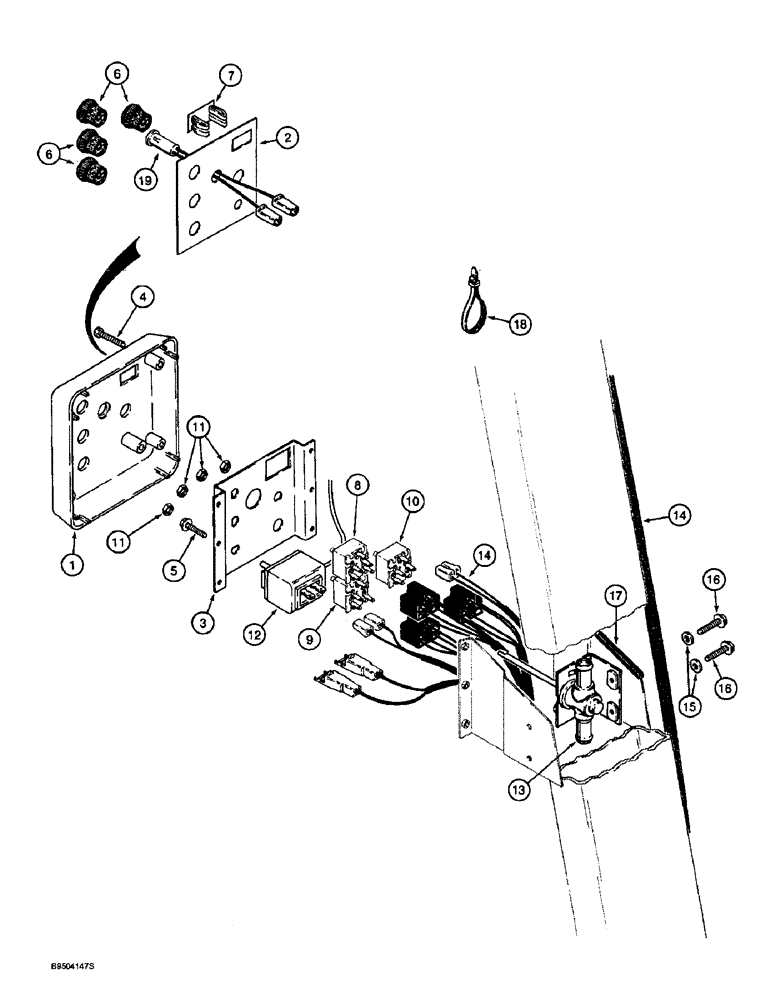

Запчасти Case 580SL (9-108) - CAB CONTROL PANEL AND WIRING (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
135185A1
PANEL
- cab control, includes decal, mounts on right-hand ROPS post, Includes: Ref. 2
1шт.
2
135183A1
DECAL
- instrument symbols, wipers and environmental control, Ref. 3 shown on Figure 9-136
1шт.
3
136036A1
SUPPORT
BRACKET - switch support
1шт.
4
286-56520
SELF-TAP SCREW,Cross Fil Hd, #10-24 x 1 1/4"
- self-tapping, Fillister head, No. 10 NC x 1-1/4 inch
4шт.
5
281-54512
SCREW,Hex Wshr Hd, #10 - 24 x 3/4"
- self-tapping, hex washer head, No. 10 NC x 3/4 inch
2шт.
6
111282C1
KNOB
- control, switch, front and rear wiper, heater, blower, and air conditioner
4-5шт.
8
A42622
SWITCH
- blower, no longer used, order 245258A1 switch, magnetic posts
1шт.
Part number is stamped on switch.
1шт.
Part number is stamped on switch.
1шт.
9
R52440
SWITCH
- rear wiper
1шт.
245706C1
ELEC CONNECTOR
PLUG - plastic, rear wiper, blower, windshield wiper, if used, not shown
3шт.
10
R52415
ROTARY SWITCH
- front wiper
1шт.
11
A42561
JAM NUT,Hex, 7/16" - 28, RH Thd
- retaining, 7/16 inch NC, switch
4шт.
12
1340287C1
SWITCH
- temperature control, air conditioning
1шт.
13
R52483
VALVE
- temperature control, heater
1шт.
14
REF
INSTRUCTION
HARNESS - cab, main, see Figure 4-30 for cab harness
1шт.
15
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
- flat, 9 x 17 x 1.6 mm
2шт.
16
458-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
- hex flange, 1/4 NC x 3/4 inch, Mounts heater temperature control valve to ROPS post
2шт.
17
D36179
LINING
TRIM - edge, 108 mm (4-1/2 inch) long, cut from F42827 bulk trim, control panel bracket, see below
1шт.
18
473321C1
CABLE TIE,8" OAL x 0.098" W
STRAP, CABLE, .098" x 8"
4шт.
19
1964672C1
LIGHT
- indicator, amber, 14 volt, air conditioning
1шт.
F42827
TRIM,2946.4mm L
TRIM - edge, bulk, 2946 mm (116 inch) long
1шт.
