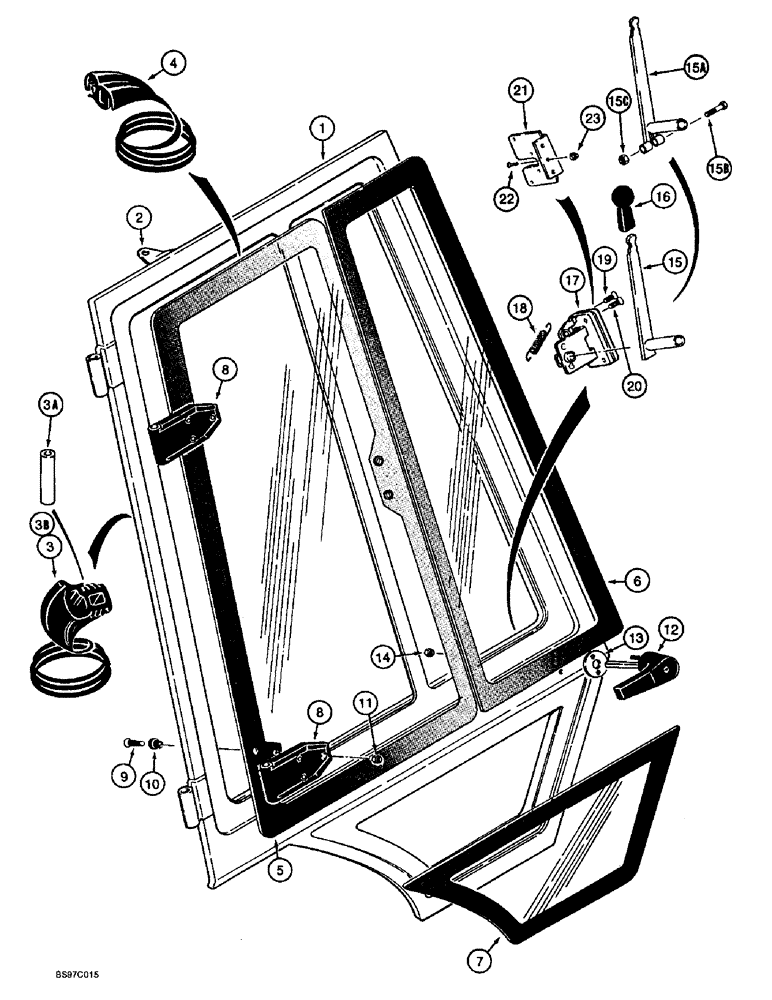

Запчасти Case 580SL (9-100) - LEFT-HAND AND RIGHT-HAND CAB DOORS - EXTERIOR (09) - CHASSIS/ATTACHMENTS

1

137869A3

DOOR ASSY.

FRAME - right-hand door, replaces 137869A1 and 137869A2 frame, Includes: Ref. 2

1шт.

REF 1, 137869a3 - COMPLETE DOOR ASSY IS 194013A2 9/24/99 BW CAM

1шт.

1a

137868A3

DOOR ASSY.

FRAME - left-hand door, not shown, replaces 137868A1 and 137868A2 frame, Includes: Ref. 2

1шт.

REF 1A, 137868a3 - COMPLETE DOOR WITH GLASS IS 194021A2. 4/17/98 BW.

1шт.

2

R53562

BRACKET

- cable, welded to left-hand or right-hand door frame

1шт.

3

187582A1

DOOR SEAL

- bulb type, with drain holes, 4585 mm (180-1/2 inch) long, without self adhesive, left-hand and right-hand door frames, used with Ref 3A

2шт.

Install Ref. 3 door seal, 187582A1, starting at top edge of lower hinge, installing it downward. Trim off excess and insert 187585A1 splice tube, Ref. 3A, into both ends. Splice tube to be coated with Loctite adhesive, Ref. 24.

1шт.

3a

187585A1

DOOR SEAL

- door seal, rubber splice, use with Ref 24 adhesive, if used

2шт.

Install Ref. 3 door seal, 187582A1, starting at top edge of lower hinge, installing it downward. Trim off excess and insert 187585A1 splice tube, Ref. 3A, into both ends. Splice tube to be coated with Loctite adhesive, Ref. 24.

1шт.

3b

187582A2

SEAL,4585mm L

- bulb type, with drain holes, 4585 mm (180-1/2 inch) long, with self adhesive, replaces Ref 3 and 3A on some models

2шт.

4

R53444

SEAL,2688mm L

- bulb type, 2689 mm (105-7/8 inch) long, left-hand and right-hand window frames

2шт.

5

R52882

GLASS

- right-hand door, rear window, tinted

1шт.

5a

R52881

GLASS

- left-hand door, rear, window, tinted, not shown

1шт.

6

R52880

GLASS

- right-hand door, front, tinted

1шт.

6a

R52879

GLASS

- left-hand door, front, tinted, not shown

1шт.

7

R52884

GLASS

- right-hand door, lower, tinted

1шт.

7a

R52883

GLASS

- left-hand door, lower, tinted, not shown

1шт.

8

R52917

HINGE

- glass, door window

4шт.

9

142-103

SCREW,Phil Oval Hd, Csk, #10 - 24 x 3/4"

- machine, oval Phillips, No. 10 NC x 3/4 inch, left-hand and right-hand door window hinge

12шт.

10

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

- nylon, black, glass to hinge, left-hand and right-hand door window hinge

12шт.

11

F45165

SPECIAL NUT,#10-24

NUT - hex, self-locking, special, No. 10 NC, Teflon coated, left-hand and right-hand door window hinge

12шт.

12

196675A2

HANDLE

- right-hand door, outer, replaces R53001 and 196675A1 handle; Use With 86502201 Key

1шт.

12a

196673A2

HANDLE

- left-hand door, outer, not shown, replaces R53002 and 196673A1 handle; Use With 86502201 Key

1шт.

86502201

IGNITION KEY

SET OF 2 KEYS, Door Handle

1шт.

13

F64342

GASKET,1.6mm Thk

- door handle, left-hand and right-hand

2шт.

14

86625057

NUT,#10-24, GB

NUT, LOCK, , LH and RH handles #10-24, GB

4шт.

15

R54625

LEVER

- inner left-hand and right-hand door latch handle, if used

2шт.

255450A1

SET OF PARTS

KIT - service, inner door handle, includes (1 each) Ref 15A - 15C, plus instruction, if used

1шт.

15a

255453A1

LEVER

- inner left-hand or right-hand door latch handle

1шт.

When used on older L series, a notch will need to be added to Panel P/N 108936A2 and 108938A2 in order to clear bolt head.

1шт.

15b

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

- hex, 8 - 1.25 x 45 mm

1шт.

15c

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, M8 x 1.25, Cl 8

1шт.

16

D135387

GRIP

KNOB - lever, inner door latch

2шт.

17

R55000

LATCH ASSY.

LATCH ASSEMBLY - door, right-hand, rotary, Includes: Ref. 18

1шт.

17a

R55001

LATCH ASSY.

LATCH ASSEMBLY - door, left-hand, rotary, not shown, Includes: Ref. 18

1шт.

18

A180163

SPRING

- extension, left-hand or right-hand door latch

1шт.

19

265-16512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, oval Phillips, No. 10-16 x 3/4 inch, left-hand and right-hand door latch

4шт.

20

137731A1

SELF-TAP SCREW,Cross Flat Hd, 1/4"-20 x 1"

SCREW - machine, flat head Phillips, special, 1/4 NC x 1 inch, left-hand and right-hand door latch

8шт.

21

1977401C1

SUPPORT

BRACKET - latch, right-hand rotary

1шт.

21a

1977402C1

SUPPORT

BRACKET - latch, left-hand rotary, not shown

1шт.

22

443-13112

SCREW,Cross Flat Hd, 5/16"-18 x 3/4"

- machine, flat Phillips, 5/16 NC x 3/4 inch

6шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

24

345-157

LOCTITE

ADHESIVE - Loctite, 380 black, not shown

1шт.
