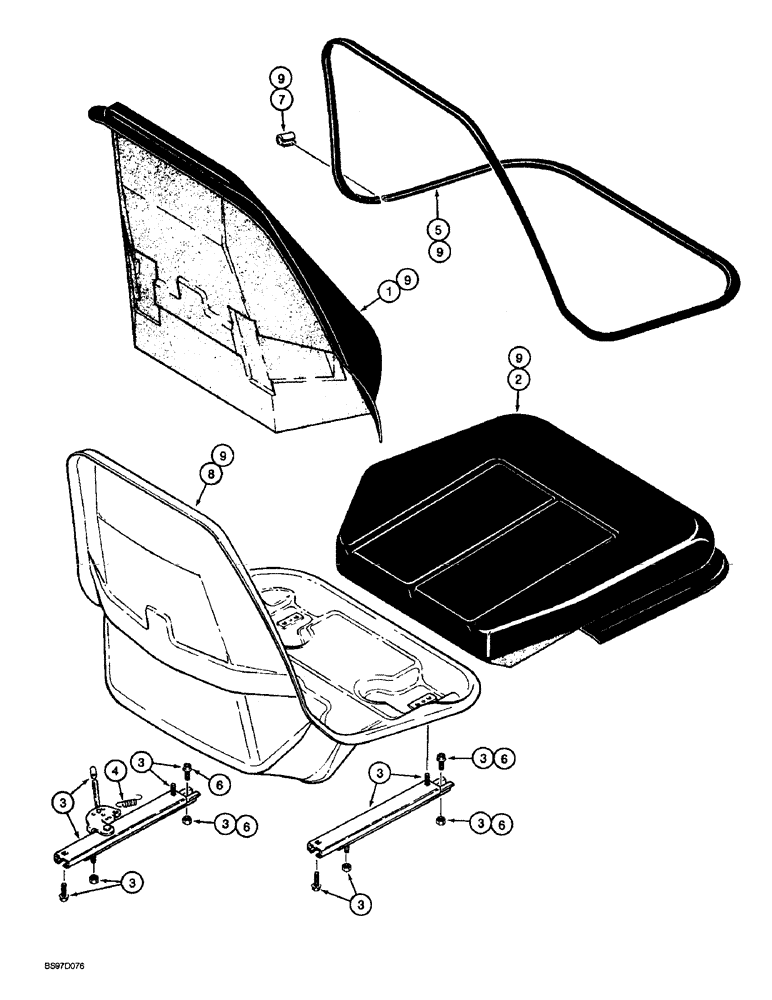

Запчасти Case 580SL (9-086) - STANDARD SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

185156A1

SEAT

ASSEMBLY - standard, gray vinyl, not serviced as a complete assembly, for service order respective component kits, see Figure 9-090 for standard support and pedestal, Includes: Ref. 1 - 6

1шт.

REF 185156A1 CONSISTS OF THE SEAT/A AND PEDESTAL/A. FOR SEAT/A WHICH CONSISTS OF SHELL, CUSHION, BACKREST AND TRIM ORDER 234223A1. FOR PEDESTAL/A ORDER 116764A2. THIS PER THE NOTES IN 3270. BILLY A., CAM 09/13/01

1шт.

1

176926A1

KIT

- backrest cushion, gray

1шт.

2

176925A1

KIT

- seat cushion, gray

1шт.

3

116760A1

KIT

- adjuster, seat slide, fore/aft

1шт.

REF 3, 116760A1 INCLUDES THE SPRING THAT ATTACHES TO ADJUSTER ON THE LH SLIDE MECHANISM. SPRING IS APPROX 3-5/8" LONG. REF 4, 119171A1 DOES NOT INCLUDE THIS SPRING. PER MIKE HARRIS AT VENDOR, THAT SPRING CAN ONLY BE PURCHASED AS PART OF THE 116760A1 KIT, IS NOT SERVICED SEPARATELY. 10/21/98 BW CAM

1шт.

4

119171A1

KIT

- spring, seat adjuster slide, also includes vertical latch and extension springs used in the standard pedestal on Figure 9-090

1шт.

REF 3, 116760A1 INCLUDES THE SPRING THAT ATTACHES TO ADJUSTER ON THE LH SLIDE MECHANISM. SPRING IS APPROX 3-5/8" LONG. REF 4, 119171A1 DOES NOT INCLUDE THIS SPRING. PER MIKE HARRIS AT VENDOR, THAT SPRING CAN ONLY BE PURCHASED AS PART OF THE 116760A1 KIT, IS NOT SERVICED SEPARATELY. 10/21/98 BW CAM

1шт.

5

176924A1

SET OF PARTS

TRIM - edging, gray, Serial Range: cushion-shell

1шт.

6

181169A1

KIT

- cable, fore-aft/swivel mechanism, also includes cable on Figure 9-090

1шт.

181169A1: ONCE HAD A Z-BAR STYLE END ON THE CABLE. IN LATE '94 EARLY '95 MILSCO MADE A CHANGE TO THE CABLE BY USING EYELETS AT EACH END. THE 181169A1 SHOULD INCLUDE INSTRUCTIONS HOW TO CONVERT TO THE EYELET STYLE CABLE. mg 12/19/96

1шт.

7

NSS

NOT SOLD SEPARAT

CLIP - retainer, order N7802 clip kit, see below

1шт.

8

NSS

NOT SOLD SEPARAT

SHELL - seat frame, order 234223A1 shell, cushion and trim kit, Ref 9

1шт.

9

234223A1

SEAT

KIT - seat shell, cushion and trim, includes Ref 1, 2, 5 and 8

1шт.

N7802

CLIP

KIT - clip, includes item 7 clip above, plus 6 additional narrow clips

1шт.
