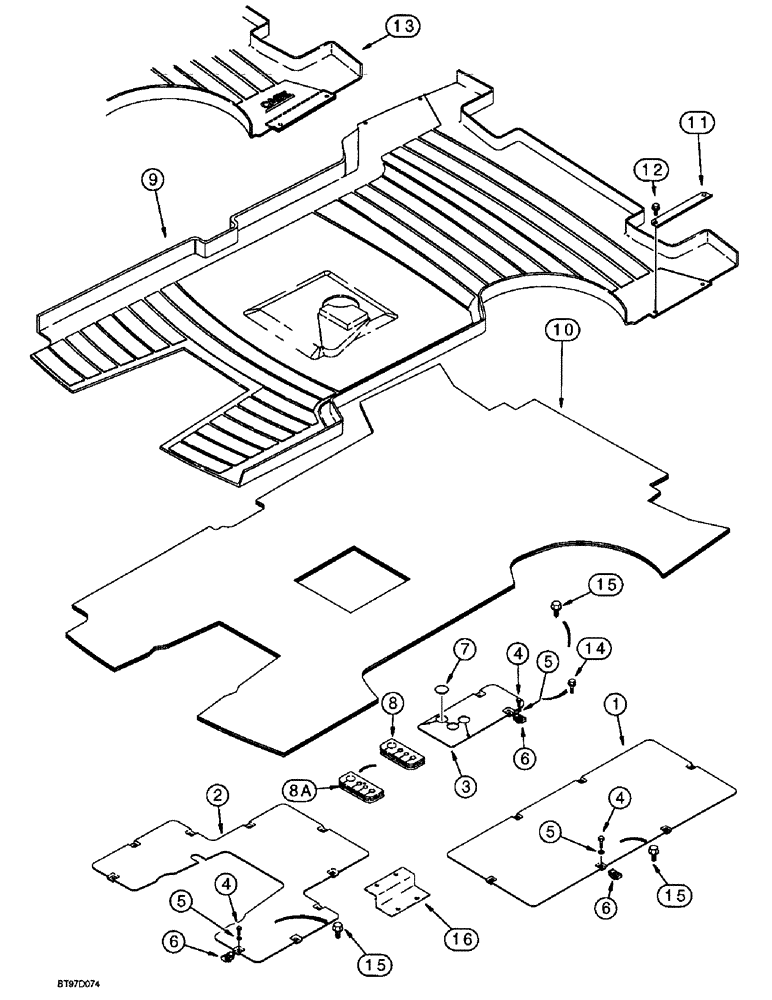

Запчасти Case 580SL (9-076) - FLOOR PLATES AND FLOORMATS (09) - CHASSIS/ATTACHMENTS

1

225099A1

LARGE PLATE

PLATE - floor, front cover, 2.5 mm thick, replaces 121404A1 3 mm thick floor plate

1шт.

2

225100A1

LARGE PLATE

PLATE - floor, rear cover, 2.5 mm thick, replaces 136378A2 3 mm thick floor plate

1шт.

3

127377A1

LARGE PLATE

PLATE - floor, loader control lever mounting

1шт.

4

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, If used

15-19шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

If used M6

15-19шт.

6

833-40406

NUT,M6, U

- U-type, 6 mm - 1.0

19шт.

7

353-422

PLUG,Dome, 1.250" hole, Nylon

Used on models without clam bucket Dome, 1.250" hole, Nylon

1шт.

8

127378A1

RUBBER INSULATOR

GROMMET - rubber, floor, if used

1шт.

8a

127378A2

RUBBER INSULATOR

GROMMET - rubber, floor, if used

1шт.

9

127618A1

FLOOR MAT

FLOORMAT - cab models, used with item 11 stiffener angle, if used

1шт.

If floormat is desired on ROPS canopy models, purchase floormat and modify to fit.

1шт.

10

182296A1

PAD

- foam, floormat

1шт.

11

175110A1

ANGLE BAR

ANGLE - stiffener, floormat, cab models, holds floormat down in cab doorways, used with item 9 floormat, if used

2шт.

12

280-16516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

SCREW - self-tapping, hex washer head, No. 10-16 x 1 inch, if used

4шт.

13

191068A1

FLOOR MAT

FLOORMAT - cab models, includes stiffener plate at doorways, may replace items 9 and 11 on some models

1шт.

If floormat is desired on ROPS canopy models, purchase floormat and modify to fit.

1шт.

14

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

- heavy hex flange, 6-1.0 x 25 mm, replaces bolt and washer (Ref. 4 and 5) on the loader control lever floor plate on some models, if used

4шт.

15

233724A1

FLANGE BOLT,Hex, M6 x 1 x 25mm

BOLT - hex washer, self-aligning, 6-1.0 x 25 mm, used in place of Ref 4, 5, and 14, if used

19шт.

16

223199A1

SUPPORT

BRACKET - mounting, heater hoses, if used

1шт.
