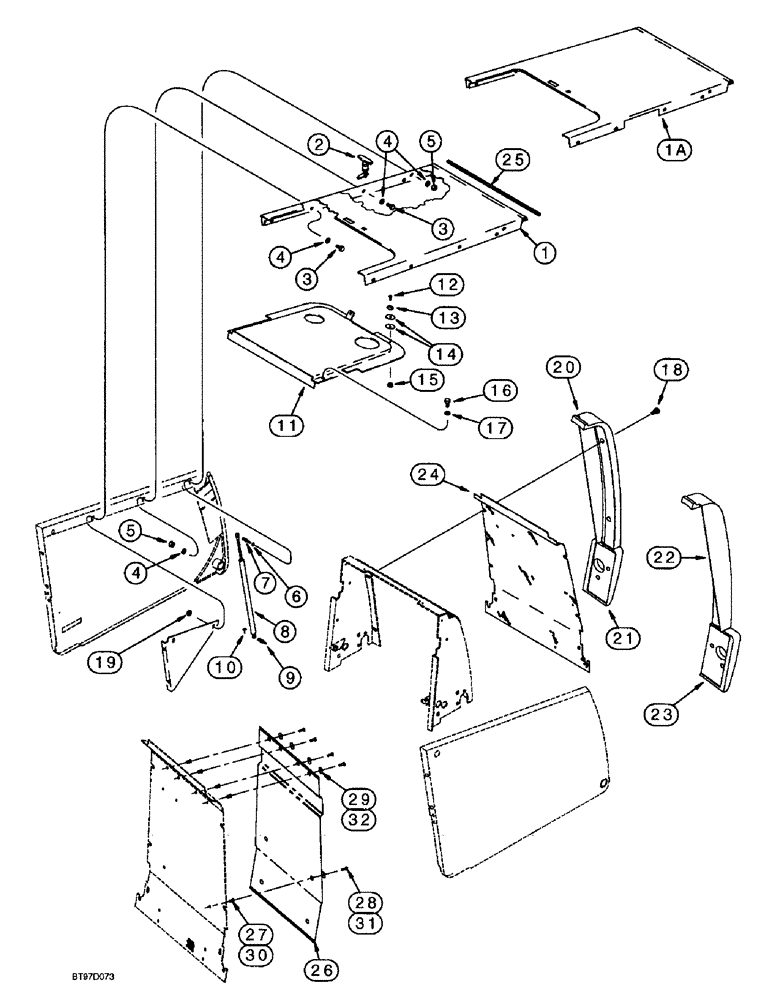

Запчасти Case 580SL (9-074) - TILT HOOD, UPRIGHT COVER, GRILLE UNIT, AND CHAFF SCREEN (09) - CHASSIS/ATTACHMENTS

1

139486A1

HOOD

- engine, tilt, no longer available, order 139486A2 hood

1шт.

1a

139486A2

HOOD

- engine, tilt

1шт.

2

175599A1

LATCH

- hood

1шт.

3

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

10шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

14шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

8шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.

7

139362A1

BALL JOINT

STUD - upper ball, 10 mm-1.5

2шт.

8

114980A1

GAS STRUT

Cylinder - spring, Counterbalance, Hood

2шт.

9

139363A1

BALL JOINT,M10 x 1.5mm x 42mm L

STUD - lower ball

2шт.

10

F44883

CLIP,DIN 71805 - S10

RETAINER - lock, ball stud retainer

4шт.

11

144633A1

HOOD

COVER - chassis upright

1шт.

12

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan Phillips, No. 10 NC x 3/4 inch

2шт.

13

109879A1

SPACER,5.5mm ID x 30mm OD

- plastic, hood spacer

2шт.

14

185325A1

SPACER,5.5mm ID x 30mm OD x 2mm L

WASHER - spacer

4-12шт.

15

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

16

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

4шт.

18

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT - hex washer, special, 10-1.5 x 30 mm

8шт.

19

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

- hex flange, 10 mm - 1.5

4шт.

20

139502A1

PROTECTOR

BUMPER - grille, left-hand upper

1шт.

21

244287A1

PROTECTOR

BUMPER - grille, left-hand lower, replaces 133589A1 bumper

1шт.

22

139500A1

PROTECTOR

BUMPER - grille, right-hand upper

1шт.

23

244286A1

PROTECTOR

BUMPER - grille, right-hand lower, replaces 133591A1 bumper

1шт.

24

229398A2

SIEVE

GRILLE - radiator shroud, replaces 139499A1 and 229398A1 grilles, see Figure 9-138 for Case emblem

1шт.

CASE EMBLEM FOR GRILLE IS 186989A1

1шт.

25

194758A1

SEALING STRIP,20mm W x 560mm L x 6mm Thk

- foam, adhesive-backed, 20 (25/32) x 560 (22-3/64) x 6 mm (1/4 inch), if used

1шт.

25

233262A1

SEALING STRIP,20mm W x 596mm L x 6mm Thk

- foam, adhesive-backed, 20 (25/32) x 596 (23-15/32) x 6 mm (1/4 inch), with or without air conditioning, if used

1шт.

26

253889A1

SCREEN

- chaff

1шт.

IF DEALER IS LOOKING TO " ADD" A SCREEN TO HIS UNIT, HE NEEDS TO ORDER THE SCREEN KIT 255553A1.

1шт.

27

255447A1

THREADED INSERT

INSERT, THREADED, 1/4", if used

10шт.

For proper installation of the inserts, use CAS-2491 for 255447A1 or CAS-2492 for 255687A1. Instructions for tool use is included with the tool.

1шт.

28

257381A1

BOLT

BOLT - hex, 1/4 NC x 3/4 inch, if used

8шт.

29

257382A1

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

- flat, 1/4 inch, if used

8шт.

30

255687A1

RIVET

INSERT - threaded, No. 10, if used

10шт.

For proper installation of the inserts, use CAS-2491 for 255447A1 or CAS-2492 for 255687A1. Instructions for tool use is included with the tool.

1шт.

31

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

If used Cross Pan Hd, #10-24 x 3/4"

8шт.

32

185325A1

SPACER,5.5mm ID x 30mm OD x 2mm L

WASHER - spacer, flat, No. 10, if used

8шт.
