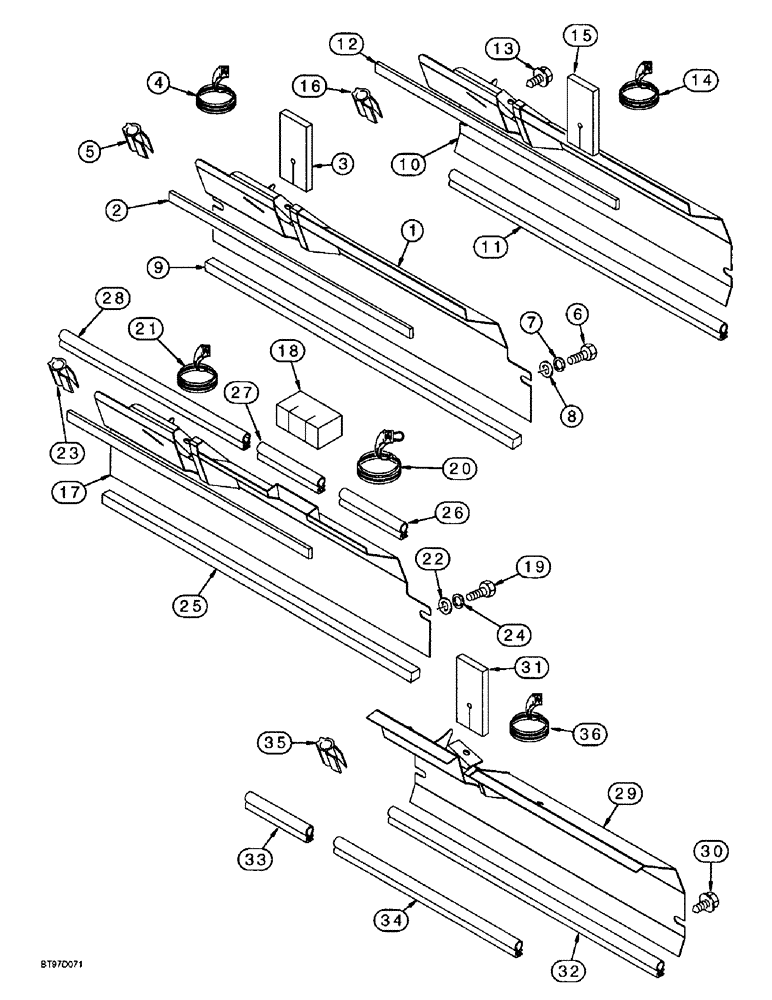

Запчасти Case 580SL (9-071C) - BAFFLE PLATES AND SEALS, WITH AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS

1

178718A3

LARGE PLATE

PLATE - baffle, if used

1шт.

2

194758A1

SEALING STRIP,20mm W x 560mm L x 6mm Thk

- foam, adhesive-backed, 20 (25/32) x 560 (22-3/64) x 6 mm (1/4 inch), cut into two, Serial Range: pieces-fit

1шт.

3

136278A2

LARGE PLATE

SEAL - foam, adhesive-backed

1шт.

4

D36179

LINING

TRIM - edge, 108 mm (4-1/2 inch) long, cut from F42827 bulk trim

1шт.

5

185493A1

SEAL

TRIM - edge, 160 mm (6-5/16 inch) long, cut from 137315A1 bulk trim

2шт.

6

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

7

892-11010

LOCK WASHER,M10

2шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.

9

233263A1

SEAL

- foam, adhesive-backed, 20 (25/32) x 20 (25/32) x 600 mm (23-5/8 inch) long

1шт.

10

242577A1

LARGE PLATE

PLATE - baffle, no longer available, order 277662A1 plate, Ref 29

1шт.

11

245450A1

RUBBER SEAL,571mm L

TRIM - edge, 571 mm (22-1/2 inch) long

1шт.

12

194758A1

SEALING STRIP,20mm W x 560mm L x 6mm Thk

- foam, adhesive-backed, 20 (25/32) x 560 (22-3/64) x 6 mm (1/4 inch)

1шт.

13

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT - hex washer, special, 10-1.5 x 30 mm

2шт.

14

D36179

LINING

TRIM - edge, 108 mm (4-1/2 inch) long, cut from F42827 bulk trim

1шт.

15

136278A2

LARGE PLATE

SEAL - foam, adhesive-backed

1шт.

16

185493A1

SEAL

TRIM - edge, 160 mm (6-5/16 inch) long, cut from 137315A1 bulk trim

2шт.

252695A1

PROTECTOR

KIT - baffle plate, heavy duty, if used, Includes: Ref. 17 - 28

1шт.

17

251377A2

DEFLECTOR

PLATE - baffle, heavy duty, if used

1шт.

18

251442A1

SEAL

- foam, adhesive-backed

1шт.

19

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

20

252655A1

SEAL

TRIM - edge, 85 mm (3-11/32 inch) long

2шт.

21

D36179

LINING

TRIM - edge, 108 mm (4-1/2 inch) long, cut from F42827 bulk trim

1шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.

23

185493A1

SEAL

TRIM - edge, 160 mm (6-5/16 inch) long, cut from 137315A1 bulk trim

2шт.

24

892-11010

LOCK WASHER,M10

2шт.

25

233263A1

SEAL

- foam, adhesive-backed, 20 (25/32) x 20 (25/32) x 600 mm (23-5/8 inch) long

1шт.

26

252329A1

SEAL

TRIM - edge, 142 mm (5-19/32 inch) long

1шт.

27

252337A1

SEAL

TRIM - edge, 142 mm (5-19/32 inch) long

1шт.

28

252339A1

SEAL

TRIM - edge, 235 mm (9-1/4 inch) long

1шт.

29

277662A1

LARGE PLATE

PLATE - baffle, standard radiator, if used

1шт.

29

245011A1

LARGE PLATE

PLATE - baffle, heavy duty radiator, if used

1шт.

30

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT - hex washer, special, 10-1.5 x 30 mm

2шт.

31

136278A2

LARGE PLATE

SEAL - foam, adhesive-backed

1шт.

32

245450A1

RUBBER SEAL,571mm L

TRIM - edge, 571 mm (22-1/2 inch) long

1шт.

33

246063A1

SEAL

TRIM - edge, 170 mm (6-11/16 inch) long, cut from 233749A1 bulk trim

1шт.

34

246064A1

SEAL

TRIM - edge, 365 mm (14-3/8 inch) long, cut from 233749A1 bulk trim

1шт.

35

185493A1

SEAL

TRIM - edge, 160 mm (6-5/16 inch) long, cut from 137315A1 bulk trim

2шт.

36

D36179

LINING

TRIM - edge, 108 mm (4-1/2 inch) long, cut from F42827 bulk trim

1шт.

F42827

TRIM,2946.4mm L

TRIM - edge, bulk, 2946 mm (116 inch) long

1шт.

137315A1

SEAL,899.6mm L

TRIM - edge, bulk, 900 mm (35-7/16 inch) long

1шт.

233749A1

SEAL

TRIM - edge, bulk, 76200 mm (3000 inch or 250 feet) long

1шт.
