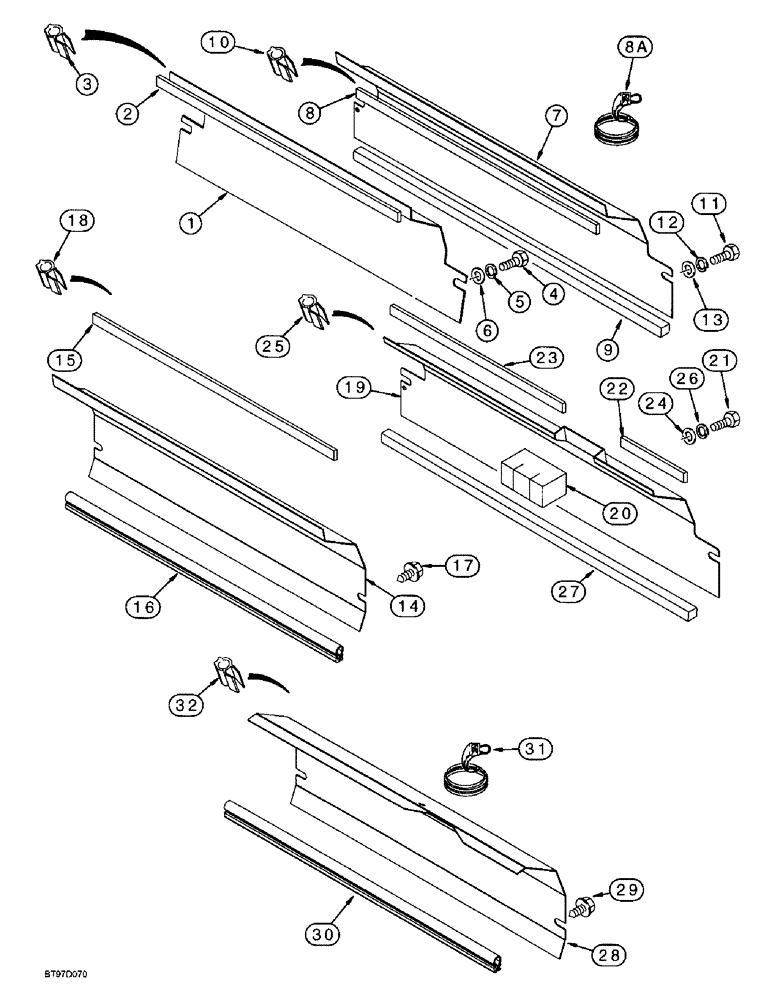

Запчасти Case 580SL (9-071A) - BAFFLE PLATES AND SEALS, WITHOUT AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS

1

194151A1

LARGE PLATE

PLATE - baffle, no longer available, order 121942A3 plate below and 895-11008 washer and 829-1408 nut on Figure 4-40 for horn mounting

1шт.

2

194758A1

SEALING STRIP,20mm W x 560mm L x 6mm Thk

- foam, adhesive-backed, 20 (25/32) x 560 (22-3/64) x 6 mm (1/4 inch)

1шт.

3

185493A1

SEAL

TRIM - edge, 160 mm (6-5/16 inch) long, cut from 137315A1 bulk trim

2шт.

4

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

5

892-11010

LOCK WASHER,M10

2шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.

7

121942A3

LARGE PLATE

PLATE - baffle, if used

1шт.

Part of Baffle Plate Kit, P/N 254274A1

1шт.

8

194758A1

SEALING STRIP,20mm W x 560mm L x 6mm Thk

- foam, adhesive-backed, 20 (25/32) x 560 (22-3/64) x 6 mm (1/4 inch), if used

1шт.

8a

253674A1

SEAL

TRIM - edge, 610 mm (24 inch) long, if used

1шт.

Part of Baffle Plate Kit, P/N 254274A1

1шт.

9

233263A1

SEAL

- foam, adhesive-backed, 20 (25/32) x 20 (25/32) x 600 mm (23-5/8 inch) long

1шт.

Part of Baffle Plate Kit, P/N 254274A1

1шт.

10

185493A1

SEAL

TRIM - edge, 160 mm (6-5/16 inch) long, cut from 137315A1 bulk trim

2шт.

Part of Baffle Plate Kit, P/N 254274A1

1шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

12

892-11010

LOCK WASHER,M10

2шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.

14

229682A1

LARGE PLATE

PLATE - baffle, no longer available, order 241172A1 plate, Ref 28

1шт.

15

194758A1

SEALING STRIP,20mm W x 560mm L x 6mm Thk

- foam, adhesive-backed, 20 (25/32) x 560 (22-3/64) x 6 mm (1/4 inch)

1шт.

16

245450A1

RUBBER SEAL,571mm L

TRIM - edge, 571 mm (22-1/2 inch) long

1шт.

17

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT - hex washer, special, 10-1.5 x 30 mm

2шт.

18

185493A1

SEAL

TRIM - edge, 160 mm (6-5/16 inch) long, cut from 137315A1 bulk trim

2шт.

254273A1

PLATE ASSY.

KIT - baffle plate, heavy duty, if used, Includes: Ref. 19 - 27

1шт.

19

251379A1

LARGE PLATE

PLATE - baffle, heavy duty, if used

1шт.

20

251442A1

SEAL

- foam, adhesive-backed

1шт.

21

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

22

252329A1

SEAL

TRIM - edge, 142 mm (5-19/32 inch) long

1шт.

23

253316A1

SEAL

TRIM - edge, 379 mm (14-15/16 inch) long

1шт.

24

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.

25

185493A1

SEAL

TRIM - edge, 160 mm (6-5/16 inch) long, cut from 137315A1 bulk trim

2шт.

26

892-11010

LOCK WASHER,M10

2шт.

27

233263A1

SEAL

- foam, adhesive-backed, 20 (25/32) x 20 (25/32) x 600 mm (23-5/8 inch) long

1шт.

28

241172A1

LARGE PLATE

PLATE - baffle, standard radiator, if used

1шт.

28

277502A1

LARGE PLATE

PLATE - baffle, heavy duty radiator, if used

1шт.

29

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT - hex washer, special, 10-1.5 x 30 mm

2шт.

30

245450A1

RUBBER SEAL,571mm L

TRIM - edge, 571 mm (22-1/2 inch) long

1шт.

31

277664A1

SEAL,575mm L

TRIM - edge, 575 mm (22-5/8 inch) long

1шт.

32

185493A1

SEAL

TRIM - edge, 160 mm (6-5/16 inch) long, cut from 137315A1 bulk trim

2шт.

137315A1

SEAL,899.6mm L

TRIM - edge, bulk, 900 mm (35-7/16 inch) long

1шт.

254274A1

PLATE

KIT - baffle plate, without air conditioning, standard, Includes: Ref. 7, 8A, 9, and 10

1шт.
