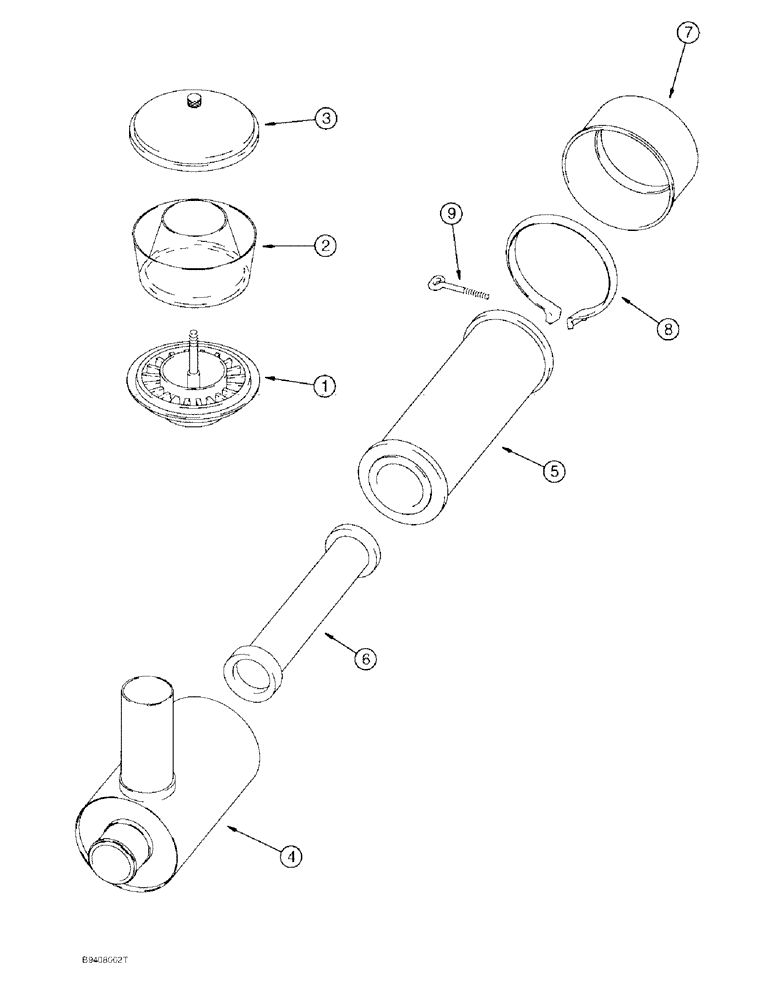

Запчасти Case 580SL (2-08) - AIR CLEANER AND PRECLEANER ASSEMBLIES (02) - ENGINE

193867A1

PRECLEANER

ASSEMBLY - air, replaces A24391 precleaner, Includes: Ref. 1 - 3A

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - precleaner

1шт.

2

365413R1

BOWL

- precleaner

1шт.

3

365412R91

COVER

- precleaner

1шт.

3a

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - adj, 2-9/16 - 3-1/2 inch dia, not shown, 193867A1 precleaner

1шт.

128783A1

AIR CLEANER

CLEANER ASSEMBLY - air, engine, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING - air cleaner

1шт.

5

128781A1

AIR FILTER

ELEMENT - primary

1шт.

6

128782A1

AIR FILTER

ELEMENT - secondary

1шт.

7

142540A1

FILTER COVER

COVER - end

1шт.

8

142539A1

CLAMP,168.28mm

- air cleaner, housing to end cover

1шт.

9

L30338

BOLT,Band Clamp Wing, 1/4" - 20 x 3.875", Gr 2

- eye, special

1шт.
