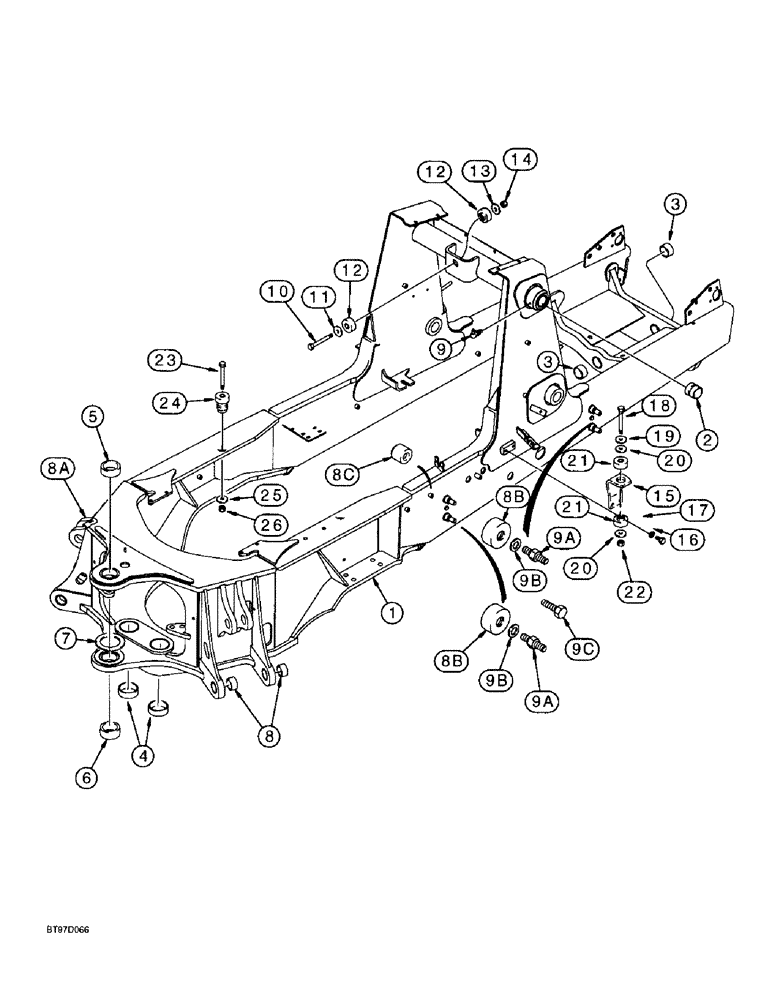

Запчасти Case 580SL (9-064) - CHASSIS AND OPERATOR COMPARTMENT POD MOUNTS (09) - CHASSIS/ATTACHMENTS

1

243417A1

CHASSIS

- loader backhoe, integral, replaces 108603A1 chassis, Includes: Ref. 2 - 8C

1шт.

2

180427A1

BUSHING,50.23mm ID x 60mm OD x 52.4mm L

- loader frame pivot, chassis

2шт.

3

D127542

BUSHING,50.2mm ID x 60mm OD x 30mm L

- front axle pivot, chassis

2шт.

4

114318A1

BUSHING,80.19mm ID x 90mm OD x 29.35mm L

- 80 mm ID, swing cylinder pivot, replaces 192559A1 bushing in both the top and bottom swing cylinder plater, chassis

2шт.

5

D151069

BUSHING,70.19mm ID x 90mm OD x 32mm L

- 70 mm ID, upper, backhoe frame, swing tower mounting, chassis

1шт.

6

D151070

BUSHING,70.19mm ID x 90mm OD x 38mm L

- 70 mm ID, lower, backhoe frame, swing tower mounting, chassis

1шт.

7

D144112

SPACER

- 93 x 135 x 6.5 mm, bearing, welds to frame, 108603A1 chassis

1шт.

7

220413A1

SPACER,93mm ID x 135mm OD x 5mm Thk

- 93 x 135 x 5 mm, bearing, welds to frame, 243417A1 chassis

1шт.

8

107124A1

BUSHING,44.75mm ID x 57.15mm OD x 29mm L

- lower, side, backhoe frame, at stabilizer leg mounting, chassis

4шт.

8a

D88417

CAGE ASSY.

CAGE - nut, welded to chassis frame

1шт.

8b

185927A1

BOSS

- 20 mm, tank mounting, welded to chassis frame

4шт.

8c

185356A1

BOSS

- 10 mm, welded to chassis frame

7шт.

9

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Loader frame pivot, chassis 90º, 1/8" NPT x .84" lg

2шт.

9a

253737A1

STUD,M20 - 2.5 x 89mm

BOLT - special, if used, chassis

8шт.

9b

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

- flat, 22 x 37 x 4 mm, hardened, if used, chassis

8шт.

9c

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

If used, chassis Hex, M12 x 35, 8.8, Full Thd

4шт.

10

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

- hex, 16-2.0 x 110 mm, class 10.9, Operator compartment pod mounts

1шт.

11

495-81259

WASHER,21/32" x 2" x .238"

- flat, 21/32 x 2 x 1/4 inch, operator compartment pod mounts

1шт.

12

D138565

SHOCK ABSORBER

INSULATOR - mounting, frame, upper, firewall, operator compartment pod mounts

2шт.

13

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

- flat, special, operator compartment pod mounts

1шт.

14

829-1416

NUT,M16, Cl 10

- hex, 16 mm-2.0, class 10, Operator compartment pod mounts

1шт.

15

141249A1

SUPPORT

BRACKET - mounting, frame, right-hand and left-hand, operator compartment pod

2шт.

16

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd, Operator compartment pod mounts Hex, M12 x 30, 10.9

4шт.

17

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Operator Compartment Pod Mounts M13.5 x 24.5 x 3, HT

4шт.

18

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

- hex, 16-2.0 x 110 mm, class 10.9, Operator compartment pod mounts

2шт.

19

495-81259

WASHER,21/32" x 2" x .238"

- flat, 21/32 x 2 x 1/4 inch, operator compartment pod mounts

2шт.

20

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

- flat, special, operator compartment pod mounts

4шт.

21

D138565

SHOCK ABSORBER

INSULATOR - mounting, frame, lower, front, operator compartment pod mounts

4шт.

22

829-1416

NUT,M16, Cl 10

- hex, 16 mm-2.0, class 10, Operator compartment pod mounts

2шт.

23

180578A1

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

BOLT - special, operator compartment pod mounts

2шт.

24

A141451

SHOCK ABSORBER

MOUNT - rubber, frame, rear, operator compartment pod mounts

2шт.

A141451 was replaced by 344777A1 and R49921 (See INF4723). The two pieces are less flexible than the one piece mounts. They were first installed in production on 11/9/98. DJS-TSG 1/28/99.

1шт.

25

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

- flat, special, operator compartment pod mounts

2шт.

26

829-1416

NUT,M16, Cl 10

- hex, 16 mm-2.0, class 10, Operator compartment pod mounts

2шт.

341956A1

KIT

chassis upright repair, LH plate

1шт.

341957A1

KIT

chassis upright repair, RH plate

1шт.

341955A1

BOSS

KIT chassis upright repair, boss, LH or RH

1шт.

341960A1

BOSS

KIT chassis upright repair, boss puller

1шт.
